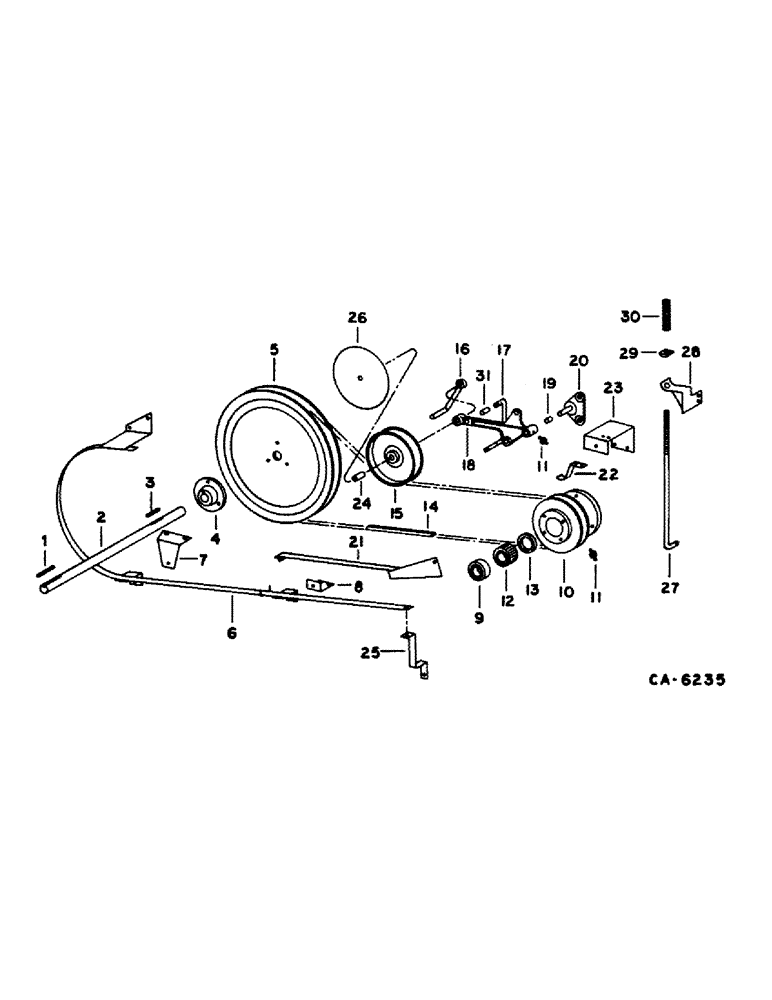

Запчасти Case IH 1480 (26-14) - GRAIN TANK, GRAIN TANK UNLOADER, BELT DRIVE Grain Tank

1

586879R1

KEY

5/16 x 51/6 x 2.0 sq. parallel

2шт.

2

192896C1

SHAFT

vertical auger

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

478258R1

WASHER

1.156 x 1.750 x .105

1шт.

3

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 x 5/16 x 1.75 sq. parallel

1шт.

4

192882C1

HUB

jackshaft driven pulley

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 znp sq/hd C/PT set

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

192967C1

PULLEY ASSY.

PULLEY ASSY, unloader jackshaft driven, 18.6 in. OD, 472.4mm OD

1шт.

6

192929C2

GUIDE

ASSY, unloader belt

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

7

192870C1

SUPPORT

belt guide lower front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

8

195405C1

SUPPORT

belt guide center

1шт.

9

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, pump drive pulley

1шт.

10

192620C91

PULLEY

ASSY, auxiliary pump drive, includes ref nos. 9, 12 and 13

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-8 str self tap, lub

1шт.

12

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

BEARING, pump drive pulley rear

1шт.

13

466176R92

SEAL

rear pulley bearing

1шт.

14

191291C1

BELT,0.879" W x 142.79" L

V-BELT , Unloader jackshaft drive, OC 0.879" W x 142.79" L

1шт.

15

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, unloader belt tightener, 8.75 in. OD, 222.3mm OD

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

1шт.

16

194894C1

ROD

unloader belt upper

1шт.

17

193820C1

ROD

unloader belt upper

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

18

185059C92

ARM ASSY.

ARM ASSY, unloader belt tightener, includes ref nos. 19 and 31

1шт.

19

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

unloader belt tightener arm

2шт.

20

191465C1

SUPPORT

unloader tightener arm

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

366112R1

WASHER

.781 x 1.250 x .105

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

21

193759C1

SUPPORT

ASSY, upper belt guide

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 znd type 5

1шт.

231-1448

NUT,1/2"-13, GB

1/2 P/T lock type 5

1шт.

22

193627C1

SUPPORT

unloader belt trap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

23

194493C1

CHANNEL

upper belt guide inner

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

24

568005R1

SPACER,7/8" Tube x 1 3/8"

belt tightener shield

1шт.

25

192931C1

ANGLE

belt guide lower rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

26

186483C1

GUARD ASSY.

SHIELD ASSY, unloader belt tightener pulley

1шт.

27

185061C1

ROD

unloader belt tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

28

185070C1

SUPPORT

unloader arm spring

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

194652C1

PIVOT

belt tightener rod

1шт.

30

391745R1

SPRING

unloader tightener arm

1шт.

31

1302225C1

BUSHING

unloader belt tightener arm

1шт.
