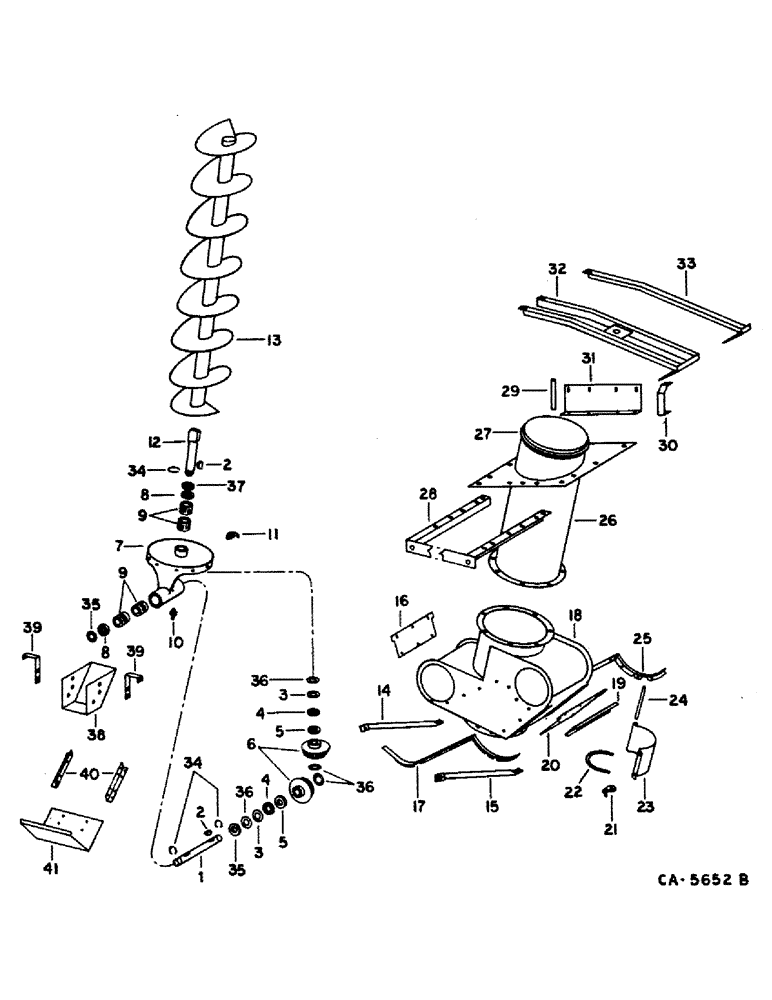

Запчасти Case IH 1480 (26-09) - GRAIN TANK, GRAIN TANK UNLOADER LOWER Grain Tank

1

1327738C2

SHAFT

horizontal auger gear case, replaces 192790C1

1шт.

2

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

3

T40036

WASHER, THRUST,34.98mm ID x 52.12mm OD x 0.81mm Thk

use w/housing 193702C91

2шт.

3

1327731C1

THRUST WASHER

WASHER, thrust, use w/housing 1327976C91

2шт.

4

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

horizontal auger and vertical shaft thrust

2шт.

5

607147R1

WASHER

use w/housing 193702C91

2шт.

5

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

thrust, use w/housing 1327976C91

6шт.

6

186517C1

GEAR-SET

GEAR SET, vertical auger lower, consists of gear, driver, 28 T (NSS), gear, driven, 21 T (NSS)

1шт.

7

1327976C91

HOUSING

ASSY, auger drive, includes ref. nos. 8 and 9, replaces 193702C92 by also ordering 6 washers 1327732C1 and 2 washers 1327731C1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

8

157724C91

OIL SEAL

auger drive oil

2шт.

9

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING, shaft support needle

4шт.

10

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 pipe spec thd 45 deg

1шт.

12

188107C1

SHAFT

unloader vertical auger, Serial Range: -1500

1шт.

12

1327739C1

SHAFT

unloader vertical auger, replaces 183489C2, Start Serial: 1501

1шт.

13

192835C1

AUGER

ASSY, unloader vertical

1шт.

14

191111C1

ROD

drive housing front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

15

191112C1

ROD

drive housing rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

16

191087C1

PLATE

BAR, grain tank bottom auger front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

17

192828C1

SUPPORT

auger housing LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

18

192475C3

HOUSING

ASSY, unloader lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

151670C1

SHIM

5шт.

19

192834C1

CHANNEL

vertical support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

191110C1

COVER

grain tank bottom rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

155909C1

LATCH

unloader lower door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

22

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT, lower auger door, U-bolt

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 P/T lock type 5

1шт.

23

195329C1

FLAP

DOOR ASSY, unloader lower auger

1шт.

24

393069R1

PIN,6.35mm OD x 147.3mm L

lower auger door

1шт.

25

192829C1

SUPPORT

auger housing RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

26

192830C92

TUBE

ASSY, vertical auger, includes ref. no. 27

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

27

178134C2

RING

unloader tube upper

1шт.

The 12 rivets that go with this item was P/N 106900. This is retired, but dealer can order 445-414 and cut off the end.

1шт.

28

192849C1

SUPPORT

ASSY, vertical auger

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

29

195400C1

SPACER

PIPE, unloader tube support

1шт.

25759R1

BOLT,Hex, 3/8" - 16 x 7 1/2", Gr 8

3/8 x 7-1/2 PHC type 8

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

30

188330C1

SUPPORT ASSY.

SUPPORT ASSY, tank top rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

31

191189C1

SUPPORT

unloader

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

32

191126C1

SUPPORT

ASSY, unloader tube cylinder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

33

186112C1

SUPPORT ASSY.

SUPPORT ASSY, cylinder RH rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

34

A21619

CIRCLIP

RING, horizontal and vertical shaft snap

3шт.

35

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.406 x 2.25 x .12, hard

1шт.

36

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

1.406 x 2.00 x .03, hard

1шт.

37

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.406 x 2.25 x .12, hard

1шт.

37

183490C1

WASHER

WASHER, vertical shaft

1шт.

38

186137C2

SUPPORT

unloader drive gears

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

39

186138C1

SUPPORT

unloader drive gear

2шт.

40

185026C1

ANGLE

unloader drive shield, Serial Range: -1500

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

41

185027C1

SHIELD

unloader drive, Serial Range: -1500

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
