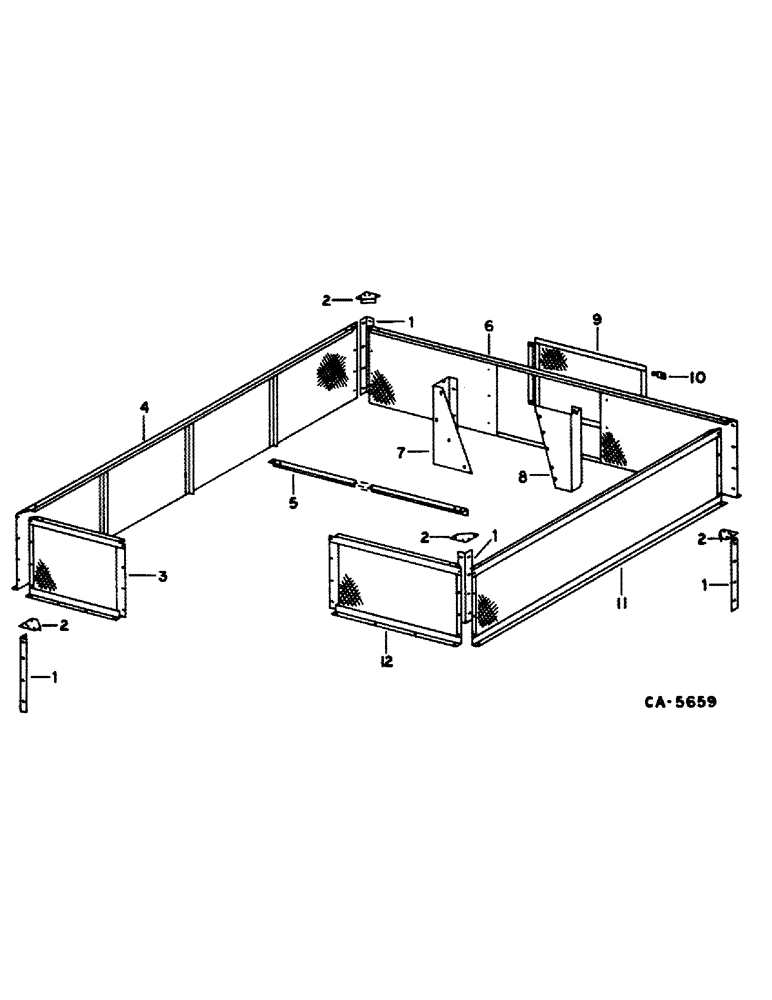

Запчасти Case IH 1480 (26-05) - GRAIN TANK, GRAIN TANK EXTENSIONS, GRAIN, CORN AND RICE Grain Tank

1

188003C1

ANGLE

extension corner, for grain and corn

4шт.

1

195387C1

ANGLE

extension corner, for rice, for grain and corn with raised level auger

4шт.

2

191134C1

SUPPORT

extension

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

3

195468C2

RISER

SCREEN ASSY, left front extension, for grain and corn

1шт.

3

195367C2

EXTENSION ASSY.

SCREEN ASSY, left front extension, for rice, for grain and corn with raised level auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

4

195462C1

SCREEN

ASSY, front extension, for grain and corn

1шт.

4

195357C1

SCREEN

ASSY, front extension, for rice, for grain and corn with raised level auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

5

195391C1

ANGLE

extension cross

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

6

195473C2

EXTENSION

SCREEN ASSY, RH extension, for grain and corn

1шт.

6

1308947C2

GRATE

SCREEN ASSY, RH extension, for rice, for grain and corn with raised level auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

7

188004C1

SHIELD

elevator front, for grain and corn

1шт.

7

1309360C1

SUPPORT

SHIELD, elevator front, for rice, for grain and corn with raised level auger

1шт.

8

188005C1

SHIELD

elevator rear, for grain and corn

1шт.

8

1309361C2

SUPPORT

SHIELD, elevator rear, for rice, for grain and corn with raised level auger

1шт.

9

195477C2

SCREEN

ASSY, elevator door, for grain and corn

1шт.

9

195382C2

EXTENSION

SCREEN ASSY, elevator door, for rice, for grain and corn with raised level auger

1шт.

10

167800C1

CLIP

door retainer

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

no. 10 x 1/2 r/hds mach

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 p/hds mach

1шт.

11

195466C3

SCREEN

ASSY, rear extension, for grain and corn

1шт.

11

195363C3

SCREEN

ASSY, rear extension, for rice, for grain and corn with raised level auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

12

195471C2

SCREEN

ASSY, left rear extension, for grain and corn

1шт.

12

195372C2

EXTENSION ASSY.

SCREEN ASSY, left rear extension, for rice, for grain and corn with raised level auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.
