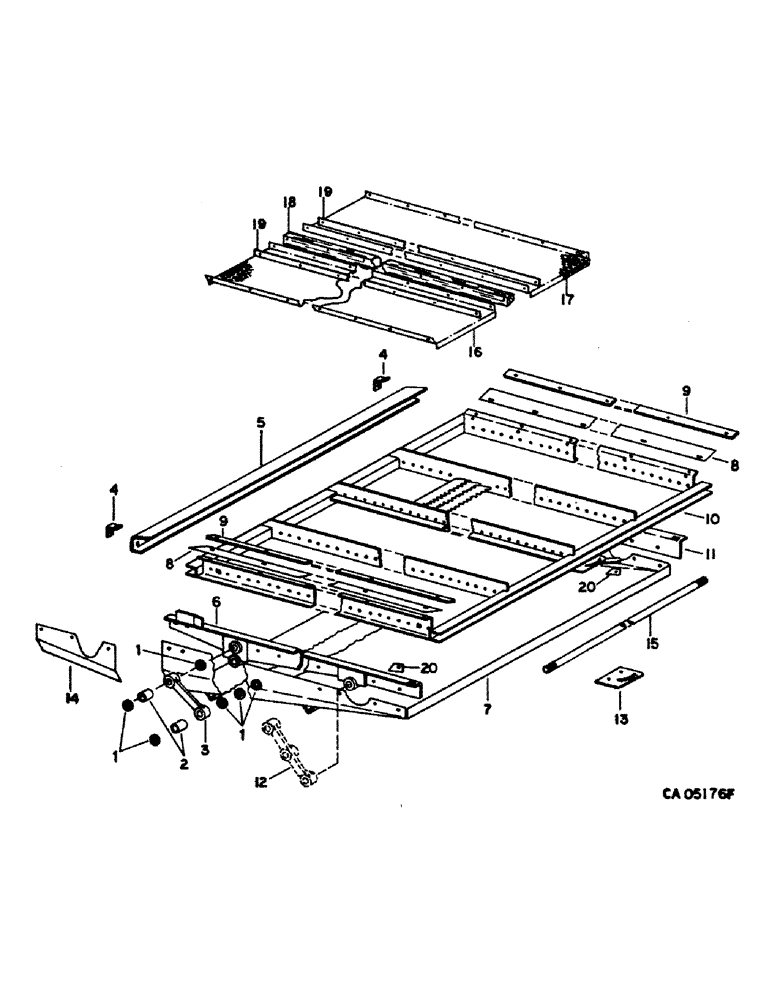

Запчасти Case IH 1480 (23-05) - AUGER BED, SHOE AND SHOE SIEVE, SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

shoe hanger arm bushing

12шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm

4шт.

3

175160C91

LEVER

HANGER ASSY, shoe front, includes ref. no. 2

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 PHC P/T lock type 8

1шт.

4

185498C2

CLIP

shoe front support, Serial Range: -14000

2шт.

4

182684C2

CLIP

shoe front retainer, Start Serial: 14001

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

1319239C1

ANGLE

shoe front, furnish package 1300137C92, Serial Range: -14000

1шт.

5

1319239C1

ANGLE

shoe front, furnish package 1300137C92, Start Serial: 14001

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1302070C3

SUPPORT

ASSY, shoe side LH, two position, furnish package 1300137C92, Serial Range: -14000

1шт.

6

1302070C3

SUPPORT

ASSY, shoe side LH, two position, furnish package 1300137C92, Start Serial: 14001

1шт.

7

1319209C1

BOTTOM

ASSY, shoe, replaces 191941C1, furnish package 1319274C91, Serial Range: -34000

1шт.

7

1319209C1

BOTTOM

ASSY, shoe, replaces 191941C1, furnish package 1319274C91, Start Serial: 34001

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

192192C1

SEALING STRIP

shoe sieve

2шт.

9

192193C1

BAR

shoe sieve seal

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

10

193960C2

SIEVE

ASSY, shoe, includes ref no. 13

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

10

186820C2

GRAIN SIEVE

SIEVE, shoe 1/10 rd holes, parts accessory

1шт.

10

186821C2

GRAIN SIEVE

SIEVE, shoe 7/32 rd holes, parts accessory

1шт.

10

186822C2

GRAIN SIEVE

SIEVE, shoe 3/8 rd holes, parts accessory

1шт.

10

186823C2

GRAIN SIEVE

SIEVE, shoe 1/2 rd holes, parts accessory

1шт.

10

1302233C2

GRAIN SIEVE

SIEVE, shoe 1-5/8 cloz slat, parts accessory

1шт.

11

1302071C3

SUPPORT

ASSY, shoe side RH, two position, furnish package 1300137C92, Serial Range: -14000

1шт.

11

1302071C3

SUPPORT

ASSY, shoe side RH, two position, package 1300137C92, Start Serial: 14001

1шт.

12

LEVER ASSY, shoe, refer to this group under chaffer sieve

1шт.

13

186675C1

ADJUSTING PLATE

shoe lever

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2 crg type 5

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

14

1302335C2

SUPPORT

forward shoe LH

1шт.

14

1302336C2

SUPPORT

forward shoe RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

1319216C1

ROD

return pan rear bottom

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

16

1319282C1

SCREEN

perforated side section, for use w/193960C2 sieve

2шт.

17

1319283C1

SCREEN

perforated mid section, for use w/193960C2 sieve

4шт.

18

1319284C1

BAR

wood spacer, for use w/193960C2 sieve

1шт.

19

1319300C1

BAR

screen fastener backing, for use w/193960C2 sieve

10шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

1319219C1

PLATE

BAR, shoe return pan filler

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300137C93

PACKAGE,SERVICE

PACKAGE ASSY, LH & RH shoe supports, for converting to 2 position, includes ref nos. 4, 5, 6 & 11

1шт.

1319277C91

PACKAGE

alfalfa, consists of

1шт.

1319300C1

BAR

10шт.

1319284C1

BAR

1шт.

1319282C1

SCREEN

2шт.

1319283C1

SCREEN

4шт.

1319239C1

ANGLE

SUPPORT

1шт.

1319259C1

COVER

SUPPORT, hardware instructions (NSS)

1шт.

1319274C91

FENDER

PACKAGE ASSY, shoe return with increased slope, consists of, Serial Range: -34000

1шт.

1319209C1

BOTTOM

ASSY, shoe return pan

1шт.

1319216C1

ROD

return pan bottom rear

1шт.

1302335C2

SUPPORT

forward shoe return, LH

1шт.

1302336C2

SUPPORT

forward shoe return, RH hardware instructions (NSS)

1шт.
