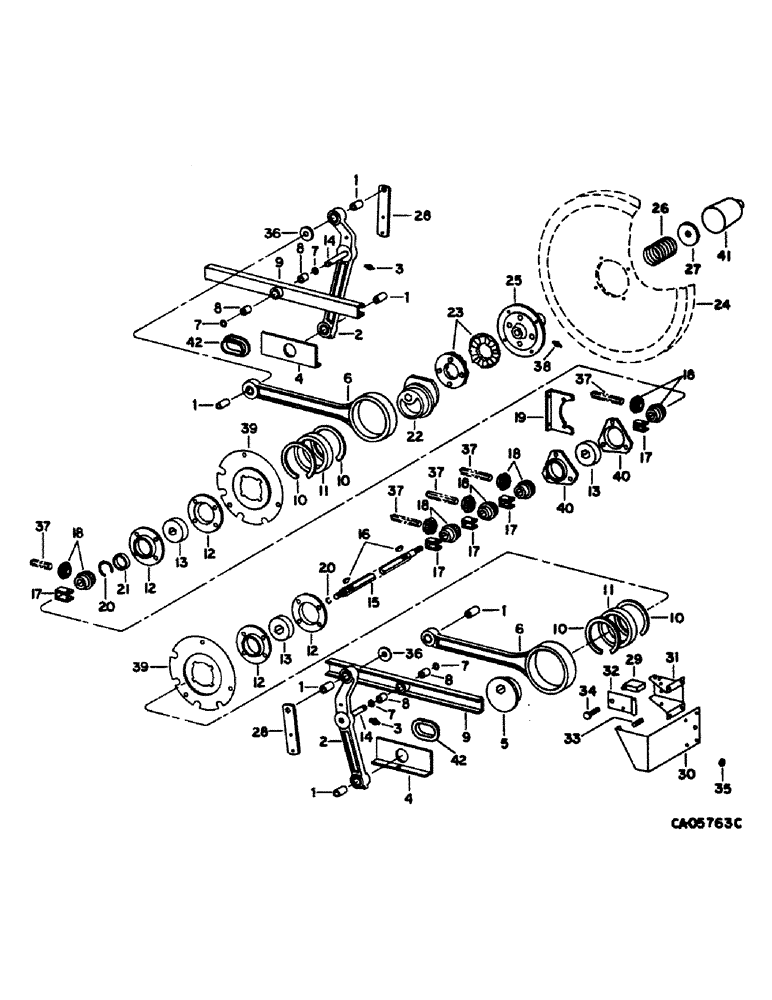

Запчасти Case IH 1480 (23-03) - AUGER BED, SHOE AND SHOE SIEVE, SHAKER SHAFT AND AUGER DRIVE Grain Pan, Shoe & Shoe Sieve
№
Артикул
Название
Примечание
Количество
1
186597C1
BUSHING,16mm ID x 38.23mm OD x 44.7mm L
chaffer drive hanger arm
1шт.
2
1321374C91
LEVER ASSY.
LEVER ASSY, chaffer drive hanger, replaces 186667C91 by also ordering seal 1302644C1, includes ref nos. 1 and 14
2шт.
22228R1
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8
5/8 x 3-1/2 type 8
1шт.
21217R1
BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8
5/8 x 4-1/2 type 8
1шт.
9412231
NUT
5/8 PHC P/T lock type 8
1шт.
21782R1
WASHER
.656 x 1.500 x .054
1шт.
3
87569
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
FITTING, 1/4 25 deg self-tap lub
2шт.
4
186684C1
SUPPORT
SEAL, chaffer rail front pivot, use with lever 186667C91
2шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 type 1
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
134238R1
WASHER
.344 x 1.000 x .054
1шт.
5
183053C2
ECCENTRIC
CAM, shaker shaft pitman drive LH
1шт.
6
186738C91
PITMAN
shaker shaft, includes ref. no. 1
2шт.
7
372756R91
OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk
front hanger support bearing
4шт.
8
551139R91
BEARING, NEEDLE
BEARING, front hanger support
4шт.
9
186651C91
SUPPORT ASSY.
SUPPORT ASSY, front hanger, includes ref nos. 7 and 8
2шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 type 1
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 PHC flange lock type 8
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16 x 3/4 znp hex-hd flange lock
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
10
892775C1
SNAP RING,#475, 5.070", Int
RING, shaker shaft pitman brg snap, replaces 630508C1
4шт.
11
193132C91
BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W
BEARING, shaker shaft pitman
2шт.
12
180955C1
FLANGED BEARING,0.375"
FLANGE, shaker shaft bearing, 3 bolt, Serial Range: -14000
4шт.
12
181383C1
FLANGED BEARING,72.01mm ID x 122.24mm OD
FLANGE, shaker shaft bearing, 4 bolt, Start Serial: 14001
4шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
13
156816C91
BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W
BEARING, shaker shaft
3шт.
14
186740C1
PIN,22.25mm OD x 147.32mm L
SHAFT, hanger arm
2шт.
137258
COTTER PIN
3/16" x 1 3/4"
1шт.
21714R1
WASHER
.906 x 1.500 x .105
1шт.
21761R1
WASHER
.906 x 1.500 x .054
1шт.
15
194176C1
SHAFT
shaker
1шт.
9413971
LOCK NUT,3/4"-10, GB
NUT, 3/4 CAD P/T lock type 5
1шт.
426897
JAM NUT,Jam, 3/4"-10, G5
3/4 jam type 5
1шт.
23245R1
WASHER
.781 x 1.750 x .164
1шт.
22482R1
WASHER
1.406 x 2.250 x .105
1шт.
16
124553
WOODRUFF KEY,#15, 1/4" x 1", HT
2шт.
17
225265R1
CLAMP
auger bed gear
1шт.
180185
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
1/2 x 2-1/2 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
9413967
LOCK NUT,1/2"-13, GB
NUT, 1/2 CAD P/T lock type 5
1шт.
18
185411C1
GEAR-SET
GEAR SET, auger drive bevel, 14T, matched set, Serial Range: -34000
5шт.
18
1300639C1
GEAR-SET
GEAR SET, auger drive bevel, 14T, matched set, Start Serial: 34001
5шт.
617941R1
PIN,5/16" x 2", Coiled
1шт.
19
186589C1
SUPPORT
auger drive center bearing
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
20
575186R1
SNAP RING
RING, shaker shaft pitman
2шт.
21
935856R1
BUSHING
shaker shaft pitman
1шт.
22
191429C2
CAM
shaker shaft pitman drive RH
1шт.
23
B12170
RATCHET,Clutch Slip, 94.49mm
shaker shaft drive slip clutch
2шт.
24
PULLEY, shaker shaft driven, refer to group 20 under RH drive
1шт.
25
186508C1
HUB
shaker shaft drive slip clutch, Serial Range: -24000
1шт.
25
1303136C1
HUB
shaker shaft drive slip clutch, w/straw chopper, Serial Range: -24000
1шт.
25
1303136C1
HUB
shaker shaft drive slip clutch, for combines, Start Serial: 24001
1шт.
26
19302K
SPRING
shaker shaft drive slip clutch
1шт.
27
388418C1
SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk
slip clutch retainer
1шт.
28
186752C1
BAR
pitman stabilizer
2шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
1/2 x 1-3/4 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
29
574649R91
SWITCH
ASSY, auger alarm
1шт.
134530
NUT,Hex, #6 - 32
Machine screw #6-32
1шт.
440-10616
SCREW,Cross Pan Hd, #6-32 x 1"
no. 6 x 1-1/4 znd slt
1шт.
492-11006
LOCK WASHER,#6
Lock, #6
1шт.
103337
WASHER,#6
1шт.
30
194776C1
SUPPORT
auger alarm switch, serial no. 24000 and below, Serial Range: -24000
1шт.
30
181144C2
SUPPORT
auger alarm switch, w/straw chopper, Serial Range: -24000
1шт.
30
181144C2
SUPPORT
auger alarm switch, for combines, Start Serial: 24001
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
31
167323C1
SUPPORT
auger alarm switch
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
21963R1
HEADED PIN,1/4" x 2 1/2"
PIN, 1/4 x 2.500 hd type 1
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
21870R1
WASHER
17/64 x 3/4 x 16 ga C-Z
1шт.
32
167324C1
HINGE
STRIP, auger alarm switch
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
23099R1
HEADED PIN,5/16" x 3"
PIN, 5/16 x 3 znd std-hd
1шт.
33
M296
SPRING
alarm switch strap return
1шт.
34
194304C1
STOP
ASSY, auger alarm switch
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
35
117959
GROMMET,5/16" ID x .719" x .062"
5/16 ID x .72 OD
1шт.
36
21782R1
WASHER
.656 x 1.500 x .054
1шт.
37
AUGER ASSY, refer to this group under auger bed
5шт.
39
193978C1
RETAINER
shaker shaft, Serial Range: -14000
2шт.
39
1302221C1
PLATE
shaker shaft, Start Serial: 14001
2шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
40
180955C1
FLANGED BEARING,0.375"
FLANGE, center bearing
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
41
182544C1
SHIELD
shaker spring
1шт.
42
1302644C2
SEAL
chaffer rail front pivot, use with lever 1321374C1
2шт.
Выбрано товаров: 98
