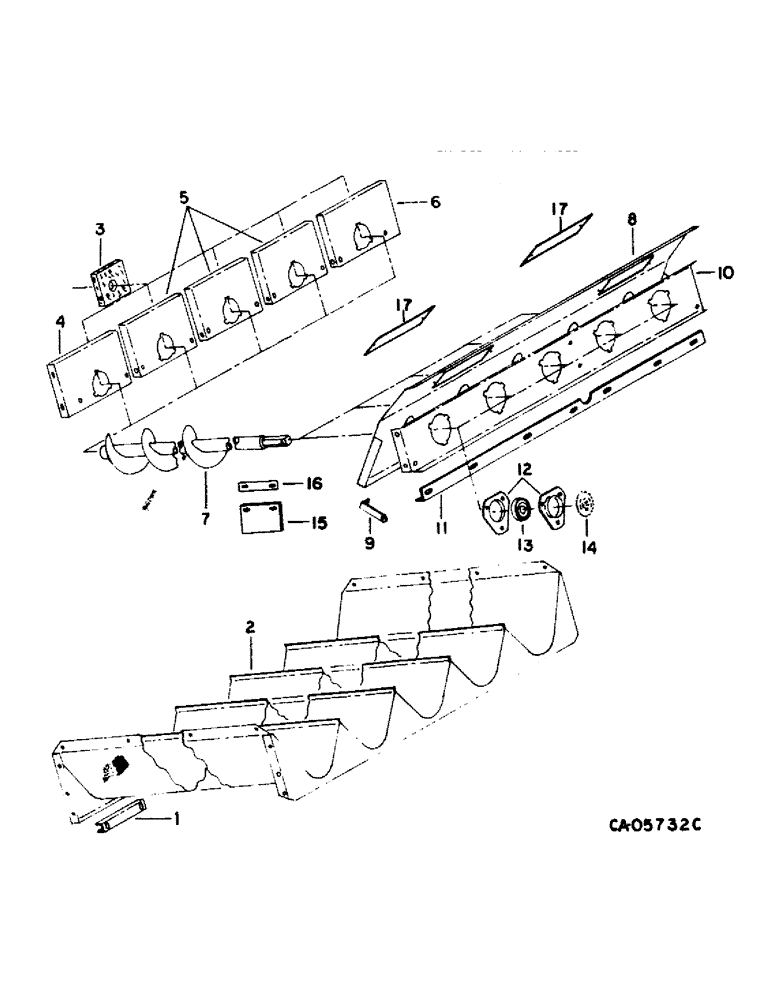

Запчасти Case IH 1480 (23-01) - AUGER BED, SHOE AND SHOE SIEVE, AUGER BED Grain Pan, Shoe & Shoe Sieve

1

185068C1

COVER

auger trough clean-out

5шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT, clean-out wing

1шт.

564791R1

SPRING NUT

1/4-20 Tinnerman

1шт.

2

191645C2

TROUGH

ASSY, auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

193414C2

BOARD

front auger brg

5шт.

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT, 3/8 x 2-1/4 crg type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

4

191660C1

SUPPORT

front auger LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

191659C1

SUPPORT

front auger center

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

191661C1

SUPPORT

front auger RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

193398C1

AUGER

ASSY, RH rotation, Serial Range: -34000

5шт.

7

1308541C1

AUGER

ASSY, RH rotation, Start Serial: 34001

5шт.

7

1309229C1

AUGER

ASSY, LH rotation, special, also order package, 1300638C1, Serial Range: -34000

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

25847R1

WASHER

1.062 x 2.000 x .209 HDN

1шт.

8

1321372C1

FILLER

rotor to auger drive support, replaces 191712C1 by also ordering 2 covers 1319548C1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

193554C1

SUPPORT

pan

2шт.

10

191656C1

SUPPORT

auger drive gears, Serial Range: -34000

1шт.

10

1309226C1

SUPPORT

auger drive gear, Start Serial: 34001

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

11

188360C1

STIFFENER

ANGLE, auger support stiffener

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

571424R1

FLANGE

auger drive bearing

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

13

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING, auger drive

5шт.

14

GEAR, auger drive bevel, refer to this group under shaker shaft and auger drive

1шт.

15

1302112C1

STRIP

grain spreader, special

1шт.

16

1302113C1

BAR

grain spreader, special

1шт.

995220R1

CLAMP

grain spreader

1шт.

17

1319548C1

BAR

COVER, grain loss sensor

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300666C91

KIT

PACKAGE, auger bed grain spreader strip, consists oof

1шт.

1302113C1

BAR

grain spreader

1шт.

1302112C1

STRIP

grain spreader

1шт.

995220R1

CLAMP

no. 28 type F instructions

2шт.

1300638C1

KIT

PACKAGE, auger adapter, to adapt swedge tube augers, consists of auger bearing support (NSS), bar (NSS), bolt (NSS), gear, 14T (NSS), instructions (NSS)

1шт.

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING, auger

1шт.

571424R1

FLANGE

auger bearing

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
