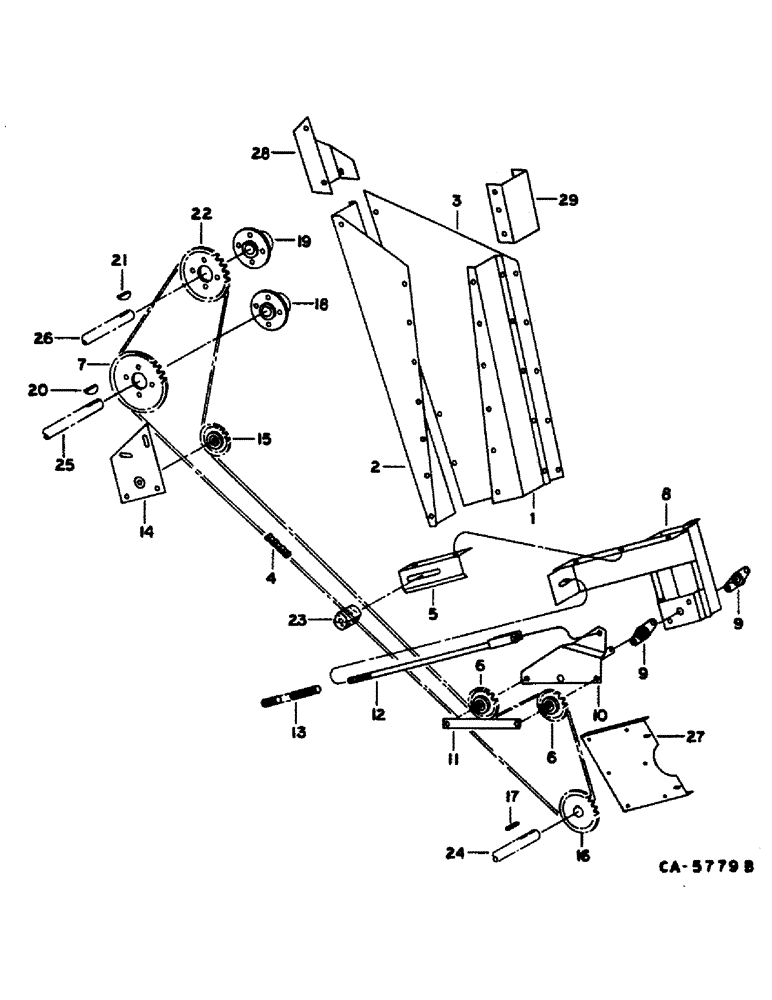

Запчасти Case IH 1480 (25-14) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, RICE S/N 1501 & ABOVE, GRAIN & CORN S/N 14001 & ABOVE Elevators

1

185390C1

SHIELD

inner elevator upper, for rice, for grain and corn with raised level auger

1шт.

1

188265C1

SHIELD

inner elevator upper, for grain and corn

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

185391C1

SHIELD

inner elevator lower, for rice, for grain and corn with raised level auger

1шт.

2

188266C1

SHIELD

inner elevator lower, for grain and corn

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

185392C2

SHIELD

outer elevator, for rice, for grain and corn with raised level auger

1шт.

3

188267C1

SHIELD

outer elevator, for grain and corn

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

4

CHAIN ASSY, raised elevator drive, for rice, for grain and corn combines with raised level auger, use 313 links from 10 ft roll marked 1791D and one connecting link 1310D

1шт.

4

CHAIN ASSY, elevator drive, grain and corn, use 285 links from 10 ft roll marked 1791D and one connecting link 1310D

1шт.

5

1302487C1

SUPPORT

elevator tightener block

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

631905R91

SPROCKET

elevator chain idler, 17 T

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

7

183177C1

DRIVE SPROCKET

SPROCKET, grain elevator spout, 42T, for rice

1шт.

7

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33T, slow speed, for grain and corn

1шт.

7

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 27T, fast speed, for grain and corn

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

8

182765C1

SUPPORT

ASSY, idler pivot

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

9

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSY, idler pivot, replaces 382508R1

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

182758C1

ARM

ASSY, double idler pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108 (or as required)

6шт.

11

182771C1

BAR

double idler tie

1шт.

12

182768C1

ROD ASSY.

ROD ASSY, idler spring tension

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1.000 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

13

523677R1

SPRING

double idler tensioning

1шт.

14

182777C1

SUPPORT ASSY.

SUPPORT ASSY, stationary idler

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

15

631905R91

SPROCKET

stationary idler, 17 T

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

16

192139C2

SPROCKET

ASSY, grain elevator drive, 25 T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 sq/hd C/PT set

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

17

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 sq parallel

1шт.

18

1302217C1

HUB

grain elevator drive sprocket, Serial Range: -54000

1шт.

18

1302216C1

HUB

grain elevator drive sprocket, Start Serial: 54001

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 sq/hd C/PT set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

19

1302216C1

HUB

grain elevator driven sprocket

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 PHC sq/hd C/PT set

1шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

, Serial Range: -54000

1шт.

20

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hardened, Start Serial: 54001

1шт.

21

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hardened

1шт.

22

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27 T, for grain and corn

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

22

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 33 T, for rice

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

23

582018R1

BLOCK

grain elevator drive chain tightener

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

606546R1

JAM NUT

5/8 hex jam

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

24

SHAFT, elevator drive, refer to this group under tailings elevator drive and driveshaft

1шт.

25

AUGER ASSY, grain delivery, refer to this group under grain elevator

1шт.

26

SHAFT, grain elevator head, refer to this group under grain elevator

1шт.

27

(Not used this application)

1шт.

28

(Not used this application)

1шт.

29

(Not used this application)

1шт.
