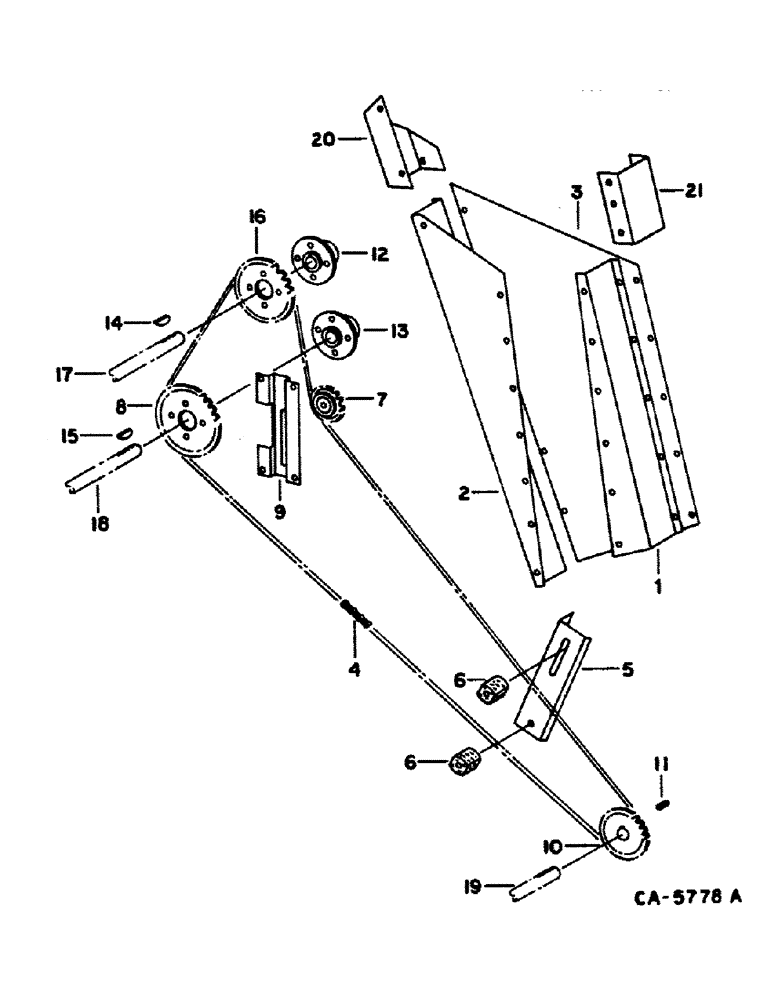

Запчасти Case IH 1480 (25-12) - GRAIN & TAILINGS ELEVATORS, ELEVATOR DRIVE, GRAIN & CORN S/N 14000 & BELOW Elevators

1

188265C1

SHIELD

inner elevator upper

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188266C1

SHIELD

inner elevator lower

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188267C1

SHIELD

outer elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

CHAIN ASSY, grain elevator drive, use 255 links from 10 ft roll marked 1791D and one connecting link 1310D

1шт.

3

194884C1

SUPPORT

elevator tightener block

1шт.

6

582018R1

BLOCK

elevator drive chain tightener

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

7

631905R91

SPROCKET

elevator chain idler, 17 T

1шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8 x 2-1/4 crg type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

N11720

WASHER

.656 x 1.250 x .090 sq/h

1шт.

8

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33 T

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

9

188260C1

SUPPORT

grain elevator idler

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25 T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd C/PT set

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

11

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

12

1302216C1

HUB

grain elevator drive sprocket

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 PHC sq/hd C/PT set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

1302217C1

HUB

grain elevator driven sprocket

1шт.

Ref #13 - Has 1" shaft hole, 1/4" key way.

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 PHC sq/hd C/PT set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

15

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff hardened

1шт.

16

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27 T

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

17

SHAFT, grain elevator head, refer to this group under grain elevator

1шт.

18

AUGER ASSY, grain delivery, refer to this group under grain elevator

1шт.

19

SHAFT, elevator drive, refer to this group under tailing elevator drive and jackshaft

1шт.

20

(Not used this application)

1шт.

21

(Not used this application)

1шт.
