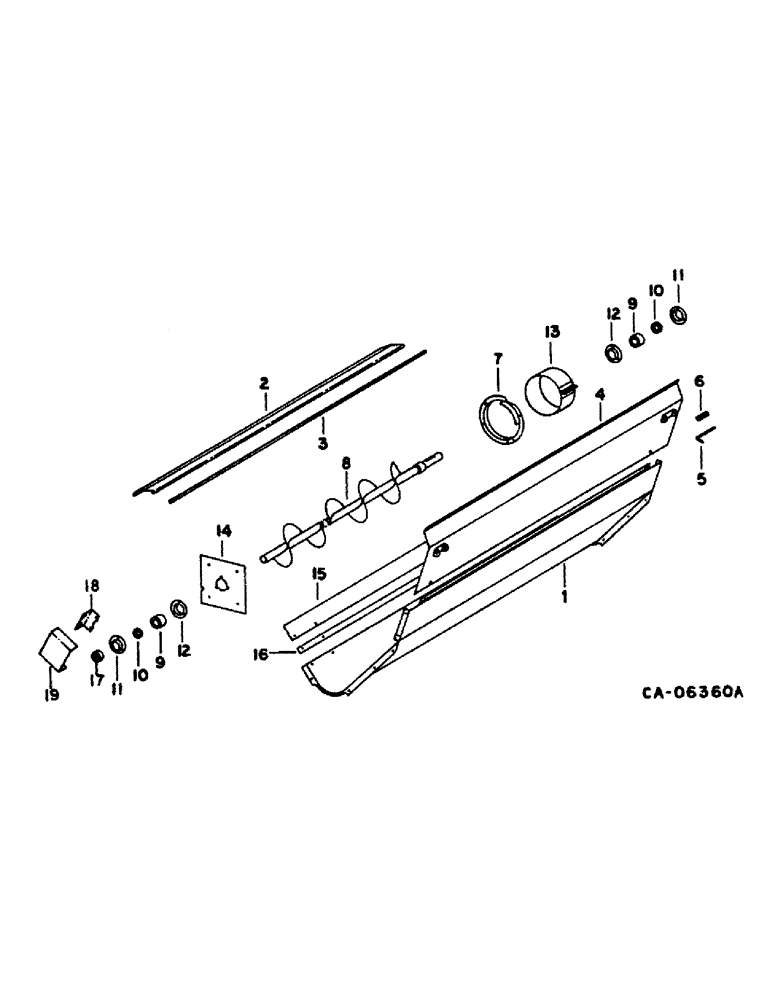

Запчасти Case IH 1480 (25-08) - GRAIN AND TAILINGS ELEVATORS, TAILINGS AUGER TROUGH Elevators

1

192026C3

TROUGH

ASSY, tailings auger

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

2

185196C1

DOOR

tailings auger trough

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 P/T lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

3

185197C1

ROD

auger trough door

1шт.

4

191978C1

GATE ASSY

TAILGATE ASSY, tailings

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

186736C1

ROD

PIN, tailings tailgate

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

6

540815R1

SPRING

tailgate pin

2шт.

7

160324C2

FLANGE

tailings auger

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

8

192549C2

AUGER

ASSY, tailings

1шт.

478258R1

WASHER

1.156 x 1.750 x .105

1шт.

9

939475R92

BEARING ASSY

ASSY, tailings auger

2шт.

10

557115R11

COLLAR

COLLAR, w/set screw

2шт.

11

939460R91

FLANGE

w/lub fitting, auger brg

2шт.

12

939461R1

FLANGE

auger bearing grooved

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

195075C1

SCREEN

ASSY, tailings auger extension corn, perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

13

192696C1

EXTENSION

ASSY, tailings auger extension, non-perforated

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

14

183158C1

COVER

BAR, left bearing support

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

(Not used this application)

1шт.

16

(Not used this application)

1шт.

17

1301135C1

COLLAR

sensor

1шт.

18

183869C1

BRACKET

sensor

1шт.

19

187616C1

SUPPORT

sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.
