Запчасти Case IH 1480 (25-06) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR Elevators

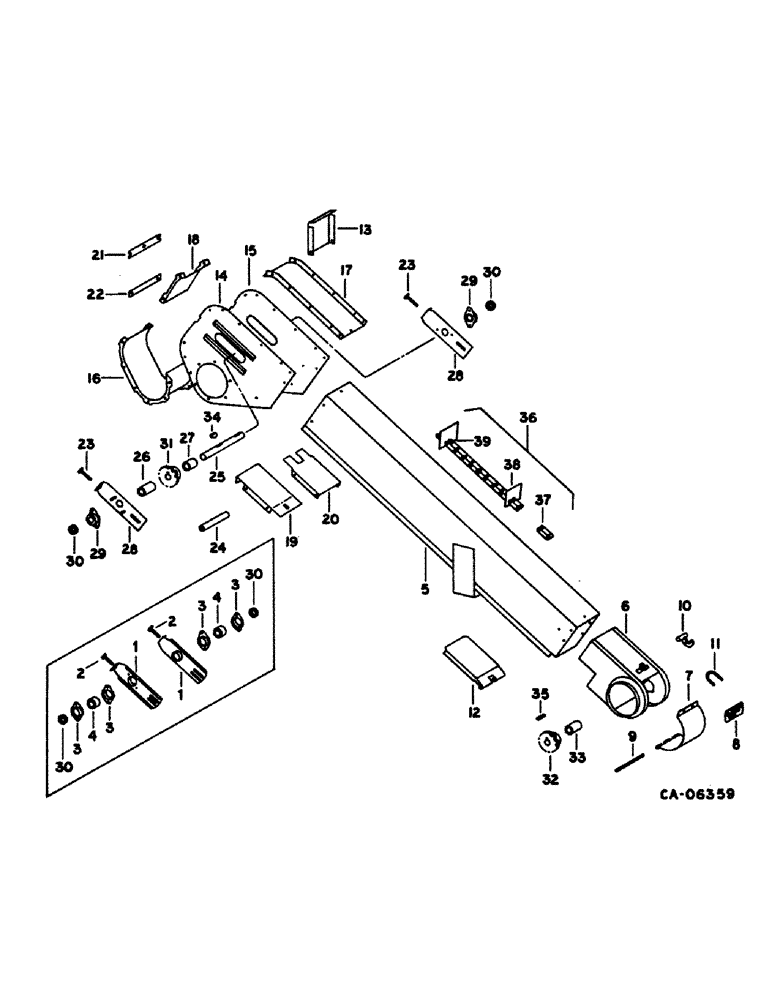

Схема запчастей Case IH 1480 - (25-06) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR Elevators
30
30
29
5
3
3
24
31
22
29
7
11
17
35
16
1
26
3
37
19
15
25
18
6
28
8
34
20
4
14
39
12
32
23
30
38
28
23
36
33
2
3
2
4
21
1
27
9
13
30
10

Артикул

Название

Примечание

Количество

1

170584C11

BRACKET

SUPPORT ASSY, elevator head shaft, Serial Range: -14000

2шт.

2

191200C1

BOLT,7/6" - 14 x 4.50", Cl 5, Full Thd

conveyor chain tightener bar, Serial Range: -14000

2шт.

3

F9417

FLANGE

head shaft brg, Serial Range: -14000

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, head shaft, Serial Range: -14000

2шт.

5

192430C2

ELEVATOR TUBE

TUBE ASSY, tailings elevator

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

6

183160C1

BOOT

ASSY, elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

174193C1

DOOR

tailings elevator boot, perforated

1шт.

7

156910C1

DOOR

tailings elevator boot, non-perforated

1шт.

8

(Not used in this application)

1шт.

9

U17024

PIN

boot door

1шт.

10

155909C1

LATCH

door

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

11

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 P/T lock type 5

1шт.

12

191790C2

END

false bottom

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

192426C1

SUPPORT

elevator upper

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

188133C1

SIDE ASSY.

SIDE ASSY, elevator head LH, Serial Range: -14000

1шт.

14

181366C1

SIDE PLATE

SIDE ASSY, elevator head LH, Start Serial: 14001

1шт.

15

188134C1

SIDE ASSY.

SIDE ASSY, elevator head RH, Serial Range: -14000

1шт.

15

181367C1

SIDE PLATE

SIDE ASSY, elevator head RH, Start Serial: 14001

1шт.

16

188119C1

TROUGH

ASSY, elevator head

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

191783C1

TOP COVER

TOP, head

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

191776C1

COVER

COVER, head

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

19

191782C1

SUPPORT

BOTTOM, head

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

188123C1

SHEET

BOTTOM, head false, Serial Range: -14000

1шт.

20

181327C1

BOTTOM

head false, Start Serial: 14001

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

183023C1

CLAMP

tightener bolt, Serial Range: -14000

1шт.

21

181376C1

CLAMP

tightener bolt, Start Serial: 14001

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

22

183022C1

SUPPORT ASSY.

SUPPORT ASSY, tightener bolt, Serial Range: -14000

1шт.

22

181375C1

SUPPORT

ASSY, tightener bolt, Start Serial: 14001

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

23

667486R1

BOLT

BOLT, conveyor chain tightener bar, Start Serial: 14001

2шт.

24

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

1шт.

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

25

191785C1

SHAFT

elevator head

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

26

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Head shaft, LH 1" Pipe x 2 3/4"

1шт.

27

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Head shaft, RH 1" Pipe x 1 9/16"

1шт.

28

181364C1

SUPPORT

ASSY, elevator hd shaft, Start Serial: 14001

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

29

214490C91

BALL BEARING,25.4mm ID

BEARING, head shaft, Start Serial: 14001

2шт.

30

455102R21

COLLAR

ASSY, brg lkg

2шт.

31

165292C1

SPROCKET ASSY.

SPROCKET, conveyor chain, 6 T, Serial Range: -14000

1шт.

31

168683C1

SPROCKET

conveyor chain, 7 T, Start Serial: 14001

1шт.

32

186720C1

SPROCKET ASSY.

SPROCKET, conveyor chain, 6 T, Serial Range: -14000

1шт.

32

1302200C1

SPROCKET ASSY.

SPROCKET, conveyor chain, 7 T, Start Serial: 14001

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

33

28082R1

SPACER,1 3/8" Tube x 1 3/8"

1.15 x 1.38 x 1.38

1шт.

34

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

35

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 3/16 x 1-1/2 parallel

1шт.

36

192736C93

ELEVATOR CHAIN,C550, 111 Links x 41.4mm = 4595.4mm

CONVEYOR ASSY, chain w/flights, Serial Range: -14000

1шт.

36

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSY, chain w/flights, Start Serial: 14001

1шт.

185315C1

RIVET

3/8 x 5/8 pln but/hd sol

1шт.

37

631254R91

DRAG LINK

LINK, conveyor chain connecting

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

37

23880R1

OFFSET LINK

LINK, conveyor chain offset

1шт.

37

631253R91

LINK

conveyor chain plain

1шт.

38

185314C91

CONVEYOR

W/FLIGHT, elevator, rubber, Serial Range: -14000

1шт.

38

1303123C91

ELEVATOR CHAIN

W/FLIGHT, elevator, rubber, Start Serial: 14001

1шт.

38

153299C91

CONVEYOR

W/FLIGHT, elevator, steel, serviceable items are, Serial Range: -14000

1шт.

150722C91

LINK

1шт.

1303125C1

STEEL FLIGHT

FLIGHT

1шт.

1303116C1

RUBBER FLIGHT

FLIGHT

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

39

LINK, attaching, for use w/185314C91 and 1303123C91 (NSS)

1шт.

39

150722C91

LINK

attaching, for use w/153299C91 and 1303124C92

1шт.
