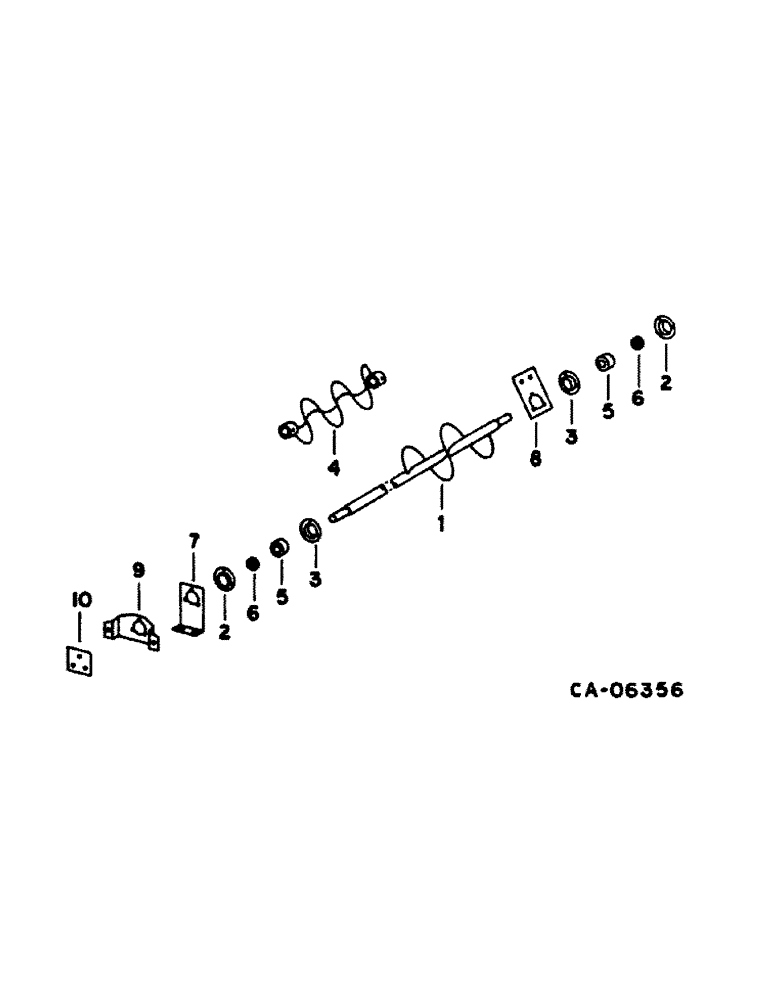

Запчасти Case IH 1480 (25-05) - GRAIN AND TAILINGS ELEVATORS, GRAIN DELIVERY AUGER Elevators

1

1319709C1

AUGER

delivery, replaces 191915C1, for grain and corn

1шт.

1

1319841C1

AUGER

delivery, replaces 186938C1, for rice

1шт.

1

1324434C1

AUGER

delivery, for grain and corn with raised level auger

1шт.

2

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE, w/lub fitting, auger brg, (2) required w/augers 191915C1 and 186938C1, (1) required w/augers 1319709C1 and 1319841C1 at left end of auger

1шт.

2

167878C11

FLANGE

w/lub fitting auger bearing, for use w/augers 1319709C1 and 1319841C1 at right end of auger

1шт.

3

937517R1

FLANGE

auger brg grooved, (2) required w/augers 191915C1 and 186938C1, (1) required w/augers 1319709C1 and 1319841 at left end of auger

1шт.

3

202909C1

BEARING HOUSING

FLANGE, auger bearing grooved, for use w/augers 1319709C1 and 1319841C1 at right end of auger

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

162103C91

AUGER

ASSY, distribution, 1 for grain and corn without raised lever auger, 2 for grain and corn with raised level auger, 2 for rice

1шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

1шт.

5

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

delivery auger, (2) required w/augers 191915C1 and 186938C1, (1) required w/augers 1319709C1 and 1319841C1 at left end of auger

1шт.

5

939475R92

BEARING ASSY

delivery auger, for use w/augers 1319709C1 and 1319841C1 at right end of auger

1шт.

6

455102R21

COLLAR

bearing locking, (2) required w/augers 191915C1 and 186938C1, (1) required w/augers 1319709C1 and 1319841C1 at left end of auger

1шт.

6

557115R11

COLLAR

COLLAR, bearing locking, for use w/augers 1319709C1 and 1319841C1 at right end of auger

1шт.

7

(Not used this application)

1шт.

8

183466C1

BAR

distribution auger bearing, for use w/augers 191915C1 and 186938C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

1319839C1

PLATE

BAR, distribution auger bearing, for use w/augers 1319709C1 and 1319841C1

1шт.

9

185429C1

SUPPORT

leveling auger bearing, for rice, for grain and corn with raised level auger

1шт.

13860C1

SCREW, 3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

(Not used this application)

1шт.

1319966C91

PACKAGE

ASSY, auger, consists of, Serial Range: -54000

1шт.

Auger 1319709C1 or 1319841C1 must also be ordered for use with this package

1шт.

1319714C1

PANEL

SIDE, elevator head, RH

1шт.

1319839C1

PLATE

auger brg

1шт.

939475R92

BEARING ASSY

auger

1шт.

557115R11

COLLAR

COLLAR, brg

1шт.

167878C11

FLANGE

brg

1шт.

202909C1

BEARING HOUSING

FLANGE, brg

1шт.

1302216C1

HUB

auger sprocket

1шт.

124554

O-RING

5/16 x 1 Woodruff

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1963860C1

TAPERED BEARING,55 mm ID x 120 mm OD x 31.5 mm

SCREW, 3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock instructions (NSS)

1шт.

SB 50-87 Grain Leveling Auger & Spout Data for heavier leveling auger.

1шт.
