Запчасти Case IH 1480 (25-04) - GRAIN AND TAILINGS ELEVATORS, GRAIN AUGER TROUGH Elevators

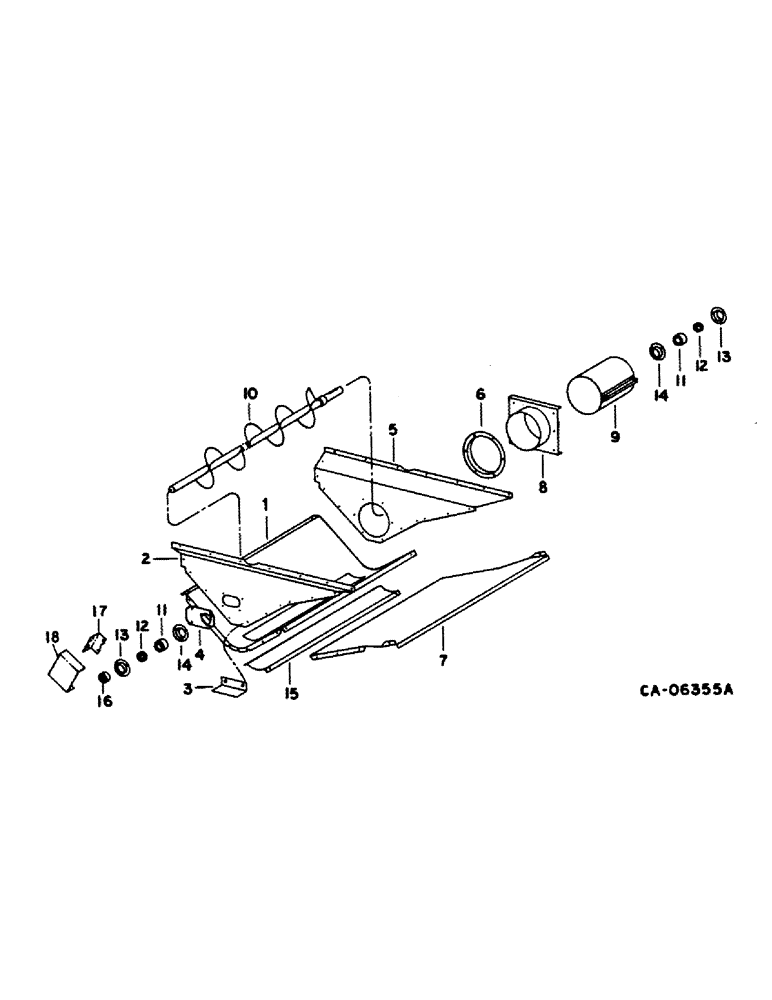

Схема запчастей Case IH 1480 - (25-04) - GRAIN AND TAILINGS ELEVATORS, GRAIN AUGER TROUGH Elevators
14
18
15
9
3
14
12
16
13
7
2
10
13
1
4
11
12
5
8
17
6
11

Артикул

Название

Примечание

Количество

1

186624C1

TROUGH

ASSY, grain bottom, corn-perforated

1шт.

1

191983C1

TROUGH

ASSY, grain bottom, non-perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

188284C1

SUPPORT

ASSY, grain trough LH

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 P/T lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

3

182716C1

ANGLE

trough LH support

1шт.

4

186717C1

PLATE

BAR, grain collecting auger LH access

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

194563C1

SUPPORT

grain trough RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 P/T lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

6

188285C1

RETAINER

RING, grain trough RH support

1шт.

188474C1

NUT, 5/16 P/T lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flg lock

1шт.

7

191984C2

PLATE

EXTENSION, grain trough

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 P/T lock

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

8

188276C2

TUBE,204.98 mm ID, 76.2 mm Length

ASSY, grain trough

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

188228C1

CLAMP,208.79mm

ASSY, grain auger trough

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

10

1319173C1

AUGER

ASSY, grain

1шт.

22050R1

WASHER

1.281 x 1.750 x .054

1шт.

11

939475R92

BEARING ASSY

grain auger, Serial Range: -34000

2шт.

11

156011C92

BALL BEARING

BEARING ASSY, grain auger, Start Serial: 34001

2шт.

12

557115R11

COLLAR

COLLAR, bearing locking, Serial Range: -34000

2шт.

12

557995R11

COLLAR

w/set screw, Start Serial: 34001

2шт.

13

939460R91

FLANGE

w/45 deg lub fitting

2шт.

14

939461R1

FLANGE

auger brg grooved

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

186621C1

COVER

grain trough, for use w/perforated trough

1шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW, 5/16 x 1 h/whd tap

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

sensor locking

1шт.

17

178795C1

BRACKET

sensor

1шт.

18

187642C2

COVER

sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

1319979C91

KIT

PACKAGE ASSY, clean grain auger, replaces 1300726C91, to convert to 1.250 in. diameter shaft, consists of, Serial Range: -34000

1шт.

When ordering package 1319979C91 for machines with S/N 34000 and below furnish auger 1319173C1

1шт.

1319176C1

SPROCKET ASSY.

SPROCKET, elevator boot, 7 tooth

1шт.

1319181C1

SPACER

32.5 x 38.1 x 54mm

1шт.

156011C92

BALL BEARING

BEARING

2шт.

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq

1шт.

557995R11

COLLAR

auger bearing

2шт.

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

sensor instructions (NSS)

1шт.

S5016 for converting from 1 1/8" to 1 1/4".

1шт.
