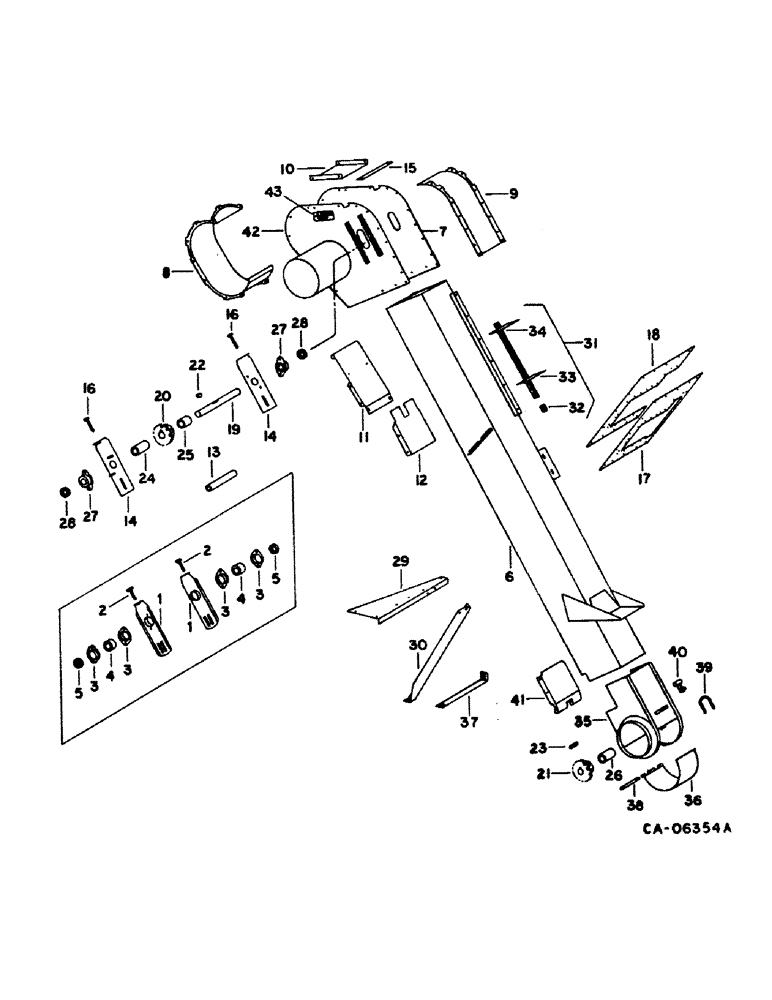

Запчасти Case IH 1480 (25-01) - GRAIN AND TAILINGS ELEVATORS, GRAIN ELEVATOR Elevators

1

186724C1

SUPPORT ASSY.

SUPPORT ASSY, elevator head shaft, Serial Range: -14000

2шт.

2

191200C1

BOLT,7/6" - 14 x 4.50", Cl 5, Full Thd

elevator head, Serial Range: -14000

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

3

F9417

FLANGE

elevator head shaft brg

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

elevator head shaft, Serial Range: -14000

2шт.

5

557115R11

COLLAR

COLLAR, w/set screw, elevator, Serial Range: -14000

2шт.

6

192000C1

ELEVATOR TUBE,120.3" Length

TUBE ASSY, grain elevator, for grain and corn

1шт.

6

185361C1

ELEVATOR TUBE,132.03" Length

TUBE ASSY, grain elevator, for rice, for grain and corn with raised lever auger

1шт.

7

183467C1

SIDE ASSY.

SIDE ASSY, elevator head RH, Serial Range: -14000

1шт.

7

183374C2

PANEL

SIDE ASSY, elevator head RH, Serial Range: 14001-54000

1шт.

7

1319714C1

PANEL

SIDE ASSY, elevator head RH, Start Serial: 54001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

188263C1

SUPPORT

ASSY, grain spout cover, for grain and corn

1шт.

re it no. 8.188263c1 is "C" shape w/8 holes on either side

1шт.

8

1309132C1

BRACKET

SUPPORT ASSY, grain spout cover, for rice, for grain and corn with raised lever auger or grain with custom combine special

1шт.

P/N 1309132c1 is only slightly curved w/3 holes on either side.

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

188378C1

SUPPORT

TOP, grain elevator head, for grain and corn

1шт.

9

1309136C1

CHANNEL

elev. top, for rice, for grain and corn with raised lever auger or grain with custom combine special

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

195424C1

DOOR

grain elevator head, for grain and corn

1шт.

re it no. 10.195424c1 a flat pc. w/2 holes on either side.

1шт.

10

1309137C1

SUPPORT ASSY.

SUPPORT ASSY, grain elev. head, for rice, for grain and corn with raised lever auger or grain with custom combine special

1шт.

P/N 1309137c1 is sort of "hook" shape piece.

1шт.

11

188262C1

END

grain elevator spout, S/N and below

1шт.

11

1319848C1

END

grain elevator spout, S/N and above

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 type 5, used w/188262C1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Used w/188262C1 5/16"

1шт.

1319850C1

BOLT,5/16" - 18 x 264mm

BOLT, 5/16 x 10.39 in., hooked end, used w/1319848C1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd ar

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

156431

LOCK SCREW,Cross Flat Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp f/hdcr mach

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 P/T lock

1шт.

12

186719C1

BRACKET

END, top false bottom, Serial Range: -14000

1шт.

12

183367C1

END

top false bottom, Start Serial: 14001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

191685C2

SPACER

headhsaft guide lock

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

14

183363C1

SUPPORT ASSY.

SUPPORT ASSY, elevator head shaft, Start Serial: 14001

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

185337C1

BAR

conveyor chain tightener, Serial Range: -14000

1шт.

15

183382C1

BAR

conveyor chain together, Start Serial: 14001

1шт.

16

667486R1

BOLT

BOLT, elevator head, Start Serial: 14001

1шт.

25933R1

JAM NUT,Jam, 1/2"-13, G8

1/2 PHC jam type 8

1шт.

17

192618C1

SEAL

grain elevator

1шт.

18

192616C1

PLATE

grain elevator seal

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25708R1

WASHER

.344 x .688 x .089 HDN

1шт.

19

186723C1

SHAFT

grain elevator head

1шт.

Q162

WASHER

1.156 x 1.500 x .054

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

20

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 7 T

1шт.

21

186720C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 6 T, Serial Range: -14000

1шт.

21

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 7 T, Serial Range: 14001-34000

1шт.

21

1319176C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 7 T, Start Serial: 34001

1шт.

22

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

23

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq-parallel

1шт.

24

27953R1

SPACER,1 3/8" Tube x 3 3/4"

1.157 x 1.375 x 3.75

1шт.

25

27954R1

SPACER,1 3/8" Tube x 2 9/16"

1.157 x 1.375 x 2.562

1шт.

26

27956R1

SPACER,1 3/8" Tube x 2 1/8"

1.157 x 1.375 x 2.12, Serial Range: -34000

1шт.

26

1319181C1

SPACER

1.28 x 1.50 x 2.125, Start Serial: 34001

1шт.

22266R1

WASHER

1.156 x 1.750 x .027

1шт.

27

1302001C91

ROLLER BEARING,28.57mm ID

grain elevator head shaft, Start Serial: 14001

2шт.

28

557115R11

COLLAR

COLLAR, w/set screw, elevator, Start Serial: 14001

2шт.

29

192223C2

BRACKET

SUPPORT, elevator upper

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

30

194753C2

SUPPORT

elevator lower

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

192840C91

ELEVATOR CHAIN,C550, 155 Links x 41.4mm = 6417mm

CONVEYOR ASSY, grain elevator, for grain and corn, Serial Range: -14000

1шт.

31

1302195C91

ELEVATOR CHAIN,CA550, 156 Links x 41.4mm = 6458.4mm

ASSY, grain elevator, for grain and corn, serviceable items are, Start Serial: 14001

1шт.

1302197C1

STRIP

FLIGHT

38шт.

185053C1

RIVET

76шт.

31

185435C91

CONVEYOR

ASSY, grain elevator, for rice, Serial Range: -14000

1шт.

31

1302199C91

CONVEYOR

ASSY, grain elevator, for rice, for grain and corn with raised level auger, Start Serial: 14001

1шт.

32

631254R91

DRAG LINK

LINK, connecting

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

32

23880R1

OFFSET LINK

LINK, offset

1шт.

32

631253R91

LINK

plain

1шт.

33

193819C91

CONVEYOR

w/flight, grain elevator, rubber, Serial Range: -14000

1шт.

33

1302198C91

CONVEYOR

w/flight, grain elevator, rubber, serviceable items are, Start Serial: 14001

1шт.

1302197C1

STRIP

FLIGHT

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

33

183303C91

STEEL FLIGHT

CONVEYOR, w/flight, grain elevator, steel, serviceable items are, Serial Range: -14000

1шт.

150722C91

LINK

1шт.

183304C1

STEEL FLIGHT

FLIGHT

1шт.

33

1302193C92

RUBBER FLIGHT

CONVEYOR, w/flight, grain elevator, steel, serviceable items are, Start Serial: 14001

1шт.

150722C91

LINK

flight (NSS)

1шт.

1302197C1

STRIP

FLIGHT

42шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

185053C1

RIVET

conveyor flight

92шт.

34

LINK, attaching, for use w/193819C91 and 1302198C91 (NSS)

1шт.

34

150722C91

LINK

attaching, for use w/183303C91 and 1302193C92

1шт.

35

191997C2

BOOT

ASSY, grain elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

36

195070C1

DOOR

grain elevator boot, perforated

1шт.

36

1309037C1

DOOR

grain elevator boot, non-perforated

1шт.

37

186729C2

SUPPORT

grain elevator lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

38

160748C1

PIN

grain elevator boot door

1шт.

39

664360R1

BOLT,U, 1/4" - 20 x 69.65"

grain elevator boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 P/T lock type 5

1шт.

40

155909C1

LATCH

grain elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

41

191691C1

END

false bottom grain

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

42

1319649C91

LARGE PLATE

SIDE ASSY, elevator head LH, Serial Range: -14000

1шт.

42

1319643C92

SHEET

SIDE ASSY, elevator head LH, replaces 181881C91, includes ref no. 43, Start Serial: 14001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

43

1319494C1

PRODUCT GRAPHIC

caution, replaces 188197C3

1шт.
