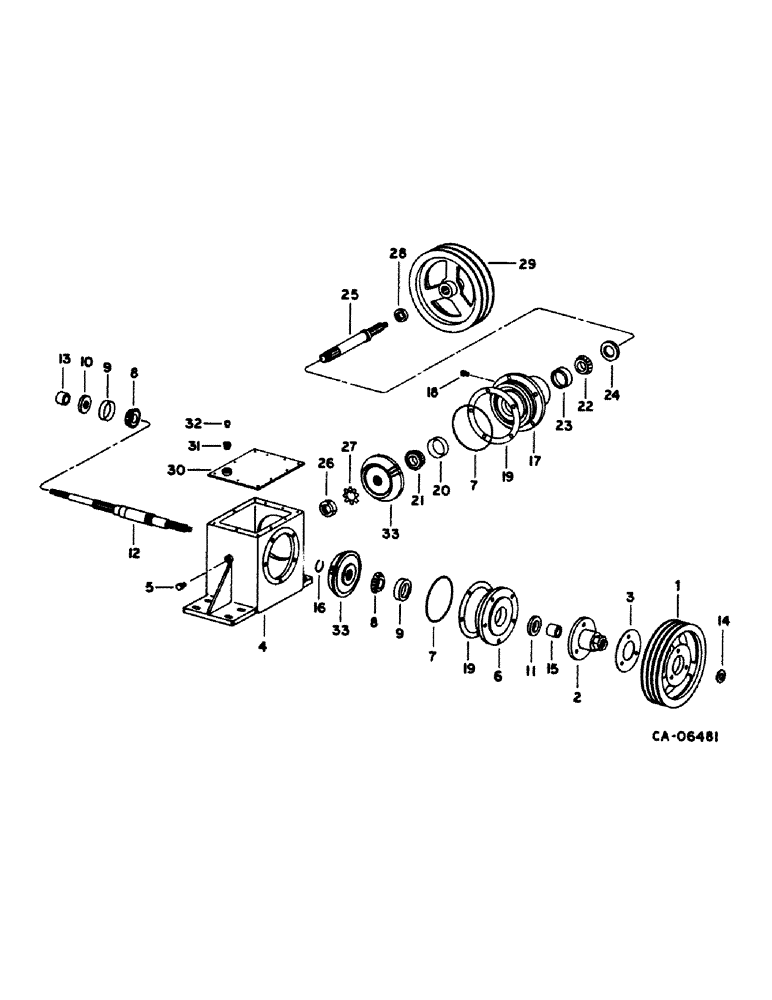

Запчасти Case IH 1480 (07-22) - DRIVE TRAIN, STRAW CHOPPER GEAR CASE, SEPARATOR PARTS Drive Train
№
Артикул
Название
Примечание
Количество
1
181270C1
PULLEY
jackshaft driven, 15.5 in. OD, 384.8mm OD
1шт.
566206R2
BOLT,5/8" - 18 x 2.38", Class 8
hub
1шт.
25676R1
NUT,5/8"-18, G8
5/8-NF PHC type 8
1шт.
25976R1
WASHER,21/32" x 1 5/16" x .150", HDN
.656 x 1.312 x .150 PHC HDN
1шт.
4
181278C1
BEARING HOUSING
CASE, jackshaft bearing
1шт.
88530
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
BOLT, 1/2 x 1-3/4 crg type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
25555R1
WASHER,17/32" x 1 1/4" x .188", HDN
.531 x 1.250 x .188 PHC HDN
1шт.
5
20988R1
PLUG,Hex Hd, 1/4"-18, Brass
bearing case pipe
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
7
22414R1
O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro
5 x 5-1/4 class 5
2шт.
8
298029R91
BEARING ASSY,47.63mm ID x 22.23mm W
BEARING, jackshaft cone
2шт.
9
ST874A
TAPERED BEARING,90.03mm OD x 16mm W
BEARING, jackshaft cup
2шт.
10
181287C1
SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk
jackshaft hub forward
1шт.
11
181288C1
SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk
jackshaft hub rear
1шт.
12
181194C2
SHAFT
separator drive
1шт.
9413986
LOCK NUT,1"-8, GC
NUT, 1 PHC P/T lock type 8
1шт.
27008R1
LOCK NUT,1 1/4"-7, GC
NUT, 1-1/4 PHC P/T lock type 8
1шт.
25847R1
WASHER
1.062 x 2.000 x .209 HDN
1шт.
13
181290C1
SPACER
jackshaft
1шт.
14
25558R1
WASHER,1 3/8" x 2 1/2" x 1/4", HDN
1.375 x 2.50 x .25 PHC HDN
1шт.
15
181269C1
SPACER
BUSHING, jackshaft rear
1шт.
16
RING, drive gear snap, furnish package 1315284C1
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
18
444614
PLUG,Hex Hd, 1/8"-27, Brass
chopper drive hub
2шт.
19
SHIM, drive hub, furnish package 195484C2
1шт.
20
ST2071
TAPERED BEARING,34.92mm ID x 23.81mm W
BEARING, hub inner cone
1шт.
21
17498D
TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm
BEARING, hub inner cup
1шт.
22
G57452
ROLLER BEARING
BEARING, hub outer cone
1шт.
23
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
Hub outer
1шт.
24
192527C1
OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk
chopper dr. shaft oil
1шт.
25
181195C1
SHAFT
chopper dr
1шт.
26963R1
NUT,7/8"-14, G8
NUT, 7/8-NF slt type 8
1шт.
435-828
1/8" x 1-3/4"
1шт.
26070R1
WASHER,15/16" x 1 3/4" x .179", HDN
.938 x 1.750 x .179 HDN
1шт.
26297R1
WASHER,1 3/16" x 2 1/4" x .134", HDN
1.188 x 2.250 x .134 PHC HDN
1шт.
26
271253
NUT
bearing lock
1шт.
27
181268C1
BEARING WASHER,1.193" ID x 1.95" OD
WASHER, drive shaft bearing lock
1шт.
28
181156C1
SPACER
drive shaft
2шт.
29
181081C1
PULLEY
chopper drive, 12 in. OD, 304.8mm OD
1шт.
30
181281C1
COVER
ASSY, chopper drive case
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
31
115224
ADAPTER
3/4 to 3/8 znp out/h/hd pipe
1шт.
32
91916R91
BREATHER,3/8"-18 NPT, Short, w/washer
FITTING, 3/8 PTF short w/felt washer lub
1шт.
33
188814C1
BEVEL GEAR
GEAR SET, consists of (1) gear, 24T (NSS), (1) gear, 23T (NSS)
1шт.
1315284C1
PACKAGE
1шт.
PACKAGE, drive gear snap ring, consists of (1) ring, snap .102 (NSS), (1) ring, snap .105 (NSS), (1) ring, snap .108 (NSS), (1) ring, snap .111 (NSS), (1) ring, snap .114 (NSS), (1) ring, snap .117 (NSS), (1) ring, snap .120 (NSS), (1) ring, snap .123 (NSS), (1) ring, snap .126 (NSS), (1) ring, snap .129 (NSS), (1) ring, snap .132 (NSS), (1) ring, snap .135 (NSS)
1шт.
195484C2
SHIM KIT
PACKAGE, drive hub shim, consists of (4) shim .005 (NSS), (4) shim .007 (NSS), (2) shim .020 (NSS)
1шт.
Выбрано товаров: 57
