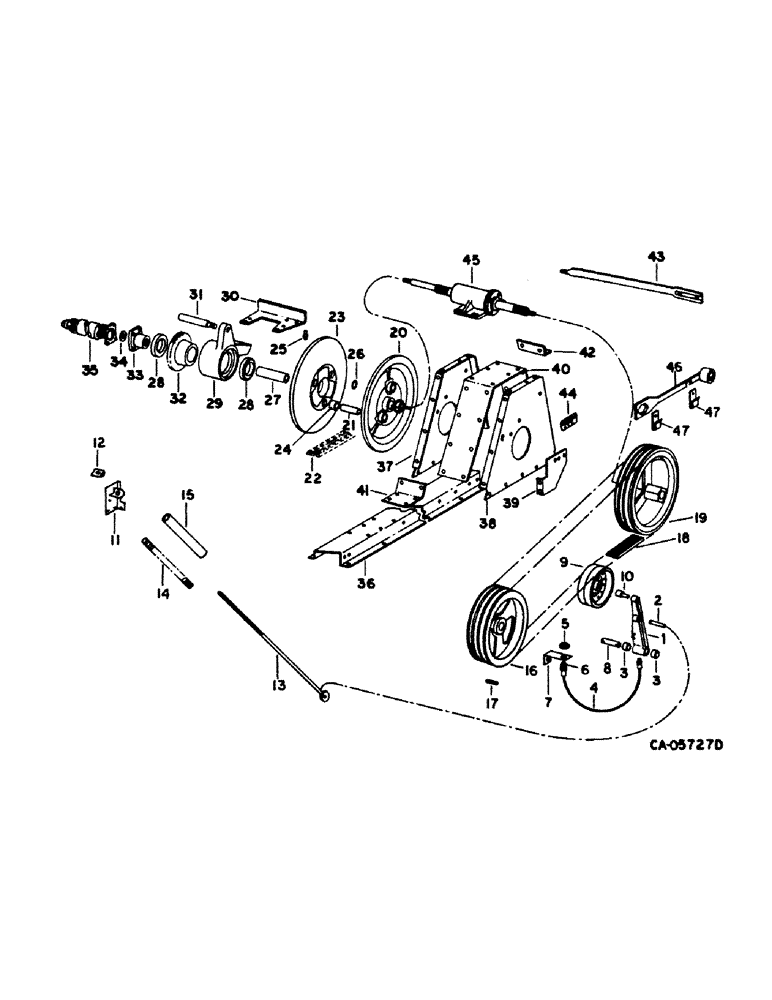

Запчасти Case IH 1480 (07-19) - DRIVE TRAIN, SEPARATOR DRIVE Drive Train

1

188205C92

LEVER

ASSY, drive belt clutch, includes ref nos. 2 and 3

1шт.

2

188207C1

PIN

drive belt clutch lever

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

3

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

drive belt clutch lever, Serial Range: -24000

2шт.

3

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

drive belt clutch lever, Start Serial: 24001

2шт.

4

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, ,Clutch Lever Lube 0.14" ID x 22.00", Serial Range: -24000

1шт.

5

581873R1

TUBE NUT,4.8 mm Length

clutch lever lub hose, Serial Range: -24000

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str-lub, Serial Range: -24000

1шт.

7

178950C1

ANGLE

SUPPORT, clutch lever hose, Serial Range: -24000

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

8

1315229C2

PIN,25.4mm OD x 135mm L

separator clutch arm

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

9

174757C1

PULLEY

separator belt idler, 8 in. OD, 203.2mm OD

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

drive belt idler pulley tightener pivot

1шт.

11

191799C1

SUPPORT

ASSY, drive belt tightener pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

12

194652C1

PIVOT

BAR, drive tightener bolt

1шт.

13

191592C1

EYEBOLT,Hex, 1/2" - 13 x 813mm

BOLT, drive tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

14

PO121

SPRING

belt tightener rod

1шт.

15

193286C1

TUBE

drive belt tightener spring

1шт.

16

191463C1

PULLEY

separator drive, 11 in. OD, 279.4mm OD

1шт.

17

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 2-3/4

1шт.

18

191244C1

BELT,0.63" W x 145.75" L, 3 Ribs

V-BELT , Separator drive, OC 0.630" W x 145.75" L, 3 Ribs

1шт.

19

PULLEY, separator jackshaft driven, refer to this group under jackshaft bearing, block or straw chopper separator drive

1шт.

20

193622C92

PULLEY ASSY.

PULLEY ASSY, rotor drive stationary, 17.5 in. OD, 444.5mm OD, includes ref no. 21

1шт.

21

191544C2

PIN,28.48mm OD x 127mm L

rotor variable drive, refer to group 21 under rotor drive

1шт.

23

193620C92

PULLEY ASSY.

PULLEY ASSY, rotor drive variable, 17.5 in. OD, 444.5mm OD, includes ref no. 24

1шт.

24

194665C1

BUSHING

variable drive pulley

3шт.

25

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 str self tap

2шт.

26

382432R1

O-RING,1.984" ID x 0.139" Width

RING, rotor drive pulley

2шт.

27

191549C2

SLEEVE

rotor jackshaft

1шт.

28

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

BEARING, jackshaft thrust

2шт.

29

194394C1

HUB

FITTING, variable pulley female

1шт.

30

188309C2

SUPPORT

variable pulley limit switch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

31

194496C2

LARGE PIN

STUD, variable stop

1шт.

280954

NUT,3/4"-10, G5

1шт.

32

194464C2

SPROCKET

variable pulley male, 25T

1шт.

33

191542C2

SPLINED COUPLING,12T

COUPLING, universal joint

1шт.

34

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

separator jackshaft

1шт.

35

191596C91

DRIVE SHAFT

JOINT ASSY, universal drive

1шт.

1300502C1

KIT

JOURNAL AND BEARING KIT ASSY

1шт.

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

2шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 type 8

1шт.

36

194423C1

SUPPORT

ASSY, jackshaft, Serial Range: -24000

1шт.

36

181173C1

SUPPORT

ASSY, jackshaft, and below w/straw chopper, Start Serial: 24001

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

37

194081C2

SUPPORT ASSY.

SUPPORT, separator jackshaft LH, Serial Range: -24000

1шт.

37

181175C1

SUPPORT

separator jackshaft LH, for combines, Start Serial: 24001

1шт.

37

181175C1

SUPPORT

separator jackshaft LH, w/straw chopper, Serial Range: -24000

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

38

194082C2

SUPPORT

separator jackshaft RH, Serial Range: -24000

1шт.

38

181176C1

SUPPORT

separator jackshaft RH, for combines, Start Serial: 24001

1шт.

38

181176C1

SUPPORT

separator jackshaft RH, w/straw chopper, Serial Range: -24000

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

39

183153C91

SUPPORT

jackshaft bottom, includes ref no. 44, Serial Range: -24000

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

40

194083C2

SUPPORT ASSY.

SUPPORT, jackshaft top, Serial Range: -24000

1шт.

40

181177C1

SUPPORT

jackshaft top, w/ straw chopper, Serial Range: -24000

1шт.

40

181177C1

SUPPORT

jackshaft top, for combines, Start Serial: 24001

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

41

194435C1

SUPPORT ASSY.

SUPPORT, separator jackshaft, Serial Range: -24000

1шт.

41

181178C1

SUPPORT

separator jackshaft, w/ straw chopper, Serial Range: -24000

1шт.

41

181178C1

SUPPORT

separator jackshaft, for combines, Start Serial: 24001

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

42

194517C2

ANGLE

jackshaft support rear, Serial Range: -24000

1шт.

42

181172C1

SUPPORT

ANGLE, jackshaft support rear, w/straw chopper, Serial Range: -24000

1шт.

42

181172C1

SUPPORT

ANGLE, jackshaft support rear, for combines, Start Serial: 24001

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

43

191949C1

ROD

separator jackshaft support, Serial Range: -24000

1шт.

43

181171C1

ROD

separator jackshaft support, w/straw chopper, Serial Range: -24000

1шт.

43

181171C1

ROD

separator jackshaft support, for combines, Start Serial: 24001

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

425-110

5/8-NF type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25742R1

WASHER

.531 x .750 x .105

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

44

188186V1

PRODUCT GRAPHIC, caution, two speed gear case

1шт.

45

Refer to this group under jackshaft bearing block or straw chopper separator drive

1шт.

46

1307617C1

SPECIAL WRENCH

WRENCH ASSY, rocking, replaces 184730C1

1шт.

47

193332C1

CLIP

rocking wrench

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
