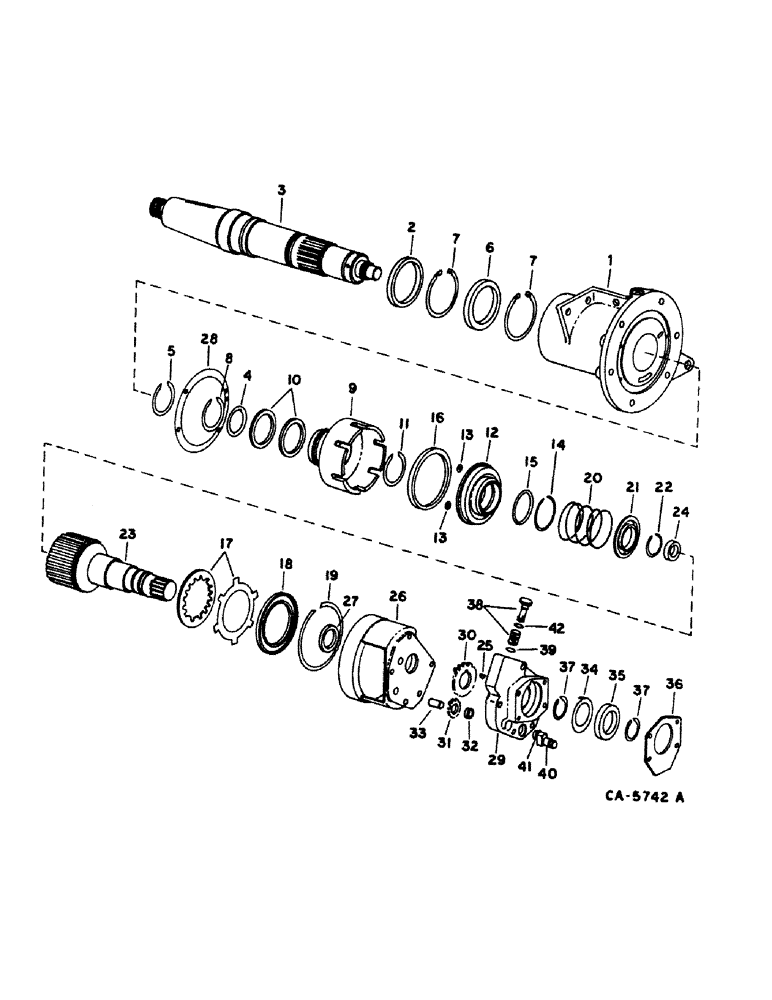

Запчасти Case IH 1480 (07-17) - DRIVE TRAIN, PTO CLUTCH ASSEMBLY Drive Train

191415C92

CLUTCH

ASSY, separator drive, for grain, Serial Range: -15186

1шт.

181056C95

CLUTCH ASSEMBLY

CLUTCH ASSY, separator drive, for grain, for al rice combine, for combines w/serial no. and below, when servicing complete clutch assy, also order pin 1315229C1, includes ref nos. 1 thru 41, Start Serial: 15187

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

1

1315230C92

HOUSING

clutch, replaces 188211C1

1шт.

1315229C2

PIN,25.4mm OD x 135mm L

1шт.

2

188252C1

SEAL,70.8mm ID x 110.13mm OD x 11mm Thk

clutch housing

1шт.

3

188163C1

SHAFT

separator drive clutch

1шт.

Ref. 3 - Square rubber sealing ring is 238-7138

1шт.

4

28105R1

O-RING,-138, Cl 7, 2.112" ID x .103" Thk

2-1/8 ID class 7

1шт.

5

357194R1

RING

snap

1шт.

6

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, clutch housing

1шт.

7

895107C1

SNAP RING,#433, 4.641", Int

RING, snap

2шт.

8

271130R1

RING

clutch cup locating snap

1шт.

9

186054C1

CUP

clutch, used with 191415C92

1шт.

9

182789C2

CUP

clutch, used with 181056C93

1шт.

10

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

clutch cup seal

2шт.

11

68625C1

RING

clutch cup retaining snap

1шт.

12

196449C91

PISTON

ASSY, clutch, used with 191415C92

1шт.

12

1302115C91

PISTON

ASSY, clutch, used with 181056C93, includes ref. no. 13

1шт.

13

529376R1

STRAINER ELEMENT

SCREEN, piston orifice

2шт.

14

258400C1

SNAP RING,#187, Ext

Ring, Snap, , clutch piston stop #187, Ext

1шт.

15

26157R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 7, 75 Duro

clutch piston 1-7/8 class 7

1шт.

16

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL, clutch piston oil

1шт.

17

68803C2

KIT

PACKAGE, clutch plates and discs, used with 191415C92, consists of (9) disc driven (NSS), (7) plate clutch (NSS)

1шт.

17

1302156C91

STRIPPER PACKAGE

PACKAGE, clutch plates and disc, used with 181056C93, consists of (10) disc driven (NSS), (9) plate clutch (NSS)

1шт.

18

381491R1

RETAINER

clutch driven disc, used with 191415C92

1шт.

18

139202C1

RETAINER

clutch driven disc, used with 181056C93, replaces 1302117C1

1шт.

19

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING, clutch driven disc snap

1шт.

20

381493R1

SPRING

clutch release

1шт.

21

381494R1

RETAINER

clutch release spring

1шт.

22

370504R1

RING

clutch release spring snap

1шт.

23

68081C2

SHAFT

drive

1шт.

24

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, drive shaft

1шт.

25

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

26

68082C2

HOUSING

CARRIER ASSY, clutch

1шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 PHC type 8

1шт.

27

359950R91

NEEDLE BEARING

BEARING, clutch carrier

1шт.

28

529565R1

GASKET

clutch carrier

1шт.

29

67330C1

HOUSING

clutch pump

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

30

381499R1

PINION

GEAR, clutch pump driver

1шт.

31

381500R1

PINION

GEAR, clutch pump idler

1шт.

32

381501R91

NEEDLE BEARING

pump gear needle

1шт.

33

381502R1

SHAFT

pump gear

1шт.

34

193369C1

RETAINER

pump housing

1шт.

35

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

BEARING, pump housing

1шт.

36

191421C1

BEARING HOUSING

RETAINER, pump housing bearing

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8 type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

555570R1

SNAP RING

RING, pump housing bearing snap

2шт.

38

140591C91

VALVE

ASSY, regulator, used with 191415C92

1шт.

38

69040C92

VALVE

ASSY, regulator, used with 181056C93

1шт.

39

927378C1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

9/16 x 11/16 ID class 8

1шт.

40

188450C1

FITTING

pump connection, replaces 191794C91 by also ordering 381526R1

1шт.

41

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

pump connection fitting

1шт.

42

876107C1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

5/8 OD tube class 8

1шт.
