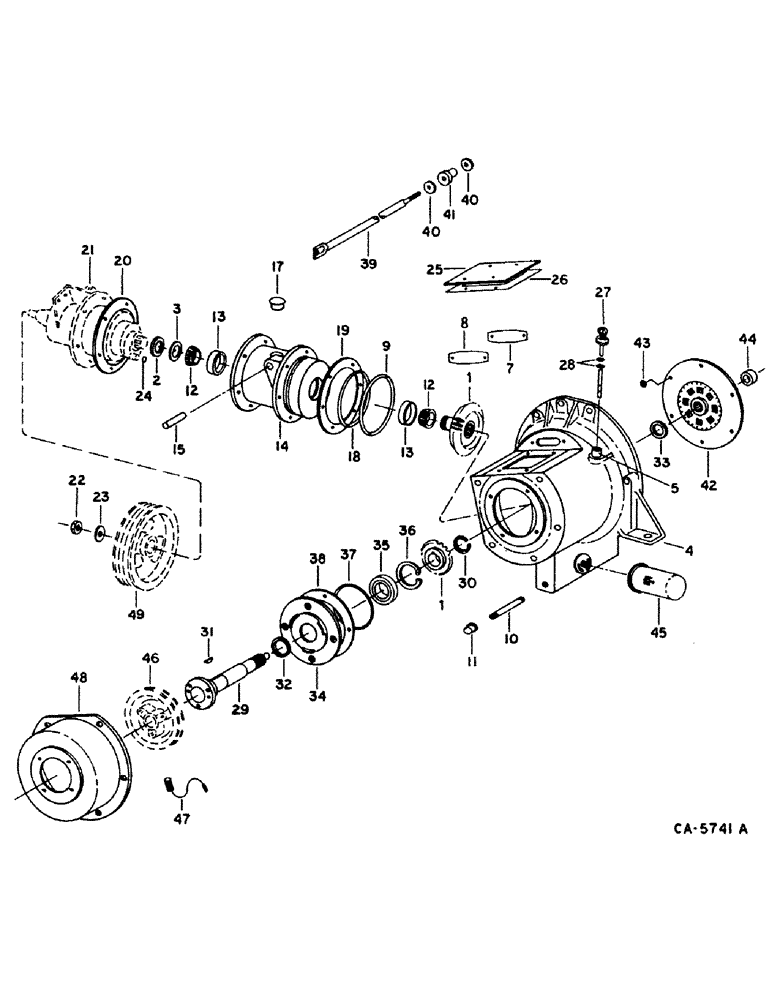

Запчасти Case IH 1480 (07-15) - DRIVE TRAIN, POWER TAKE OFF DRIVE Drive Train

1

191275C1

GEAR-SET

GEAR SET, separator drive, 43T and 28T, matched set

1шт.

2

191283C1

BEARING LOCK NUT

gear bearing lock

1шт.

3

191284C1

LOCK WASHER

gear bearing lock

1шт.

4

188076C91

HOUSING

ASSY, engine PTO, includes ref nos. 5 and 6

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

23276R1

WASHER

.65 x 2.000 x .164

1шт.

5

188072C1

TUBE,25.4 mm OD, 127 mm Length

PTO housing oil gage

1шт.

6

188214C1

FITTING

PTO housing filter

1шт.

7

185057C1

GASKET

bolt hole cover

1шт.

8

185056C1

COVER

bolt hose access

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

27658R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

engine PTO housing

1шт.

10

187249

PIPE,Nipple, 1/2" NPT x 7"

NIPPLE, 1/2 x 7 pipe

1шт.

11

119101

CAP,1/2" NPT

1/2-14 pipe

1шт.

12

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

BEARING, cone

2шт.

13

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, cup

2шт.

14

188161C91

HOUSING

ASSY, separator drive clutch, inc. 15 and 16

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

15

195439C2

PIN,25.29mm OD x 101.6mm L

separator clutch housing

1шт.

Ref. 15 - The lever for this pin is located on Page 37, Group 10, ref. 9 - part number 192946C92

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

16

318300R1

PLUG,Cup, 1"

separator clutch housing

1шт.

17

663906R1

CAP

separator clutch housing

1шт.

18

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

separator clutch housing

1шт.

19

SHIM, separator clutch housing, furnish package 188195C1

1шт.

20

188425C1

GASKET

housing, Serial Range: cover-clutch

1шт.

21

CLUTCH ASSY, separator drive, refer to this group under PTO clutch assy

1шт.

22

27008R1

LOCK NUT,1 1/4"-7, GC

NUT, 1-1/4 prev. torque

1шт.

23

27268R1

WASHER,1 3/8" x 3" x 1/4", HDN

1.375 x 3.000 x .250 hardened

1шт.

24

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

pump connecting fitting

1шт.

25

188451C1

COVER

PTO housing

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

26

191830C1

GASKET

PTO cover

1шт.

27

186019C91

DIPSTICK

GAUGE ASSY, PTO engine housing oil, includes ref no. 28

1шт.

28

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

gauge assy

2шт.

29

192816C1

SHAFT

PTO drive

1шт.

30

23483R1

SNAP RING,#200, Ext

Ring, Snap, , PTO drive shaft #200, Ext

1шт.

31

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff

1шт.

32

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

PTO drive shaft

1шт.

33

173559C91

SEAL

PTO drive shaft

1шт.

34

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB, PTO drive shaft brg housing

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

35

ST297

BEARING, BALL

BEARING, PTO drive shaft hub

1шт.

36

27822R1

SNAP RING,4.78", Int, #475

Ring, Snap, , PTO drive shaft hub 4.78", Int, #475

1шт.

37

876086C1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

PTO drive shaft hub

1шт.

38

SHIM, PTO drive shaft hub, furnish package 188196C1

1шт.

39

194086C1

ROD

separator drive engine snubber

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

232-46110

LOCK NUT,5/8"-11, GC

NUT, 5/8-NF CAD P/T lock type 8

1шт.

40

107813R1

WASHER

separator drive engine snubber

2шт.

41

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, separator drive engine snubber

1шт.

42

188013C91

PLATE ASSY.,354.33mm OD

PLATE ASSY, PTO drive

1шт.

42

188013C91R

REMAN-CLUTCH PLATE

PTO Drive

1шт.

42

188013C91C

CORE-CLUTCH PLATE

Return Number

1шт.

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 PHC P/T type 8

1шт.

43

406579R1

WASHER

PTO drive plate

6шт.

44

195349C1

BUSHING

PTO flywheel

1шт.

45

70203C1

FILTER

PTO oil

1шт.

46

PULLEY, auxiliary pump drive, refer to group 10 under auxiliary hydraulic pump

1шт.

47

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range: -24000

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF CAD stamped

1шт.

47

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Start Serial: 24001

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 ZN stamped

1шт.

48

186774C1

HOUSING

hydrostatic pump, Serial Range: -24000

1шт.

48

1303141C1

HOUSING

hydrostatic pump, Start Serial: 24001

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

49

PULLEY, separator drive, refer to this group under separator drive

1шт.

184337C91

DISC

PACKAGE, clutch oil, consists of (1) disc (NSS), (1) plate assy (NSS), (1) instructions (NSS)

1шт.

188195C1

SHIM KIT

PACKAGE, separator clutch housing shim, consists of (1) shim .005 (NSS), (1) shim .007 (NSS), (1) shim .010 (NSS), (1) shim .030 (NSS)

1шт.

188196C1

SHIM KIT

PACKAGE, PTO drive shaft hub shim, consists of (1) shim .005 (NSS), (1) shim .007 (NSS), (1) shim .010 (NSS), (1) .030 shim (NSS)

1шт.
