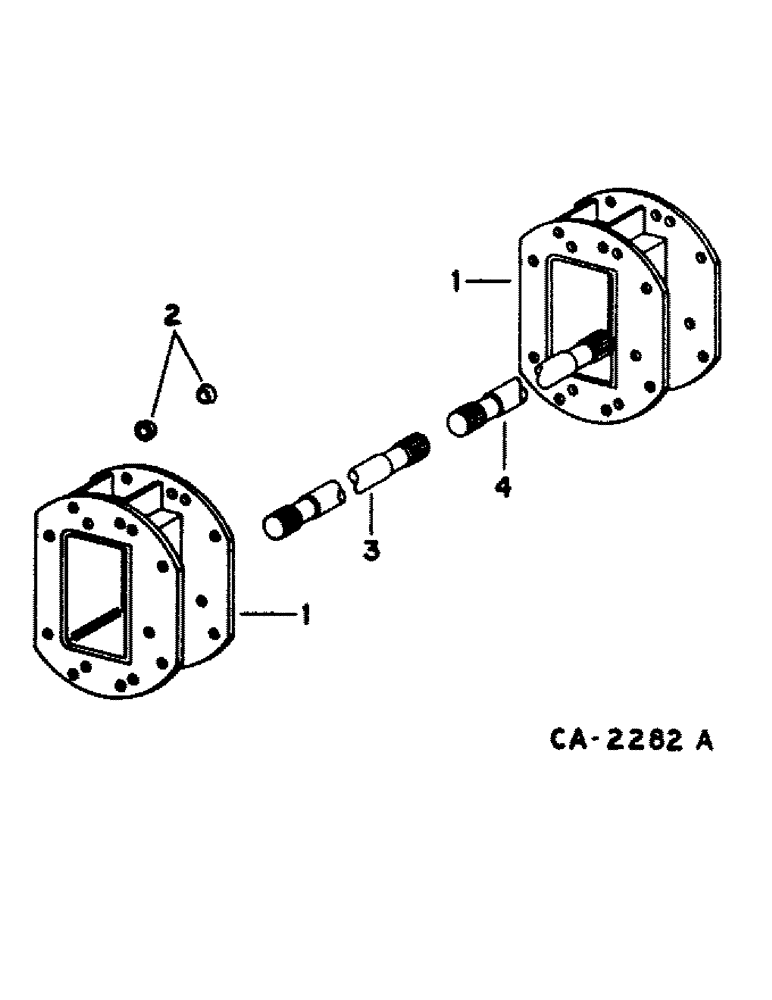

Запчасти Case IH 1480 (07-10) - DRIVE TRAIN, MAIN AXLE EXTENSION Drive Train

1

177345C2

EXTENSION

ASSY, drive axle

2шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

3/4 x 2-1/2 type 8

1шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

1шт.

131167

WASHER, LOCK,3/4"

3/4"

1шт.

25712R1

WASHER

.812 x 1.500 x .179 HDN

1шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

DOWEL, extension end plate

8шт.

3

193995C1

SHAFT

LH axle drive, Serial Range: -34000

1шт.

3

184188C1

SHAFT

LH axle drive, Start Serial: 34001

1шт.

4

193995C1

SHAFT

RH axle drive, Serial Range: -34000

1шт.

4

184188C1

SHAFT

RH axle drive, Start Serial: 34001

1шт.
