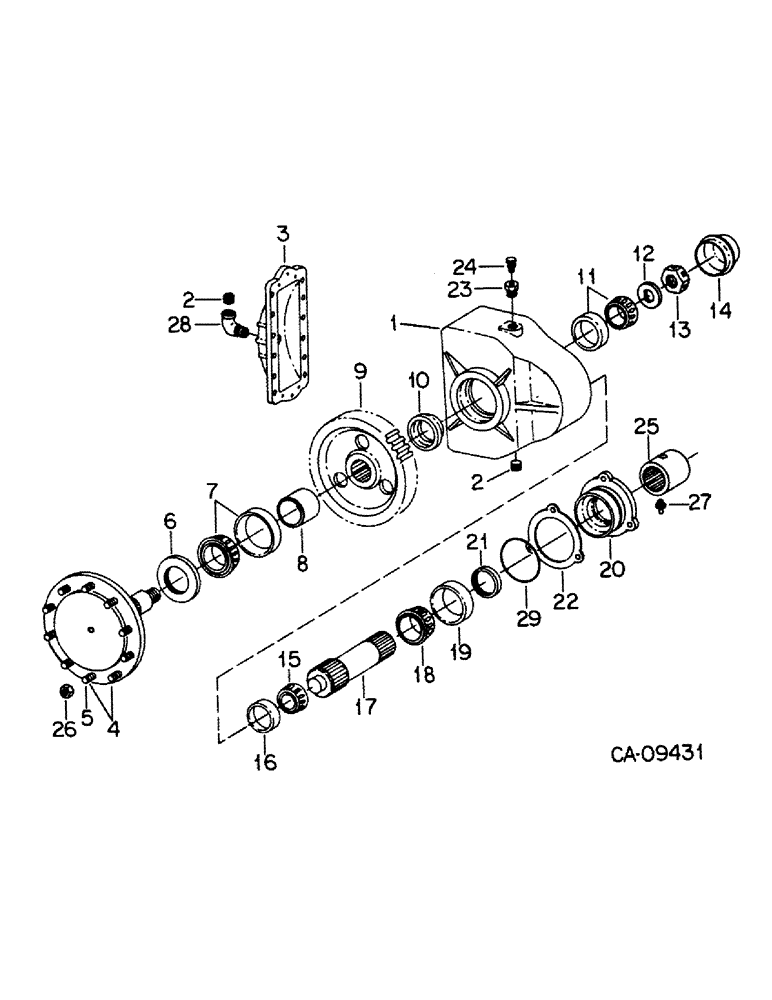

Запчасти Case IH 1480 (07-09) - DRIVE TRAIN, FINAL DRIVE, WITH 1 PIECE FORGED DRIVE SHAFT Drive Train

92770C92

DRIVE

DRIVE ASSY, final, includes ref. no. 1 thru 22

1шт.

92770C92R

REMAN-TRANSMISSION

Remanufactured Final Drive; For N.A. only

1шт.

92770C92C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

BOLT, 3/4 x 2 type 8

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

BOLT, Hex, 3/4"-10 x 2 1/4", G8

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25712R1

WASHER

WASHER, .812 x 1.50 x .179 HDN

1шт.

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

BUSHING, main axle end plate

4шт.

1

86851C2

HOUSING

HOUSING, final drive

2шт.

2

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 pln sq-skt auto pipe

3шт.

3

86839C2

COVER

COVER, final drive housing

2шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

BOLT, Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1шт.

26273R1

WASHER

WASHER, .531 x 1.062 x .134 PHC HDN

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASHER, .406 x .812 x .089 PHC HDN

1шт.

4

1315484C91

SHAFT

SHAFT ASSY, final drive

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

BOLT, wheel

20шт.

6

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

SEAL, outer bearing cage

1шт.

7

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

BEARING ASSY, shaft outer

2шт.

8

130809C1

SPACER

SPACER, gear outer

2шт.

9

130885C1

GEAR

GEAR, drive, 66T

2шт.

10

130808C1

SPACER

SPACER, final drive

2шт.

11

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

BEARING ASSY, shaft inner

2шт.

12

403896R1

WASHER

WASHER, final drive

1шт.

13

147030R1

SLOTTED NUT

NUT, shaft

2шт.

17233R1

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

14

403895R1

COVER

COVER, main shaft

2шт.

15

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

BEARING ASSY, pinion shaft outer cone

2шт.

16

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

BEARING, pinion shaft outer cup

2шт.

17

130884C1

SHAFT

SHAFT, pinion

2шт.

18

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

BEARING ASSY, inner cone

2шт.

19

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

BEARING, inner cup

2шт.

20

94649C1

CAGE

CAGE, pinion inner bearing

2шт.

21

196452C1

OIL SEAL

SEAL, bearing cage oil

2шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

BOLT, Hex, 5/8"-11 x 1 1/4", G8, Full Thd

1шт.

22

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

SHIM, pinion inner brg, 0.0762mm

1шт.

22

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

SHIM, pinion inner brg, 0.127mm

1шт.

22

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

SHIM, pinion inner brg, 0.178mm

1шт.

22

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

SHIM, pinion inner brg, 0.762mm

1шт.

23

21276R1

ADAPTER,3/4" NPT Male x 1/8" NPT Fem

ADAPTER, 3/4 to 1/8 pln out/h/hd pipe

2шт.

24

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING, 1/8PTF short w/felt washer lub

2шт.

25

184341C1

SLEEVE

COUPLING ASSY, axle drive shaft

1шт.

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

BOLT, 3/8 x 3-1/2 DLD type 8

1шт.

21864R1

COTTER PIN

PIN, #100 roller chain "S"

1шт.

654049R1

LOCK NUT

NUT, 3/8 flex

1шт.

26

25632R1

NUT,3/4"-16, G8

NUT, wheel bolt

2шт.

25548R1

WASHER

WASHER, .812 x 1.500 x .219 PHC HDN

1шт.

27

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

4шт.

28

141621

ELBOW,90 Degree, 3/4" NPT Street

ELBOW, 3/4 pln 90D pipe street

1шт.

29

(Not used)

1шт.

SB 5029 about Final Drive Matched Bearings.

1шт.
