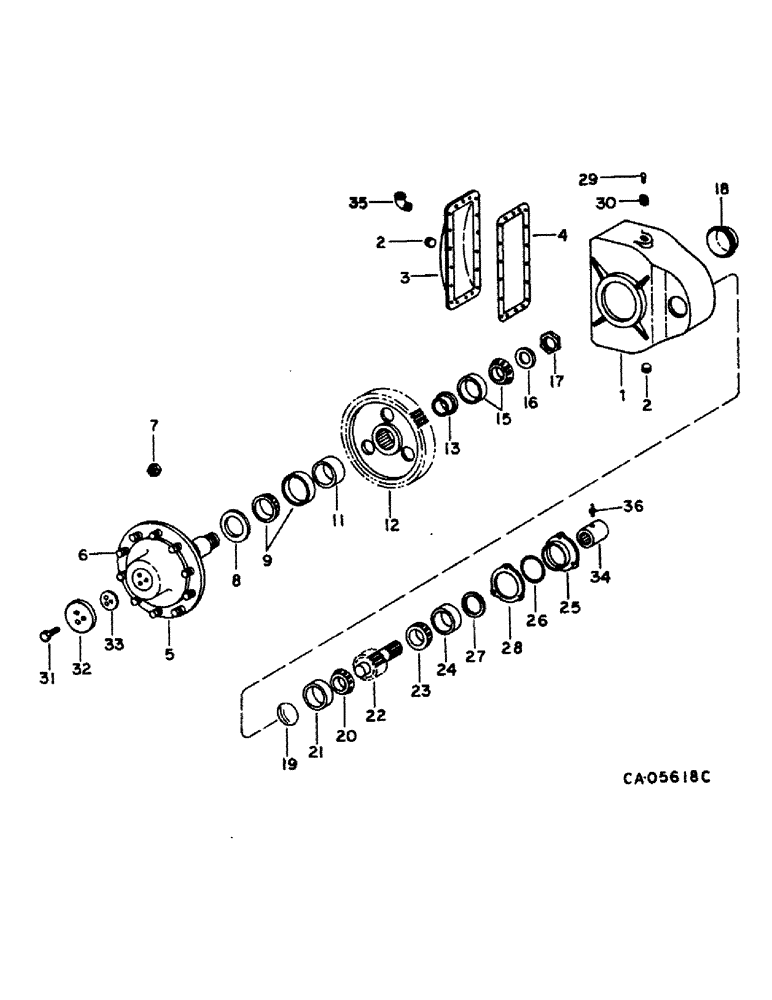

Запчасти Case IH 1480 (07-07) - DRIVE TRAIN, FINAL DRIVE, WITH 2 PIECE DRIVE SHAFT Drive Train

DRIVE ASSY, final 130757C93, order 92770C92

2шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 type 8

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25712R1

WASHER

.812 x 1.500 x .179 HDN

1шт.

1

86851C2

HOUSING

final drive, replaces 401901R3, see note

2шт.

2

NLS

NO LONGER SERVICED

3/4-14 auto sq-hd pipe

6шт.

3

403894R2

COVER ASSY

housing

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

4

196435C1

GASKET

final drive housing cover

2шт.

5

1315484C91

SHAFT

final drive, replaces 130880C92, includes ref. nos. 6, 31, 32 and 33

2шт.

6

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

20шт.

7

25632R1

NUT,3/4"-16, G8

3/4-16 wheel bolt

20шт.

25548R1

WASHER

.812 x 1.500 x .219 PHC HDN

1шт.

8

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

outer bearing cage

2шт.

9

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

ASSY, shaft roller, replaces cone 283444C91 & cup 18241H

2шт.

10

(Not used this application)

1шт.

11

130809C1

SPACER

gear outer

2шт.

12

130885C1

GEAR

drive, 66 T

2шт.

13

130808C1

SPACER

final drive

2шт.

14

(Not used this application)

1шт.

15

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

ASSY, shaft inner, replaces cone 66117R91 & cup 54404R1

2шт.

16

403896R1

WASHER

WASHER, final drive

2шт.

17

147030R1

SLOTTED NUT

shaft 2-13 NS thread

2шт.

17233R1

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

18

403895R1

COVER

main shaft

2шт.

19

(Not used in this application)

1шт.

20

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

BEARING ASSY, pinion shaft outer cone

2шт.

21

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

BEARING, pinion shaft outer cup

2шт.

22

130884C1

SHAFT

pinion

2шт.

23

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

inner cone

2шт.

24

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

BEARING, inner cup

2шт.

25

130886C1

CAGE

pinion inner bearing

2шт.

26

257642R1

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

4-3/8 x 4-5/8 x 1/8

2шт.

27

196452C1

OIL SEAL

bearing cage

2шт.

26678R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 PHC P/T type 8

1шт.

28

401915R1

SHIM

pinion inner bearing, .003

1шт.

28

401916R1

SHIM

pinion inner bearing, .005

1шт.

28

401917R1

SHIM

pinion inner bearing, .007

1шт.

28

184033C1

SHIM

pinion inner bearing, .030

1шт.

29

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY, oil

4шт.

30

21276R1

ADAPTER,3/4" NPT Male x 1/8" NPT Fem

REDUCER, 3/4 x 1/8 pipe

4шт.

31

875933C1

BOLT,Hex, 5/8" - 11 x 2 1/4", Drilled

axle retaining 5/8 x 2.50, for use with final drive shaft 130880C92

6шт.

31

28103R1

BOLT,Hex, 1" - 8 x 3 3/4", Gr 8

1 x 3-3/4 PHC P/T type 8, for use with final drive shaft 1277042C93

2шт.

32

121797C1

WASHER

final drive shaft, for use with final drive shaft 130880C92

2шт.

32

1277033C1

WASHER

final drive shaft, for use with final drive shaft 1277042C93

2шт.

28103R1

BOLT,Hex, 1" - 8 x 3 3/4", Gr 8

1 x 3-3/4 PHC P/T type 8

1шт.

33

121798C1

SHIM

final drive shaft, .015

1шт.

33

121799C1

SHIM

final drive shaft, .018

1шт.

33

121800C1

SHIM

final drive shaft, .021, for use with final drive shaft 130880C92

1шт.

33

1277039C1

SHIM

final drive shaft, .015

1шт.

33

1277040C1

DISC

SHIM, final drive shaft, .018

1шт.

33

1277041C1

SHIM

final drive shaft, .021, for use with final drive shaft 1277042C93

1шт.

34

401875R5

SLEEVE

axle drive shaft, includes ref. no. 36, Serial Range: -34000

1шт.

34

184341C1

SLEEVE

axle drive shaft, includes ref. no. 36, Start Serial: 34001

1шт.

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

3/8 x 3-1/2 DLD type 8

1шт.

654049R1

LOCK NUT

3/8-16 pln slt-hex

1шт.

21864R1

COTTER PIN

#100 roller chain "S"

1шт.

35

141621

ELBOW,90 Degree, 3/4" NPT Street

90 deg, req'd for high clear position

1шт.

36

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 lub

1шт.

NOTE - TO REPLACE HOUSING 401901R3 ORDER THE FOLLOWING:

1шт.

86851C2

HOUSING

1шт.

86839C2

COVER

1шт.

94649C1

CAGE

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

12шт.

26273R1

WASHER

.531 x 1.062 x .134 PHC HDN

12шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

6шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 PHC HDN

6шт.

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

1шт.

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

1шт.

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

1шт.

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

1шт.

SB 5029 about Final Drive Matched Bearings.

1шт.
