Запчасти Case IH 1480 (07-06) - DRIVE TRAIN, MAIN AXLE Drive Train

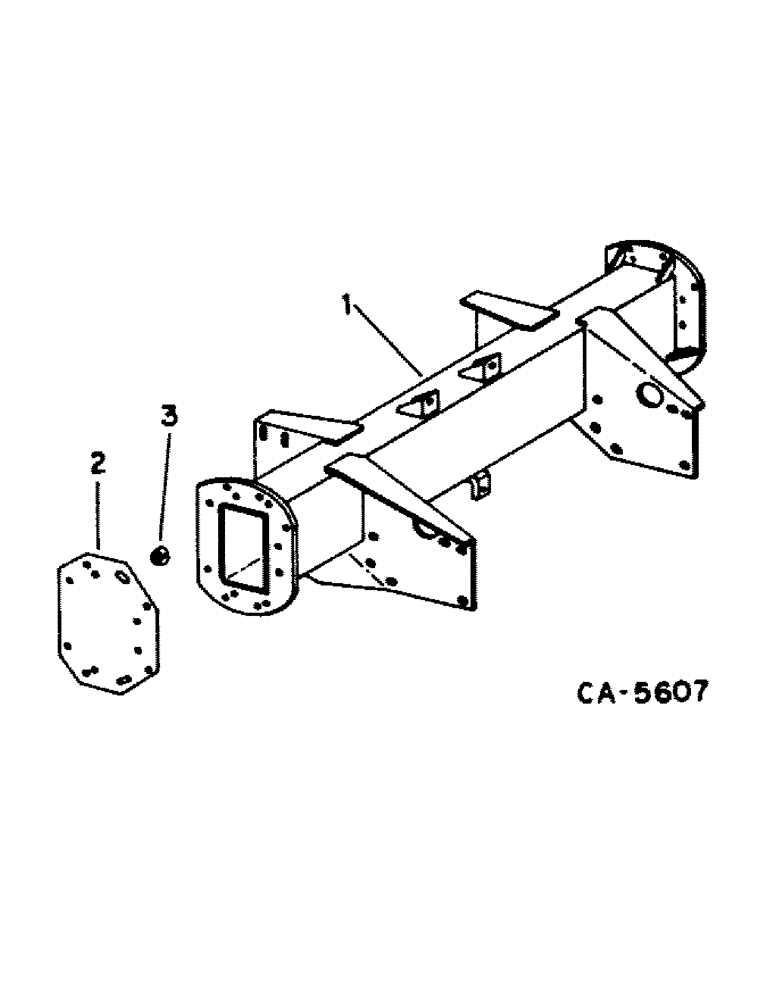

Схема запчастей Case IH 1480 - (07-06) - DRIVE TRAIN, MAIN AXLE Drive Train
2
3
1

Артикул

Название

Примечание

Количество

1

1302437C1

AXLE

ASSY, main, for grain, corn and rice rubber tire

1шт.

1

1302714C1

AXLE

ASSY, main hi-clear, for rice track

1шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 PHC flange lock type 8

1шт.

2

177336C1

COVER

main axle end plate

2шт.

3

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

main axle end plate

4шт.

Выбрано товаров: 6
