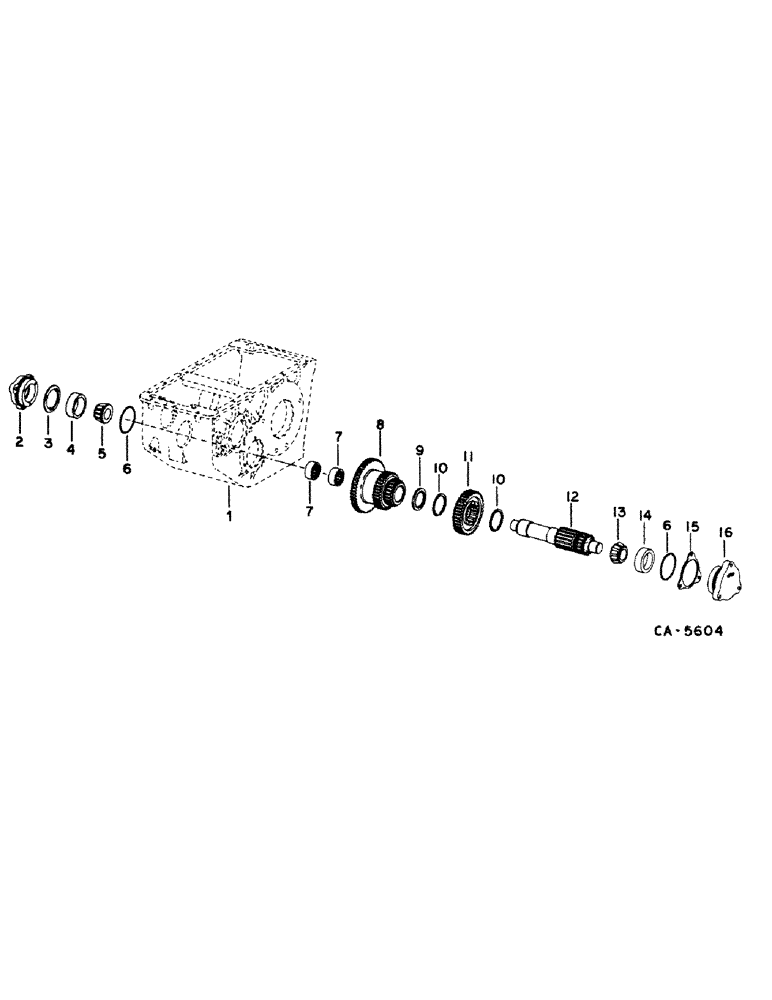

Запчасти Case IH 1480 (07-03) - DRIVE TRAIN, TRANSMISSION DIFFERENTIAL PINION SHAFT AND GEARS Drive Train

1

CASE, transmission, refer to this group under transmission, differential shaft and gears

1шт.

2

188893C1

BEARING COVER,59.75 mm ID x 101.51 mm OD x 47.5 mm

CAGE, bearing cap LH

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

3

530704R1

THRUST WASHER

WASHER, thrust

1шт.

4

131312C1

BEARING CUP

CUP, differential pinion shaft bearing, replaces 871245R1

1шт.

5

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

CONE, differential pinion shaft brg, replaces 871244R91

1шт.

6

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8

2шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING, spool gear

2шт.

8

530699R1

PINION

GEAR, spool, 59-39-27 T

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

spool gear

1шт.

10

196693H1

RING

change driven gear snap

2шт.

11

130752C1

GEAR

change driven, 39T, for grain, for rice track

1шт.

11

130750C1

GEAR

change driven, 42T, for corn and rice, for rice rubber

1шт.

12

401878R1

SHAFT

AND GEAR, differential pinion, 14T

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CONE ASSY, differential pinion shaft brg

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP, differential pinion shaft bearing

1шт.

15

401883R1

SHIM

bearing cap retainer, .003

1шт.

15

401884R1

SHIM

bearing cap retainer, .005

1шт.

15

401885R1

SHIM

bearing cap retainer, .007

1шт.

15

184195C1

SHIM

bearing cap retainer, .030

1шт.

16

403363R1

BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm

CAGE, bearing cap RH

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

1шт.
