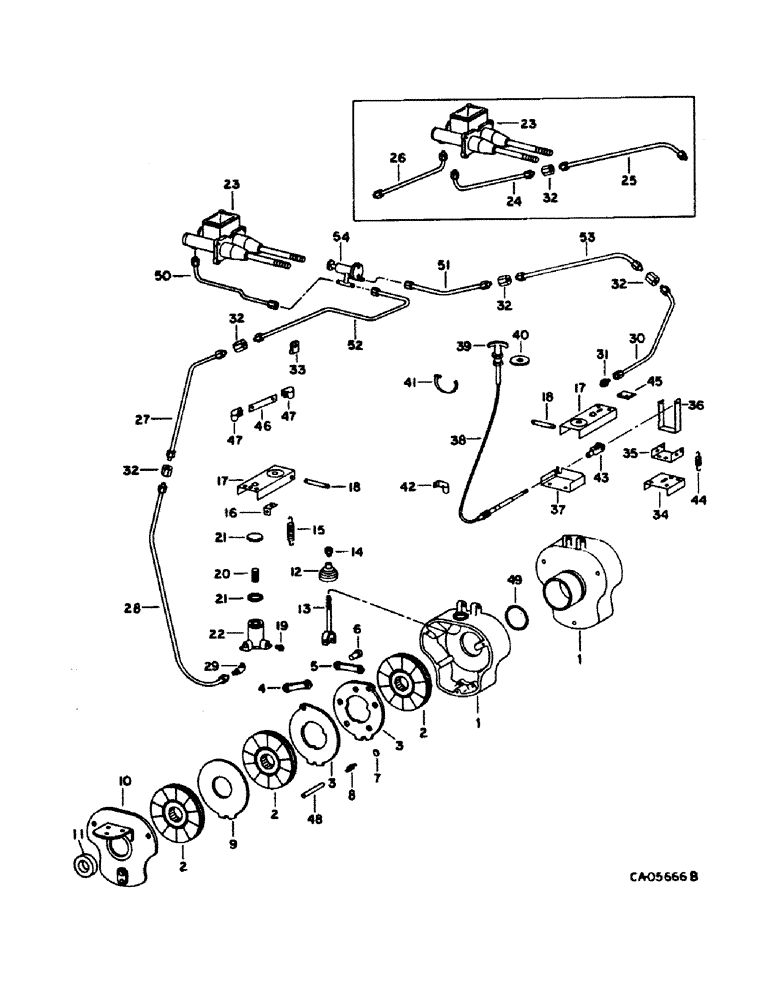

Запчасти Case IH 1480 (04-05) - BRAKE, MASTER AND PARKING BRAKES, SERIAL NO. 34000 AND BELOW (5.1) - BRAKES

1

184149C1

HOUSING

brake, replaces 404088R2

2шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4 pln type 5

1шт.

27434R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 PHC P/T type 8

1шт.

2

121963C91

BRAKE DISC

DISC ASSY, middle

6шт.

3

401868R91

BRAKE DISC

DISC ASSY, actuating, includes ref. nos. 4 thru 8

2шт.

4

369237R1

LINK

actuating plain

2шт.

5

369237R1

LINK

actuating, plain

2шт.

6

369238R1

BOLT,3/8" - 24 x 1 3/8", HT

STUD, actuating

4шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

7

17028R1

BALL,7/8" Dia

10шт.

8

619731C1

SPRING

extension

6шт.

9

401870R1

DISC

intermediate

2шт.

10

401871R11

COVER

ASSY, brake housing adapter

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

11

401872R91

SEAL,73.03mm ID x 110.24mm OD x 11.1mm Thk

brake housing adapter cover

2шт.

12

381699R1

BOOT

brake housing

2шт.

13

162323C91

ROD

ASSY, brake pull

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

354630R1

NUT

brake pull rod

2шт.

271506

DISC

7/16-NF type 5

1шт.

15

168567C1

SPRING

brake lever return

2шт.

16

179218C1

ANGLE

brake lever return spring, Serial Range: -24000

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

188888C1

LEVER

ASSY, brake

2шт.

18

162329C1

PIN

wheel brake lever

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

19

660901R1

VALVE

wheel brake cyl bleeder

2шт.

20

662612R1

SPRING

wheel brake cup

2шт.

21

51906H

CUP

wheel brake cyl piston rubber

4шт.

22

CYLINDER, wheel brake

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

167691C92

KIT

ASSY, wheel brake cylinder, consists of (1) boot, (2) cup 51906H, (1) cylinder, (1) piston, (1) plunger, (1) spacer, (1) spring 662612R1

1шт.

23

CYLINDER ASSY, master brake, refer to this group under master brake control

1шт.

24

1301204C1

TUBE,0.25" OD, 2.5, 2.5" Length

ASSY, brake RH upper to master brake cylinder, Serial Range: -24000

1шт.

25

(Not used in this application)

1шт.

26

1301205C1

TUBE

ASSY, brake LH upper to master brake cylinder, Serial Range: -24000

1шт.

27

(Not used in this application)

1шт.

28

187818C2

TUBE

ASSY, LH brake lower to wheel brake cylinder

1шт.

29

442362

PIPE FITTING

CONNECTOR, 1/8-27 znd inverted flared tube

1шт.

30

187820C1

TUBE

ASSY, RH brake lower to wheel brake cylinder

1шт.

31

442362

PIPE FITTING

CONNECTOR, 1/8-27 inverted flared

1шт.

32

442336

SUPPORT TUBE

UNION, 7/16-24 brass hyd tube

2шт.

33

515-2863

CLAMP,1/4", 3/8" Bolt

CLIP, hyd ube, for 1/4 OD tube, replaces 573674R1

2шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

34

193294C1

CHANNEL

parking brake ratchet

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

35

193295C1

CHANNEL

parking brake ratchet pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

36

193296C1

QUADRANT

SECTOR, parking brake ratchet

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

37

193297C1

BRACKET

SUPPORT, parking brake cable

1шт.

38

166149C91

CABLE

ASSY, parking brake, 125 in. 3175.0mm

1шт.

39

170273C1

HANDLE

brake control cable

1шт.

40

166817C1

WASHER

parking brake warning light switch

1шт.

41

702093C1

CABLE TIE

CLAMP, brake cable

5шт.

42

370383R1

CLIP

brake cable

1шт.

43

117824

YOKE

CLEVIS, no. 10-32 C-Z adj rod

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1.031 clevis

1шт.

44

271199R1

SPRING

parking brake ratchet

1шт.

45

165222C1

BAR

parking brake ratchet

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

46

(Not used in this application)

1шт.

47

(Not used in this application)

1шт.

48

22274R1

DOWEL,7/8" x 5"

PIN, 7/8 x 5 dowel

2шт.

49

22292R1

O-RING,4.725" ID x 5.275" OD x 0.275"

4-3/4 x 5-1/4 x 1/4

2шт.

50

1310637C1

TUBE,0.25" OD, 11.8, 2.4" Length

ASSY, master brake cyl to equalizer valve, Start Serial: 24001

2шт.

51

1301862C2

TUBE

ASSY, brake upper, Start Serial: 24001

2шт.

52

1310638C1

TUBE

valve to inter. brake LH, Start Serial: 24001

1шт.

53

1310639C1

TUBE

valve to inter. brake RH, Start Serial: 24001

1шт.

54

VALVE ASSY, equalizer, refer to this group under master brake control

1шт.
