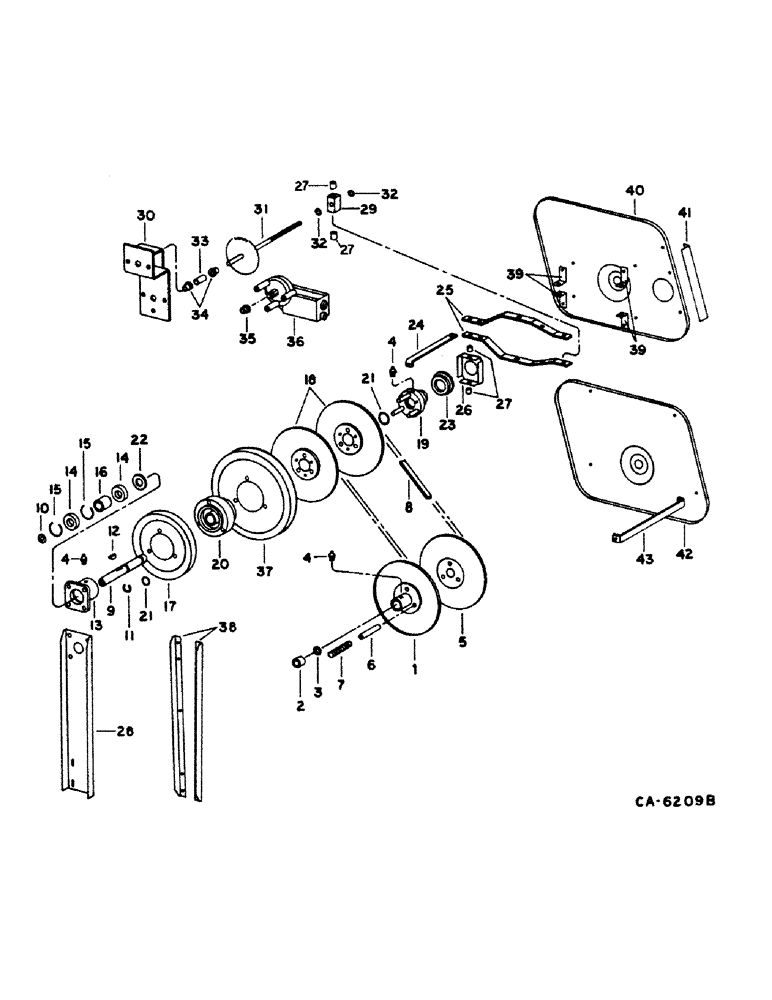

Запчасти Case IH 1480 (24-05) - CLEANING FAN AND DRIVE, FAN DRIVE, SERIAL NO. 14001 AND ABOVE (15) - CLEANING

1

185023C93

PULLEY

ASSY, fan driven adj, 11.24 in. OD, 285.5mm OD, includes ref nos. 2 and 3

1шт.

2

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

driven adj pulley

1шт.

3

537545R92

SEAL

driven adj pulley, replaces 606749R91 and 537545R92, used with pulley 185023C91 and 185023C92 only

1шт.

3

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 class 5, used with pulley 185023C93

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 lub

4шт.

5

185020C2

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, 285.5mm OD, Serial Range: -24851

1шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC HDN

1шт.

5

1309014C1

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, 285.5mm OD, Start Serial: 24852

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 PHC type 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.062 x .188 PHC HDN

1шт.

6

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

fan drive spring

3шт.

7

1302181C2

SPRING

fan drive outer pulley

3шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 x 5 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

8

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

9

194853C3

SHAFT

elevator and fan drive

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

668569R1

WASHER

.344 x 1.500 x .105

1шт.

10

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, fan bearing retainer

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd flange w/scotch grip

1шт.

11

609053R1

SNAP RING,#125, Ext

Ring, Snap, , inner drive bearing #125, Ext

1шт.

12

124554

O-RING

elevator and fan drive shaft

1шт.

13

192418C1

HUB

elevator and fan drive

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 8

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

14

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING, elevator and fan drive

2шт.

15

360936R1

RING

fan drive shaft snap

2шт.

16

152926C1

SPACER

1-5/16 ID x 1-5/8 OD x 1.88

1шт.

17

PULLEY ASSY, fan and elevator jackshaft drive, refer to group 20 under belt drive, RH side

1шт.

18

183288C1

PULLEY

fan driven, 11.24 in. OD, 285.5mm OD

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

19

185286C91

HUB

ASSY, fan driven adj pulley

1шт.

25095R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3.500 pln HDN dowel

1шт.

20

183333C1

HUB

fan driver fixed pulley

1шт.

21

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 ID x 1-1/2 OD x 1/8

1шт.

22

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, fan bearing retainer

1шт.

23

185094C91

BALL BEARING

BEARING, fan jackshaft

1шт.

24

186283C1

SUPPORT

fan drive control

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1.500 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

25

194850C2

SUPPORT

fan control

2шт.

180087

SPRING

5/16 x 2 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

26

194852C2

SUPPORT

fan driver

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

27

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

4шт.

28

(Not used this application)

1шт.

29

181206C1

BLOCK

fan speed control shaft

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

30

181199C1

SUPPORT ASSY.

SUPPORT ASSY, speed control motor

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

181202C1

SHAFT ASSY.

STUD ASSY, adjusting gear shaft

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

22258R1

WASHER

.656 x 1.000 x .027

1шт.

32

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

fan control thrust

2шт.

33

181205C1

SPACER

adjusting gear stud

1шт.

34

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

fan speed control stud

2шт.

35

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

fan speed control motor

1шт.

36

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, fan variable speed

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

PULLEY ASSY, cleaning unit drive, refer to group 20 under belt drive, RH side

1шт.

38

188178C2

BRACKET

ANGLE, fan hub

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

39

194756C2

ANGLE

fan drive pulley shield

4шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

40

194758C2

SUPPORT

fan jackshaft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

41

186089C1

SHIELD

elevator drive idler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

42

194759C3

GUARD

SHIELD, fan drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

43

194760C1

SUPPORT

lower shield

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
