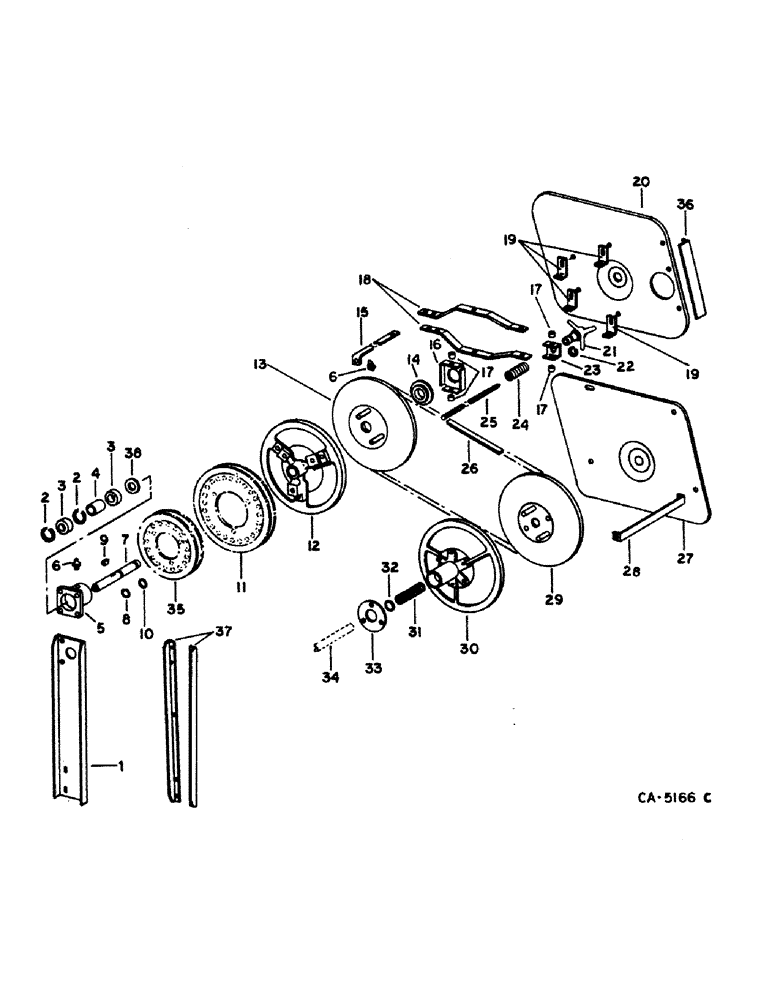

Запчасти Case IH 1480 (24-03) - CLEANING FAN AND DRIVE, FAN DRIVE, SERIAL NO. 14000 AND BELOW (15) - CLEANING

1

(Not used in this application)

1шт.

2

360936R1

RING

fan drive shaft snap

2шт.

3

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING, elevator and fan drive

2шт.

4

152926C1

SPACER

1-5/16 ID x 1-5/8 OD x 1.88

1шт.

5

192418C1

HUB

elevator and fan drive

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lub

1шт.

7

194853C3

SHAFT

elevator and fan drive

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, .53 x 1.5 x .18

1шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

9

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

10

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 ID x 1-1/2 OD x 1/8

1шт.

11

PULLEY ASSY, cleaning unit drive, refer to group 20 under belt drive, RH side

1шт.

12

194660C2

PULLEY

fan driver fixed, 11.00 in. OD, 279.4mm OD

1шт.

13

194854C92

PULLEY

ASSY, fan drive adj, 11.00 in. OD, 279.4mm OD

1шт.

23092R1

DOWEL,1/2" x 2 1/2"

PIN, 1/2 x 2.500 pln HDN dowel

1шт.

14

168215C91

BALL BEARING

BEARING, fan jackshaft

1шт.

15

186283C1

SUPPORT

fan drive control

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1.500 hd type 1

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

194852C2

SUPPORT

fan driver

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.34 x .688 x .051 pln

1шт.

17

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

4шт.

18

194850C2

SUPPORT

fan control

2шт.

120376

NUT,5/16"-18, G5

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

19

194756C2

ANGLE

fan drive pulley shield

4шт.

2021071C

BOLT, 5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

194758C2

SUPPORT

fan jackshaft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

169705C1

HANDLE

fan speed control

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

22

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan speed control handle #100, Ext

1шт.

23

194848C1

YOKE

SUPPORT, fan handle

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

24

12209D

SPRING

fan speed control handle

1шт.

25

194849C1

ROD

fan speed control

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

27

194759C3

GUARD

SUPPORT, fan drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

28

194760C1

SUPPORT

lower shield

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

29

192989C93

PULLEY

ASSY, fan driven fixed, 11.24 in. OD, 285.5mm OD

1шт.

23092R1

DOWEL,1/2" x 2 1/2"

PIN, 1/2 x 2.500 pln HDN dowel

1шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 PHC type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASER, .406 x .812 x .089 PHC HDN

1шт.

30

192294C2

PULLEY

ASSY, fan driven adjustable, 11.24 in. OD, 285.5mm OD

1шт.

31

398698R1

SPRING

fan drive pulley

1шт.

32

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 OD x 1/8

1шт.

33

192299C1

RETAINER

fan drive pulley

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD prevailing torque hex.

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

34

SHAFT, cleaning fan, refer to this group under cleaning fan and shields

1шт.

35

PULLEY ASSY, elevator jackshaft drive, refer to group 20 under belt drive RH

1шт.

36

186089C1

SHIELD

elevator drive idler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

37

188178C2

BRACKET

ANGLE, fan hub

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

38

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, fan bearing retaining

1шт.
