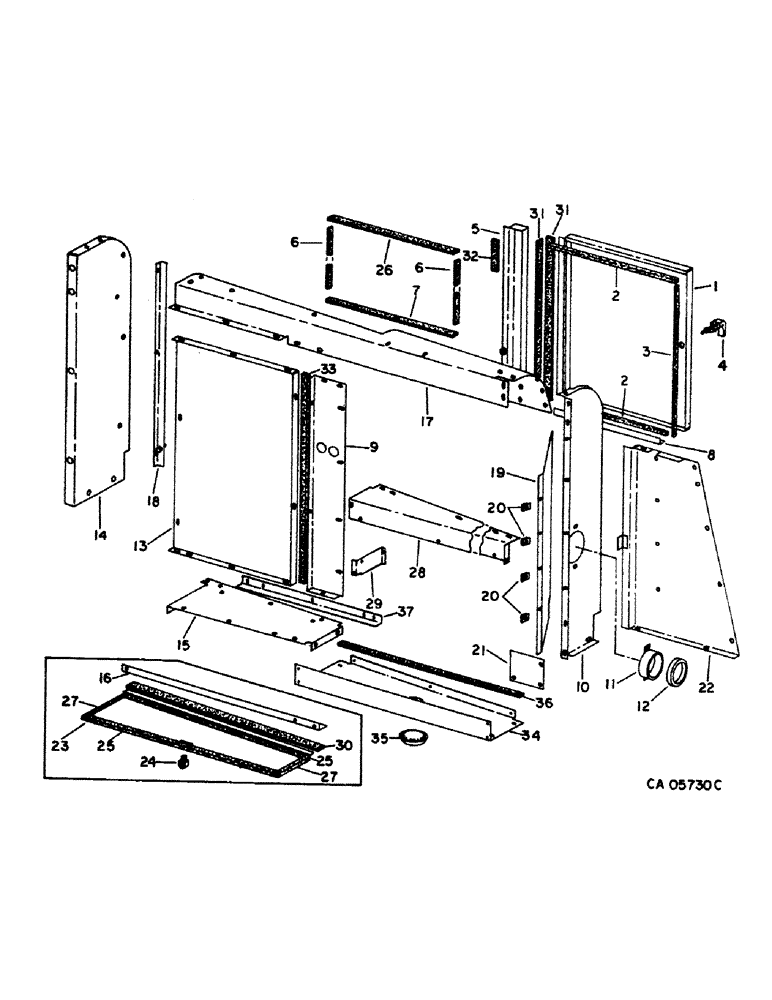

Запчасти Case IH 1480 (06-03) - COOLING, ROTARY AIR SCREEN CHUTE Cooling

1

1302531C1

DOOR

ASSY, radiator access

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

177910C1

SEAL

access door top and bottom seal, use 28.5 in., 724mm

2шт.

3

177910C1

SEAL

access door side seal, use 28.5 in., 724mm

1шт.

4

1302494C2

LATCH

access door, replaces 194617C1

1шт.

5

194295C1

SUPPORT

ASSY, adapter

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

85490H

SPACER

5/8 x .688 tube

1шт.

6

1319431C1

SEALING STRIP

SEAL, adapter rear

2шт.

7

1319431C1

SEALING STRIP

SEAL, adapter side

1шт.

8

186272C1

ANGLE

access door seal bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

186269C2

SUPPORT

radiator left

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

10

186266C3

SUPPORT

chute filler

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

11

188398C1

AIR INTAKE TUBE

TUBE ASSY, air cleaner inlet, not used w/aspirated pre-cleaner pre-screener

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

177869C1

SEAL,4.5" ID x 5.5" OD x 0.5"

SEAL, air cleaner tube, not used w/aspirated pre-cleaner pre- screener

1шт.

13

186268C1

SUPPORT

chute front inner

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

14

186267C4

SUPPORT

chute front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

353404

PLUG, 1/2 in. dia. hole replaces 117675C1

1шт.

15

186270C1

SUPPORT

chute bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

16

188035C1

ANGLE

seal lower, Serial Range: -54000

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

186260C2

CHUTE (DOWNWARD)

CHUTE ASSY, rotary air screen top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

18

188033C1

ANGLE

SUPPORT ASSY, adapter seal front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

85490H

SPACER

5/8 x .688 tube

1шт.

19

186275C1

BAFFLE

air screen intake, not used w/aspirated pre-cleaner pre-screener

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

20

150100C1

SPRING NUT

air intake baffle, not used w/aspirated pre-cleaner pre-screener

4шт.

21

188021C1

BAR

oil cooler filler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

22

186274C1

SUPPORT

RH rear upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

23

186091C1

DOOR

ASSY, radiator cleanout, Serial Range: -54000

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

24

188029C1

LATCH

cleanout door, Serial Range: -54000

1шт.

25

STRIP, cleanout door, use 34 in. piece from bulk stock marked 198573C1, Serial Range: -54000

1шт.

26

177910C1

SEAL

adaptor top, use 34 in., 812.8mm

1шт.

27

198581C2

STRIP

cleanout door front $ rear, (Replaces 143495C1), Serial Range: -54000

2шт.

28

186271C1

SUPPORT

bottom rear outer

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

29

186273C2

SUPPORT

chute middle bottom

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

30

1301236C1

SEALING STRIP

STRIP, clean out door hinge, 30.9 in., 787mm, Serial Range: -54000

1шт.

31

1319431C1

SEALING STRIP

radiator access door hinge, 25.6 in., 650mm

2шт.

32

1319431C1

SEALING STRIP

adapter top rear, 6.5 in., 165mm

1шт.

33

1319431C1

SEALING STRIP

adapter bottom, 30 in., 762mm

1шт.

34

1319677C1

SUPPORT

bottom rear inner, Start Serial: 54001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

35

1302758C1

PLUG

clean out hole, Start Serial: 54001

1шт.

36

STRIP, bottom rear inner support, use 34 in. piece from bulk stock marked 73220C1, Start Serial: 54001

1шт.

37

1319428C1

ANGLE

seal support, Start Serial: 54001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flang lock

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.
