Запчасти Case IH 1480 (21-20) - THRESHING ROTOR AND CONCAVES, CONCAVE AND CONTROL (14) - THRESHING

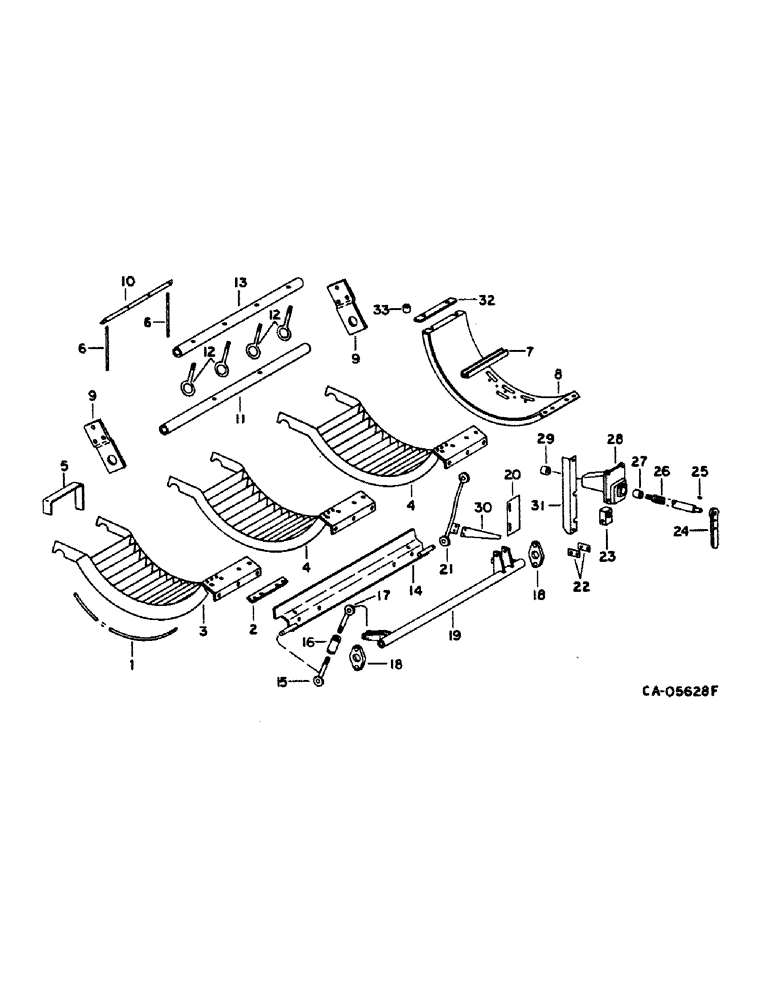

Схема запчастей Case IH 1480 - (21-20) - THRESHING ROTOR AND CONCAVES, CONCAVE AND CONTROL (14) - THRESHING
20
24
11
7
18
16
23
1
32
6
9
6
22
33
21
2
12
4
26
25
18
27
14
10
4
19
8
12
15
13
9
17
30
29
28
31
5
3

Артикул

Название

Примечание

Количество

1

188193C2

ROD

grain concave, 30 per concave, 3/16 in. dia., 4.8mm dia.

1шт.

1

191485C2

ROD

corn concave, 14 per concave, 1/4 in. dia., 6.4mm dia.

1шт.

2

193859C1

PLATE

BAR, concave wire retainer, 2 per concave

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

3/8 x 1 t/hdcr serrated

1шт.

3

1309204C3

CONCAVE

ASSY, front, replaces 195347C6 and 1309499C1, 3/16 in. dia., 4.8mm dia. rod, includes ref. no. 1 & 2

1шт.

3

193782C6

CONCAVE

ASSY, front, replaces 1319003C2 and 1309205C2, 1/4 in dia., 6.4mm dia. rod, includes ref. no. 1 & 2

1шт.

4

1309207C3

CONCAVE

ASSY, no. 2 and 3, replaces 195348C5 and 1319002C1, 3/16 in. dia., 4.8mm dia. rod, includes ref. no. 1 & 2

2шт.

4

193783C5

CONCAVE

ASSY, no. 2 and 3, replaces 1309206C2 and 1319004C1, 1/4 in. dia., 6.4mm dia. rod, includes ref. no. 1 & 2

2шт.

5

1309425C1

CHANNEL

concave filler, for 3/16 in. dia., 4.8mm dial rod

1шт.

5

1309424C1

CHANNEL

concave filler, for 1/4 in. dia., 6.4mm dia. rod

1шт.

6

186776C1

ROD

BOLT, concave truss rod

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

191536C1

CHANNEL

grate adjusting, use w/slotted grate assy

27шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

191535C2

GRATE

ASSY, slotted

3шт.

8

1302563C1

CONCAVE

ASSY, keystock, replaces 182754C3

3шт.

8

1319405C1

GRATE

ASSY, smooth, for sunflower harvesting

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

1302788C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1 1/4", Gr 8

Hex Flg, 3/8"-16 x 1 1/4 inch, Serr

1шт.

9

1302349C1

SUPPORT

concave anchor, replaces 195253C1

2шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT, 1/2 x 1-1/4 type 5 w/scotch grip

1шт.

10

186399C1

SUPPORT

concave truss rod

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

11

186392C1

PIPE

concave control

1шт.

12

195254C1

BOLT,1/2" - 13 x 6"

concave clamp eye

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

13

193790C2

TUBE

PIPE, concave clamp

1шт.

14

191401C1

SUPPORT ASSY.

ANCHOR ASSY, concave anchor

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

15

191409C1

BOLT,1/2" - 13 x 224mm, RH Thd

concave adj RH thread

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

16

M383D

TURNBUCKLE

concave adjusting

1шт.

17

191408C1

BOLT,1/2" - 13 x 224mm, LH Thd

concave adj LH thread

1шт.

18

1319251C2

SUPPORT

HUB, concave control shaft rear

2шт.

18

188351C1

HUB

concave control shaft front

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

19

191422C1

LEVER

ASSY, concave control

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1.438 hd type 1

1шт.

20

188168C1

PLATE

BAR, concave indicator

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

1шт.

21

188344C1

ROD

ASSY, concave control

1шт.

22

192888C1

PLATE

BAR, concave control upper

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22899R1

HEADED PIN,1/2" x 2 3/8"

PIN, HEADED, 1/2" x 2 3/8"

1шт.

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 hd type 1

1шт.

23

192886C1

NUT

concave control adjusting

1шт.

24

170282C1

HANDLE

concave control ratchet

1шт.

25

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

26

192885C1

SHAFT

concave adjusting

1шт.

20033R1

LOCK NUT

NUT, 5/8 CAD P/T lock type 5

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

.656 x 1.312 x .095 PHC HDN

1шт.

27

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

concave control housing

1шт.

28

192883C93

SUPPORT

HOUSING ASSY, concave control, includes ref. nos. 27 and 29

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

29

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

concave control housing

1шт.

30

186329C1

BAR

concave indicator

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

31

182577C1

ANGLE

housing support

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

32

186784C2

BAR

grate hanger

3шт.

33

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Grate and cage bar 1/2" X-Strng Pipe x 9/16"

6шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD P/T lock type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

1300716C91

CHANNEL

PACKAGE, concave filler, for 1/4 in. dia. rod, parts accessory, set of 6 of ref. no. 5

1шт.

1300673C91

PACKAGE

concave filler, for 3/16 in. dia. rod, parts accessory, set of 6 of ref. no. 5

1шт.

SB 034-87 132404C1 Concave interrupter.

1шт.

SB 034.1-87 Revised to include Large Wire.

1шт.
