Запчасти Case IH 1480 (21-19) - THRESHING ROTOR AND CONCAVES, VANE LAYOUT (14) - THRESHING

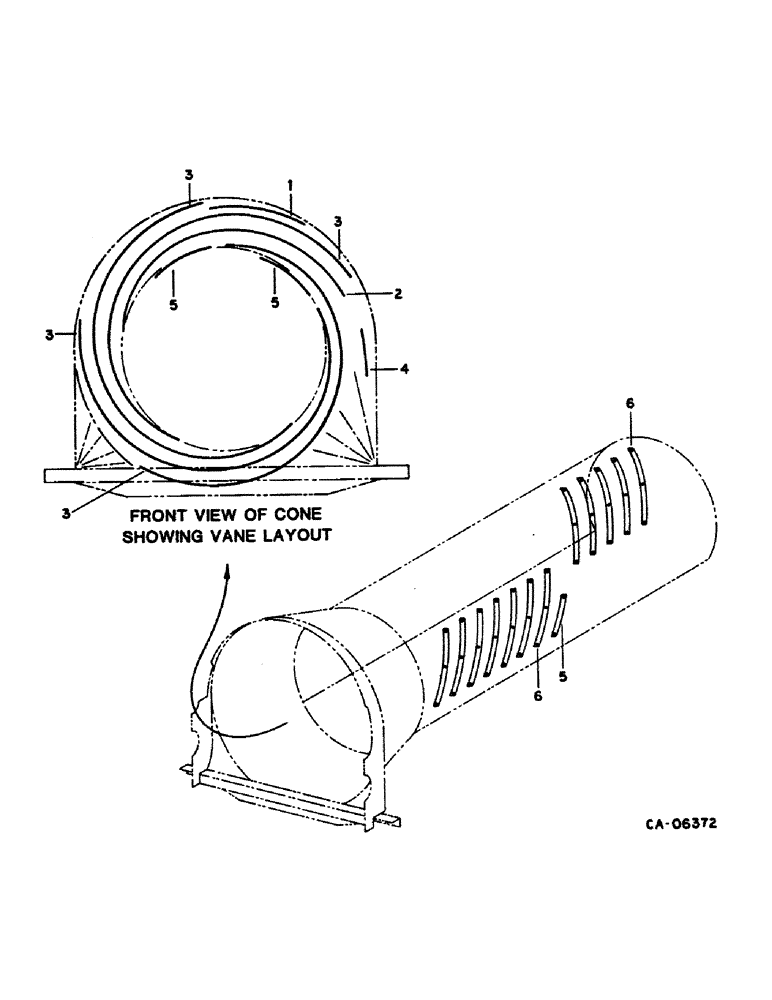

Схема запчастей Case IH 1480 - (21-19) - THRESHING ROTOR AND CONCAVES, VANE LAYOUT (14) - THRESHING
6
3
2
4
5
1
3
5
5
6
3
3

Артикул

Название

Примечание

Количество

1

193395C1

BLADE

VANE, cone extension front

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

186777C4

BLADE

VANE, cone short

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188192C3

STIFFENER

VANE, cone front

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

186778C1

BLADE

VANE, cone pocket

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

193383C1

SUPPORT

VANE, rear cone extension

3шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

186075C2

SUPPORT TUBE

VANE, transport

12шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

Выбрано товаров: 18
