Запчасти Case IH 1480 (21-16) - THRESHING ROTOR AND CONCAVES, CONE (14) - THRESHING

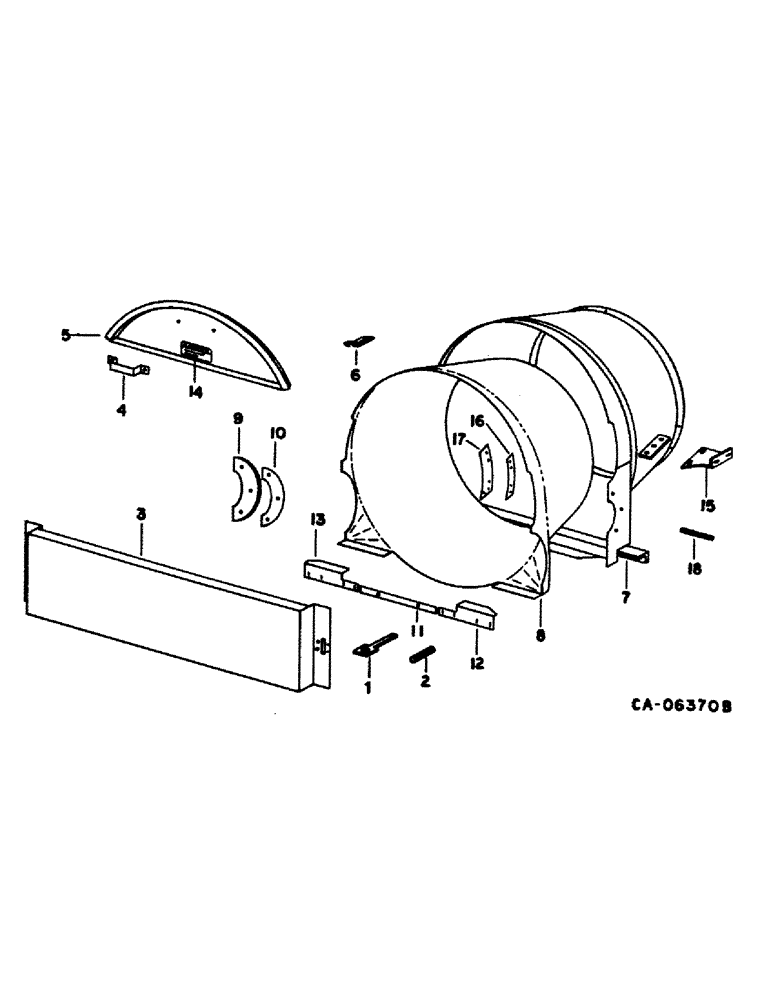

Схема запчастей Case IH 1480 - (21-16) - THRESHING ROTOR AND CONCAVES, CONE (14) - THRESHING
3
17
9
18
1
14
8
12
4
7
16
5
2
15
11
6
13
10

Артикул

Название

Примечание

Количество

1

454502R1

LATCH

separator front door

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

2

M296

SPRING

front door latch

2шт.

3

193608C2

DOOR

separator front

1шт.

4

160638C1

HANDLE

rotor front door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

182974C93

DOOR

rotor front, for grain and corn, for rice, Start Serial: 54001

1шт.

5

1300301C92

DOOR SEAL

DOOR, rotor front, for rice, Serial Range: -24000

1шт.

5

1300662C91

DOOR

rotor front, for rice, includes ref. no. 14, Serial Range: 24001-54000

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

168481C1

LATCH ASSY.

LATCH, rotor front door, Serial Range: -14000

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 znp p/hds mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

7

1317778C2

CONE

ASSY, transition, replaces 186775C6, for grain and corn

1шт.

7

1309384C2

HOUSING ASSY.

CONE ASSY, transition, for rice

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

186917C1

SCREW

SCREW, 3/8 x 1 flange lock w/scotch grip

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

LINER, adapter cone, red or black, for rice, furnish the following (NSS)

1шт.

1309384C2

HOUSING ASSY.

DUCT ASSY

1шт.

1300662C91

DOOR

ASSY

1шт.

9

195202C1

SEAL

feeder

2шт.

10

195409C1

PLATE

seal backup

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

1308522C1

BAR

feeder door, for rice

1шт.

12

1308520C2

SUPPORT ASSY.

SUPPORT, cone liner front LH, for rice

1шт.

13

1308521C1

SUPPORT

cone liner front RH, for rice

1шт.

14

179749C2

PRODUCT GRAPHIC

danger

1шт.

15

1302141C2

SUPPORT

LH pocket, used with cone, 186775C6 only

1шт.

Ref #15, Not used anymore.

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

16

1308776C1

FILLER

cone section, for rice

1шт.

17

1308777C1

COVER

cone section, for rice

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18

120253C1

CONDUIT

LH pocket support, 8.25 in. 209.6mm

1шт.

Выбрано товаров: 43
