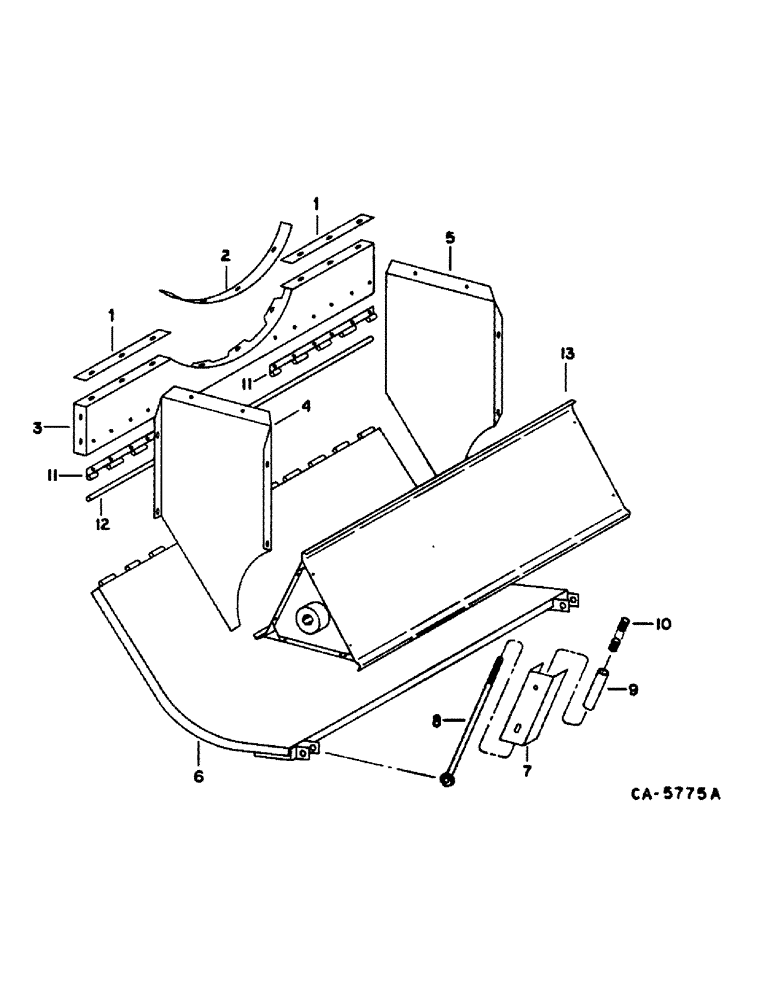

Запчасти Case IH 1480 (21-15) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER BOTTOM, SPRING LOADED (14) - THRESHING

1

182895C1

FILLER

bulkhead rear

2шт.

2

182950C1

SUPPORT

STRIP, cage filler rear

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

182931C1

SUPPORT

rear lower cage

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

182948C2

DEFLECTOR

discharge LH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

182949C2

DEFLECTOR

discharge RH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

182926C2

BOTTOM

ASSY, beater

1шт.

7

182896C1

SUPPORT

bottom spring

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

359783C1

LOCK NUT

3/8 CAD P/T lock type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC HDN

1шт.

186917C1

SCREW

BOLT, 3/8 x 3/4 scotch grip

1шт.

8

182892C2

BOLT,1/2" - 13 x 330mm

beater bottom eye

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

9

182981C1

SPACER

beater bottom

2шт.

10

391745R1

SPRING

beater bottom

2шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1.750 hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

11

182893C1

HINGE

beater bottom

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

182980C1

ROD,11.11mm OD x 1556mm L

bottom hinge

1шт.

13

BEATER ASSY, discharge, refer to this group under discharge beater

1шт.
