Запчасти Case IH 1480 (21-12) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER (14) - THRESHING

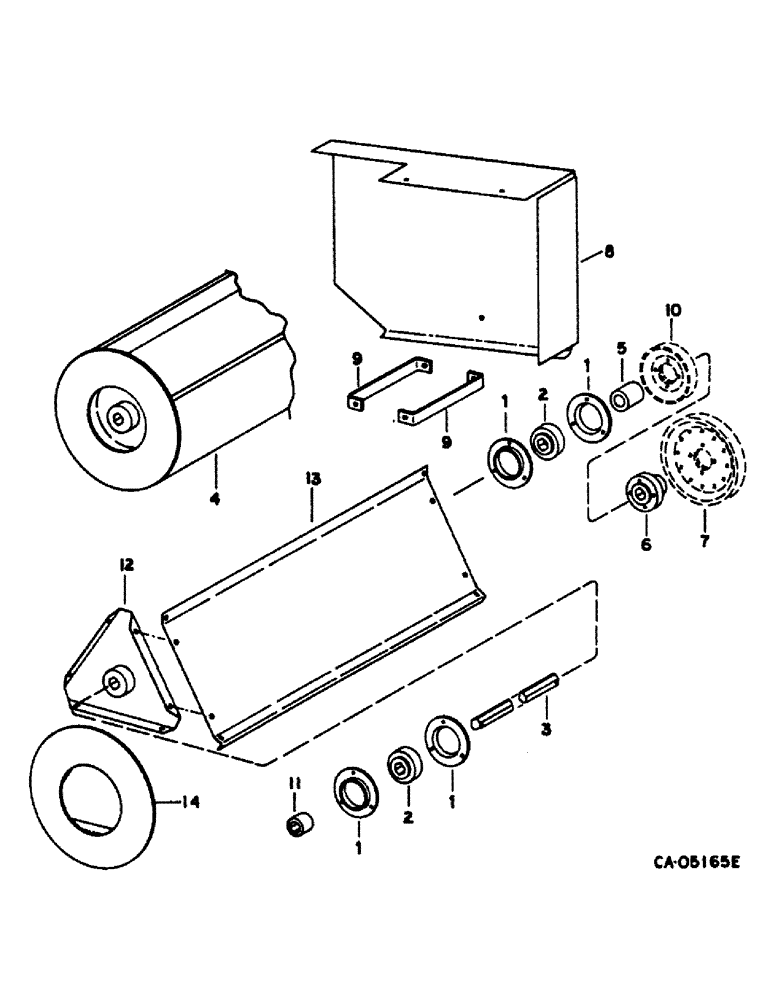

Схема запчастей Case IH 1480 - (21-12) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER (14) - THRESHING
5
9
1
1
11
14
2
13
7
12
2
9
8
4
1
1
3
6
10

Артикул

Название

Примечание

Количество

1

180955C1

FLANGED BEARING,0.375"

FLANGE, beater bearing

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, discharge beater

2шт.

3

1302176C1

SHAFT

discharge beater

1шт.

21779R1

WASHER

1.344 x 2.0 x .105

1шт.

21290R1

WASHER

1.344 x 2.000 x .054

1шт.

4

1300746C91

PACKAGE

discharge beater, replaces 191023C1, consists of, Serial Range: -44067

1шт.

1319270C1

BLADE

beater

3шт.

1319266C1

HUB

ASSY, beater

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

632147R1

SPACER

beater driven pulley

1шт.

21779R1

WASHER

1.344 x 2.0 x .105

1шт.

6

195216C2

HUB

beater drive pulley, Serial Range: -54000

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 type 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 PHC HDN

1шт.

6

1319402C1

HUB

beater drive pulley, Start Serial: 54001

1шт.

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 PHC HDN

1шт.

7

PULLEY ASSY, beater drive, refer to group 20 under belt drive RH side

1шт.

8

195113C1

SUPPORT

beater drive

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

194760C1

SUPPORT

CHANNEL, beater drive shield

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

10

PULLEY ASSY, straw spreader drive, refer to group 20 under straw spreader drive

1шт.

11

1302104C1

HUB

BUSHING, beater fixed, Start Serial: 14001

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

12

1319266C1

HUB

ASSY, beater, replaces 183129C3, below furnish package 1300746C91, Serial Range: -44067

1шт.

12

1319266C1

HUB

ASSY, beater, replaces 183129C3, furnish package 1300746C91, Start Serial: 44068

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

1319270C1

BLADE

beater, replaces 183128C1, furnish package 1300746C91, Serial Range: -44067

3шт.

13

1319270C1

BLADE

beater, replaces 183128C1, furnish package 1300746C91, Start Serial: 44068

3шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

1319230C1

HUB

END ASSY, hub, package 1300746C91 may also be furnished, Serial Range: 24001-44067

2шт.

14

1319230C1

HUB

END ASSY, hub, package 1300746C91 may also be furnished, Start Serial: 44068

2шт.

Выбрано товаров: 43
