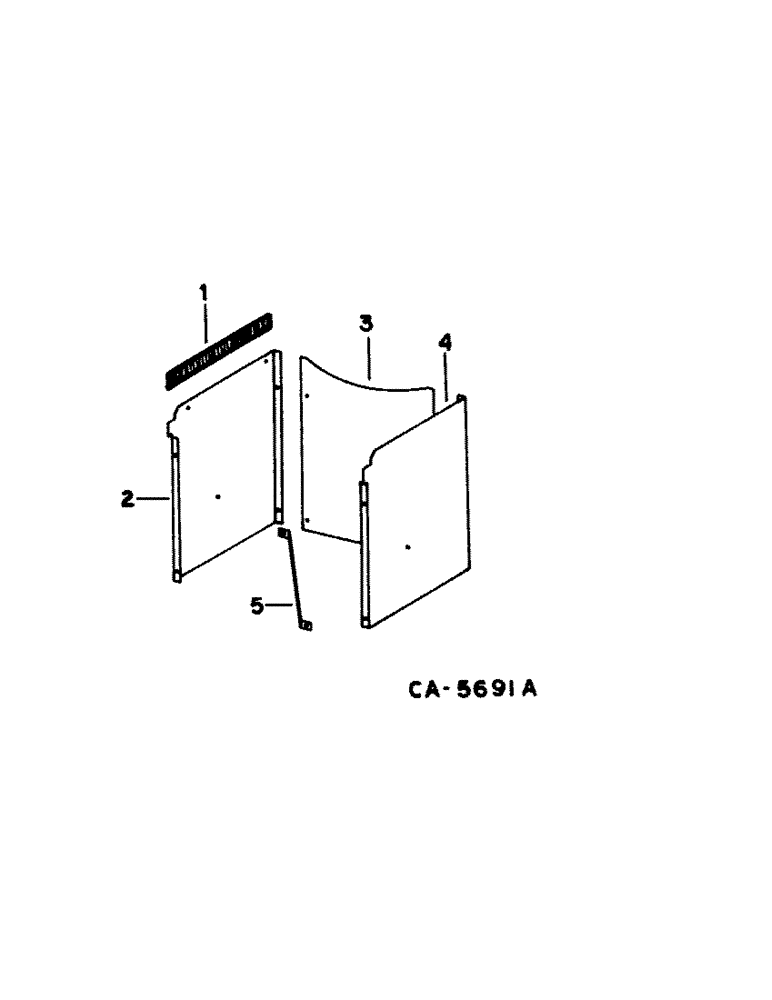

Запчасти Case IH 1480 (06-02) - COOLING, ROTARY AIR SCREEN DISCHARGE CHUTE Cooling

1

194231C2

BRUSH, COMMUTATOR

BRUSH, block off seal

1шт.

371212C1

RIVET

pop

1шт.

2

194237C2

SUPPORT

block off LH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

194235C1

PLATE

block off front screen

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

194238C2

SUPPORT

block off RH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

182887C1

SUPPORT

block off screen

1шт.
