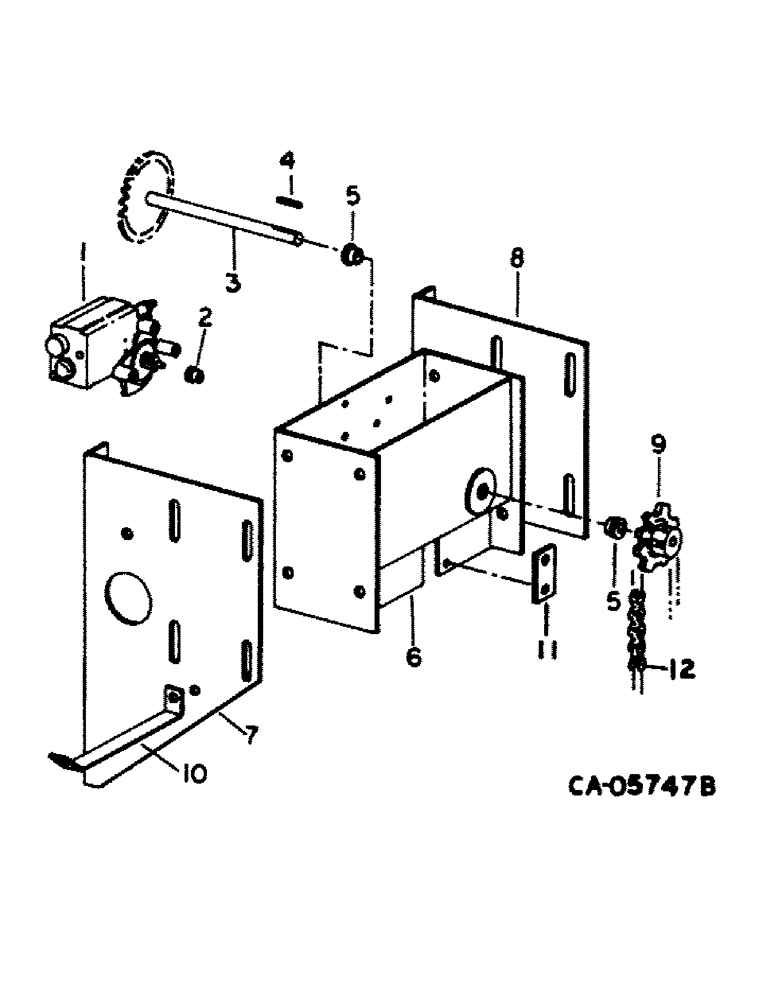

Запчасти Case IH 1480 (21-07) - THRESHING ROTOR AND CONCAVES, ROTOR DRIVE ADJUSTMENT (14) - THRESHING

1

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, variable

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21843R1

WASHER

.406 x 1.000 x .209

1шт.

2

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

motor

1шт.

3

194338C1

GEAR

SHAFT ASSY, rotor gear

1шт.

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

4

Q5024

KEY,3/16" Sq x 1", Par

2шт.

5

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

6

183227C1

SUPPORT ASSY.

SUPPORT ASSY, motor

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

7

188215C2

SUPPORT

rotor adjusting motor LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

8

194336C2

SUPPORT

rotor adjusting motor RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

9

194337C1

SPROCKET

control, 8 T

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1/4 jam type 8

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt Sq Hd, 1/4"-20 x 3/4"

1шт.

10

188216C1

SUPPORT

rotor adjusting motor LH lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

11

1302173C1

PAD

motor support cushion

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

12

CHAIN ASSY, variable drive, use 31 links from 10 ft roll marked 569088R91, one connecting link 457113R91 and two offset link 457114R91

1шт.

1302209C91

SUPPORT ASSY.

PACKAGE, motor support, consists of, Serial Range: -14000

1шт.

1302173C1

PAD

1шт.

183227C1

SUPPORT ASSY.

SUPPORT ASSY

1шт.

188215C2

SUPPORT

LH

1шт.

194336C2

SUPPORT

RH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.
