Запчасти Case IH 1480 (21-03) - THRESHING ROTOR AND CONCAVES, ROTOR, RICE AND EDIBLE BEAN (14) - THRESHING

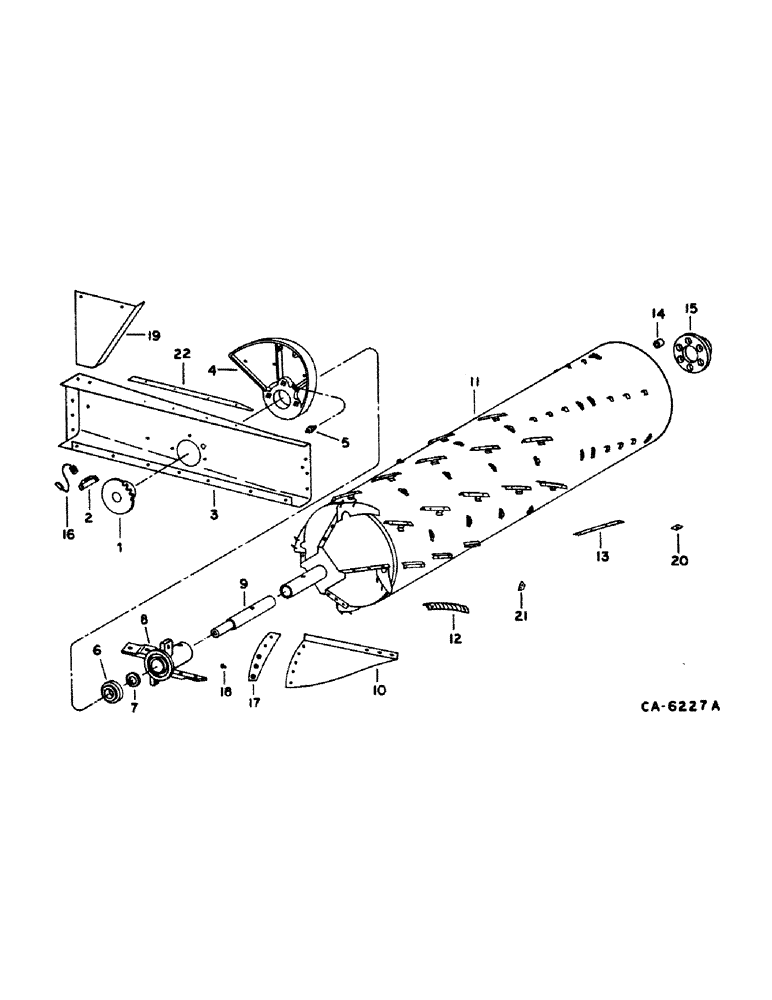

Схема запчастей Case IH 1480 - (21-03) - THRESHING ROTOR AND CONCAVES, ROTOR, RICE AND EDIBLE BEAN (14) - THRESHING
14
19
15
21
17
20
11
7
12
6
10
22
5
2
3
18
4
9
16
8
13
1

Артикул

Название

Примечание

Количество

1

ROTOR, multi-position tachometer rotor speed magnetic pickup, refer to this group under rotor, grain and corn

1шт.

2

SUPPORT, rotor tachometer magnetic, refer to this group under rotor, grain and corn

1шт.

3

SUPPORT ASSY, front bearing, refer to this group under rotor, grain and corn

1шт.

4

1309076C1

BEARING HOUSING

rotor front bearing, replaces 1302129C2

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER, front bearing housing

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

6

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

rotor front shaft

1шт.

8

1302166C3

IMPELLER

rotor front, 2 blade

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

22109R1

HEADED PIN

PIN, 3/4 x 4.500 hd type 5

1шт.

9

191545C1

SHAFT

ROD, rotor front

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

2.031 x 2.750 x .067

1шт.

10

1957445C1

BLADE

KIT, rotor, replaces package 1309120C1

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

11

ROTOR ASSY, threshing, 1309118C93 order 1327673C91 for bean or 1317406C91 for rice specialty, includes ref nos. 8, 9, 10, 12 thru 15, 17 and 18, when furnishing rotor, also furnishing the following, Serial Range: -14000

1шт.

181314C2

BLOCK

SUPPORT, front gear case

1шт.

181315C1

PLATE

front gear case support

1шт.

182550C1

RETAINER

rotor gear case

1шт.

12

1308830C1

BAR

helical rasp 120 deg, replaces package 1309119C1

20шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x /812 x .089 PHC HDN

1шт.

13

186501C2

STRAP

BAR, rotor rear helical, Serial Range: -24000

12шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

14

180703C1

PACKAGE,SERVICE

INSULATOR, rotor drive hub, package of 6

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

.531 x 1.500 x .12 hardened

1шт.

15

185166C91

HUB

rotor drive, includes ref. no. 14

1шт.

16

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range 24000 refer to this group under rotor, grain and corn

1шт.

16

1301241C1

SENSOR

Converter, reluctance pickup, Start Serial Number 24001, refer to this group under rotor, grain and corn

1шт.

17

1309186C1

BAR

wear/reinforcing, chrome, replaces package 1302132C2

2шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

1шт.

18

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

SCREW, wear reinforcing

6шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

1шт.

19

196993C2

SUPPORT

platform front angle

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

1309115C2

BAR

rotor rear helical, replaces package 1309117C2, Start Serial: 24001

40шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21

1302159C3

BAR

rotor interupter, replaces package 1302171C2

36шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

22

BAR, refer to this group under rotor, grain and corn

1шт.

1324208C1

SHIM KIT

PACKAGE, rotor rasp shim, replaces 1319543C1, consists of (28) shim, .010 (NSS), (28) shim, 030 (NSS), (28) shim, .053 (NSS), (28) shim, .093 (NSS), instructions (NSS)

1шт.
