Запчасти Case IH 1480 (21-01) - THRESHING ROTOR AND CONCAVES, ROTOR, GRAIN AND CORN (14) - THRESHING

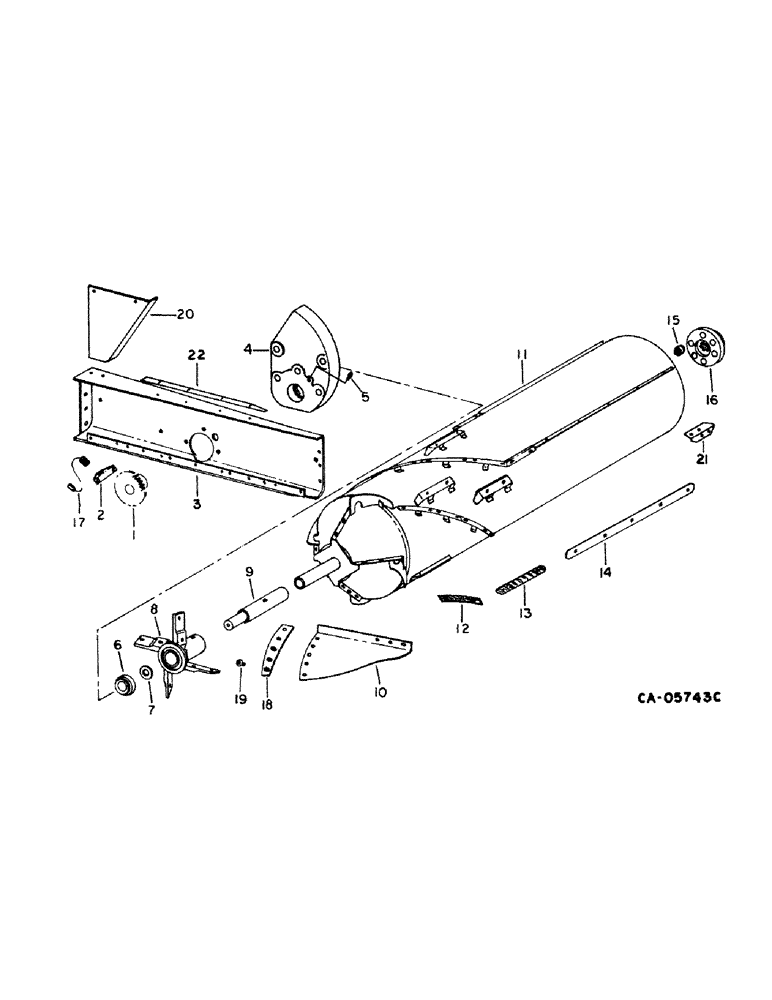

Схема запчастей Case IH 1480 - (21-01) - THRESHING ROTOR AND CONCAVES, ROTOR, GRAIN AND CORN (14) - THRESHING
21
16
19
6
13
7
3
17
14
15
5
9
11
18
8
4
12
2
10
22
20

Артикул

Название

Примечание

Количество

1

198527C1

ROTOR

multi-position tachometer rotor speed magnetic pickup

1шт.

2

193221C1

SUPPORT

rotor tachometer magnetic, Serial Range: -24000

1шт.

2

1301239C1

BRACKET

rotor tachometer magnetic, Start Serial: 24001

1шт.

3

193384C3

SUPPORT

ASSY, front bearing

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

1309076C1

BEARING HOUSING

rotor front bearing, replaces 19295C1

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER, front bearing housing

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

6

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

rotor front shaft

1шт.

8

188371C3

TURBINE

IMPELLER, rotor front

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

22109R1

HEADED PIN

PIN, 3/4 x 4.500 hd type 5

1шт.

9

191545C1

SHAFT

ROD, rotor front

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

2.031 x 2.750 x .067

1шт.

10

1957445C1

BLADE

KIT, rotor, replaces package 1309120C1

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

9412230

LOCK NUT

1/2 PHC prevailing torque

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

11

181954C96

ROTOR

ASSY, threshing, includes ref nos. 8, 9, 10, 12 thru 16, 18 and 19, when furnishing rotor 181954C95, also furnish the following, Serial Range: -14000

1шт.

181314C2

BLOCK

SUPPORT, front gear case

1шт.

181315C1

PLATE

front gear case support

1шт.

182550C1

RETAINER

rotor gear case

1шт.

12

1308830C1

BAR

helical rasp 120 deg, replaces package 1309119C1

16шт.

12

1324581C1

BAR

helical rasp 120 deg, chrome, replaces package 1324597C1

16шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC prevailing torque

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 PHC HDN

1шт.

13

1308668C1

RASP BAR

BAR, straight rasp, replaces package 1309119C1

12шт.

13

1324582C1

BAR

straight rasp, chrome, replaces package 1324596C1

12шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 PHC HDN

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC prevailing torque

1шт.

14

1303038C2

BAR

rotor rear straight, replaces package 180708C4

4шт.

14

1324580C1

BAR

rotor rear straight, chrome, replaces package 1324595C1

4шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

14

1302103C3

BAR

rotor rear straight, tooth, replaces package 1300084C3

4шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 PHC HDN

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

15

180703C1

PACKAGE,SERVICE

INSULATOR, rotor drive hub, package of 6

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

.531 x 1.500 x .12 hardened

1шт.

16

185166C91

HUB

COUPLING ASSY, rotor drive, includes ref. no. 15

1шт.

17

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range: -24000

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF CAD stamped

1шт.

17

1301241C1

SENSOR

CONVERTOR, reluctance pick up, Start Serial: 24001

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 C-Z stamped

1шт.

18

183264C2

RASP BAR

BAR, wear-reinforcing, replaces package 183343C1

4шт.

18

1309186C1

BAR

wear-reinforcing, chrome, replaces package 1302132C2

4шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

1шт.

19

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

SCREW, wear reinforcing bar

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

1шт.

20

196993C2

SUPPORT

platform front angle

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21

183335C3

SUPPORT

BAR, rotor rear extension

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 PHC HDN

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

22

1308967C1

BAR

rotor front door holddown

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1324208C1

SHIM KIT

PACKAGE, rotor rasp shim, replaces 1319543C1, consists of (28) shim, .010 (NSS), (28) shim, .030 (NSS), (28) shim, .053 (NSS), (28) shim, .093 (NSS), instructions (NSS)

1шт.

1324031C1

PACKAGE

grain rotor separator angle bar support, consists of support, rear bar (NSS), instructions (NSS)

1шт.

See SB 021-87 for info on shimmed Rotor Assy. for hard to thrash grain.

1шт.
