Запчасти Case IH 1480 (33-13) - FEEDER, FEEDER JACKSHAFT DRIVE, SERIAL NO. 14001 AND ABOVE (13) - FEEDER

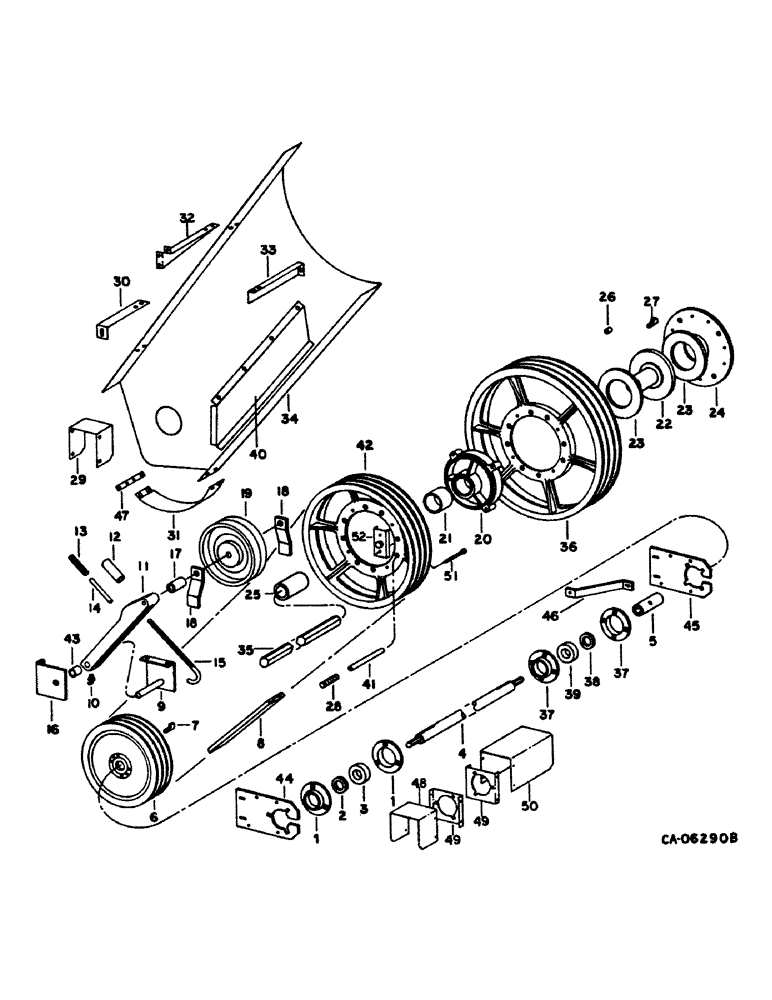

Схема запчастей Case IH 1480 - (33-13) - FEEDER, FEEDER JACKSHAFT DRIVE, SERIAL NO. 14001 AND ABOVE (13) - FEEDER
29
3
24
38
12
17
37
18
9
48
44
49
16
19
15
49
41
45
11
37
40
43
1
42
33
26
27
10
30
35
5
1
32
36
25
51
2
21
7
18
13
52
31
28
34
23
6
46
14
47
4
50
20
39
8
23
22

Артикул

Название

Примечание

Количество

1

180955C1

FLANGED BEARING,0.375"

FLANGE, feeder jackshaft bearing LH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

1203774

NUT, 3/8 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

517645R11

COLLAR

w/set screw, bearing locking LH

1шт.

3

611583R91

BALL BEARING

BEARING, feeder jackshaft LH

1шт.

4

195559C3

JACKSHAFT

SHAFT, feeder cross

1шт.

5

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, feeder jackshaft

2шт.

586591R1

COTTER PIN

PIN, 1/8 QA

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2.375 hd type 5

1шт.

6

176573C4

PULLEY

feeder jackshaft driven, 13.5 in. OD, 342.9mm OD

1шт.

7

Q1376

KEY

3/8 x 2-1/4 sq tapered

1шт.

8

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Feeder Jackshaft, for 54.5 Feeder 22.33 mm W x 3706.69 mm L

1шт.

8

1308489C2

V-BELT,22.33 mm W x 3990.69 mm L

Feeder Jackshaft Drive, for 60 in. Feeder 22.33 mm W x 3990.69 mm L

1шт.

9

182322C1

SUPPORT

ASSY, idler

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

10

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap lub

1шт.

11

1305142C1

ARM ASSY.

ARM ASSY, jackshaft tightener

1шт.

12

176581C1

SPACER

adjusting bolt spring

1шт.

13

PO3A

SPRING

adjusting bolt

1шт.

14

176544C2

SPACER

adjusting bolt inner

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

632076R1

WASHER

.531 x 1.750 x .090

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

15

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

idler draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

16

182323C1

SUPPORT

idler

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

615944R1

SPACER,3/4" X-Strng Pipe x 1 1/4"

drive idler

1шт.

18

197110C1

GUIDE

belt

2шт.

19

176579C1

IDLER

drive tightener, 8.0 in OD, 203.2mm OD

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2 type 5

1шт.

20

1305220C91

HUB ASSY.

HUB ASSY, outer friction clutch, includes ref no. 21

1шт.

21

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

outer friction clutch hub

1шт.

22

1305154C2

HUB

feed conveyor slip clutch

1шт.

23

181579C1

DISC

DISC, friction clutch

2шт.

24

185955C1

PLATE

friction

1шт.

25

1305393C1

SPACER

clutch hub

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

26

1305375C1

SPACER

drive lug

4шт.

27

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

28

1305692C1

SPRING

slip clutch

8шт.

29

189731C1

CHANNEL

SHIELD, jackshaft RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

30

189450C2

SUPPORT ASSY.

SUPPORT, shield upper front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

31

189458C1

SUPPORT

shield drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

32

189452C1

SUPPORT

shield upper rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

33

189454C1

SUPPORT

shield lower rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

34

189446C3

SHIELD

ASSY, jackshaft drive, 54.5 in. feeder

1шт.

34

189519C3

GUARD

SHIELD ASSY, jackshaft drive, for 60 in. feeder

1шт.

35

SHAFT, feeder conveyor, refer to this group under feed conveyor

1шт.

36

PULLEY, feeder drive, refer to this group under feeder drive

1шт.

37

663562R1

FLANGE

feeder jackshaft bearing RH

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

38

184648C1

COLLAR

w/set screw, bearing locking RH

1шт.

39

184647C91

BALL BEARING,34.92mm ID x 80mm OD x 21mm W

BEARING, feeder jackshaft RH

1шт.

40

185686C1

SHIELD

jackshaft belt, for 54.5 in. feeder

1шт.

40

185687C1

SHIELD

jackshaft belt, for 60 in. feeder

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

41

1305370C3

SPACER

slip clutch spring

8шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

42

1305288C1

PULLEY

feeder jackshaft drive, 16.7 in. OD, 424.2mm OD

1шт.

24844R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

1шт.

25522R1

NUT,3/8"-16, G8

3/8 PHC type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

43

PO27260

SPACER,1" Pipe x 2"

idler support pin

1шт.

151670C1

SHIM

1шт.

44

175915C2

SUPPORT

feeder jackshaft LH bearing

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

45

187478C2

SUPPORT

feeder jackshaft RH bearing

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

46

197988C1

SUPPORT

bearing brace

1шт.

46

1303263C1

BRACKET

SUPPORT, bearing brace, for French 825 headers

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

47

189722C1

BAR

shield adapter

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

48

189730C1

SHIELD

jackshaft inner, LH, with rock trap

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

49

178254C1

SUPPORT

feeder jackshaft shield, replaces 1320762C1, with rock trap

2шт.

50

197646C1

SHIELD

jackshaft outer, LH, with rock trap

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

51

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

3/8 x 6 hex type 8, slip clutch spring

8шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

52

1315316C1

SUPPORT

slip clutch spring

2шт.

1300496C91

STRIPPER PACKAGE

PACKAGE, friction slip clutch, parts accessory, for converting combines w/serial no. 14000 and below, consists of ref nos. 20 thru 28, 36, 41, 42 and 48

1шт.
