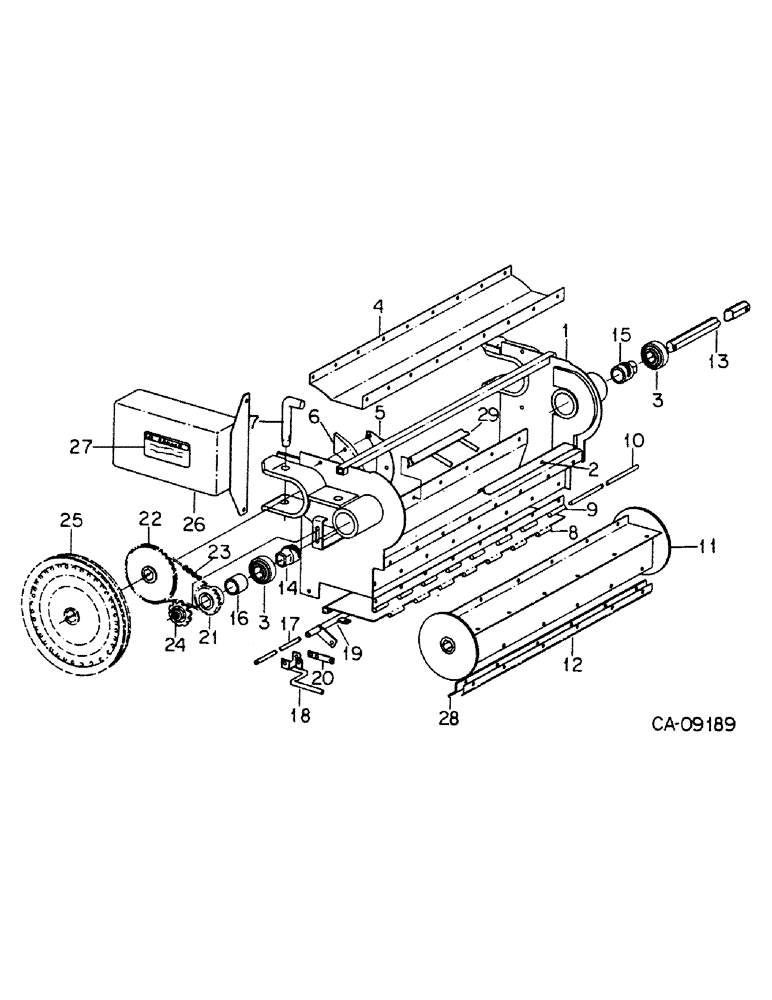

Запчасти Case IH 1480 (33-07) - FEEDER, ROCK TRAP (13) - FEEDER

1

1327627C1

HOUSING

ASSY, replaces 1320025C2 by also ordering cover 1327926C1

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

446363

WASHER,5/16"

.375 x .875 x .064

1шт.

2

1320278C1

BRACKET

ANGLE, wear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY

2шт.

4

1327926C1

COVER

housing, replaces 1320035C1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

5

1320254C1

PLATE

ASSY, seal backup

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

195202C1

SEAL

feeder

2шт.

7

192533C2

ROD

PIN, feeder pivot

2шт.

486830R1

COTTER PIN

PIN, Q.A.

1шт.

8

1320116C1

DOOR

ASSY

1шт.

9

1320119C1

HINGE

door

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

1320120C1

ROD

door hinge

1шт.

11

1319832C1

BEATER

ASSY, feed, 3 blade, replaces 4 blade beater 1324123C1

1шт.

12

1320102C1

BAR

EXTENSION, blade, use with 4 blade beater

4шт.

Ref #12 - Use as required, one per pkg.

1шт.

12

1324437C1

EXTENSION

blade, use with 3 blade beater

3шт.

12

1320922C2

BLADE

rock trap serrated, replaces package 1316044C91

1шт.

13

1320129C2

SHAFT

beater

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

14

1320268C1

SPACER

ASSY, sprocket LH

1шт.

15

1320269C1

SPACER

ASSY, sprocket RH

1шт.

16

162172C1

SPACER

1.812 x 225 x 1.94

1шт.

17

1320115C1

ROD

trap door latch

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

18

1320204C1

HANDLE

ASSY, door LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 CAD P/T lock type 5

1шт.

19

1320266C2

TUBE

ASSY, door LH

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

1320128C1

LINK

connecting

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

21

1320095C3

DRIVE SPROCKET

SPROCKET ASSY, drive, 16 T

1шт.

22

1320095C3

DRIVE SPROCKET

SPROCKET ASSY, driven, 16T

1шт.

22

1320110C3

SPROCKET

ASSY, driven, 33 T

1шт.

23

CHAIN ASSY, used w/2- 1320095C1 sprockets, use 41 links from 10 ft roll, marked 1793D and 1 connecting link 1786D

1шт.

23

CHAIN ASSY, extension, used w/1- 1320095C1 and 1- 1320110C1 sprocket, use 7 links from 10 ft roll, marked 1793D and 1 connecting link 1786D

1шт.

24

629972R91

DRIVE SPROCKET,15T

SPROCKET, beater drive chain, 15T, replaces block, 582018R1

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

N11720

WASHER

.656 x 1.500 x .090 sq/h

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

PULLEY ASSY, reel pump drive, refer to group 10 under hydraulic reel drive, w/stone trap beater

1шт.

26

SHIELD ASSY, rock trap drive, includes ref. no. 27, refer to group 10 under hydraulic reel drive with rock trap

1шт.

27

PRODUCT GRAPHIC, danger, refer to group 10 under hydraulic reel drive with rock trap

1шт.

28

1314150C1

ANGLE

beater reinforcing, for 4 blade beater only

4шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

1320776C1

SUPPORT

ANGLE, rock trap

1шт.

1957364C1

LATCH

PACKAGE, rocktrap latch retrofit, consists of

1шт.

1324764C1

SUPPORT TUBE,999 mm Length

SUPPORT ASSY, latch stop LH

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1957278C1

LATCH

PACKAGE, rocktrap latch support, consists of support assy, latch center (NSS)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd type 5

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8 instructions (NSS)

2шт.

SB 018-87 Rock Trap Beater Shaft Bearing Failures.

1шт.

SB 032-87 Revised Rock Trap Seal.

1шт.

SB 23.1-87 Rock Trap Door Latch.

1шт.

SB 40-87 Ref. 21 & 22 Pertaining to Rock Trap Beater Speed.

1шт.
