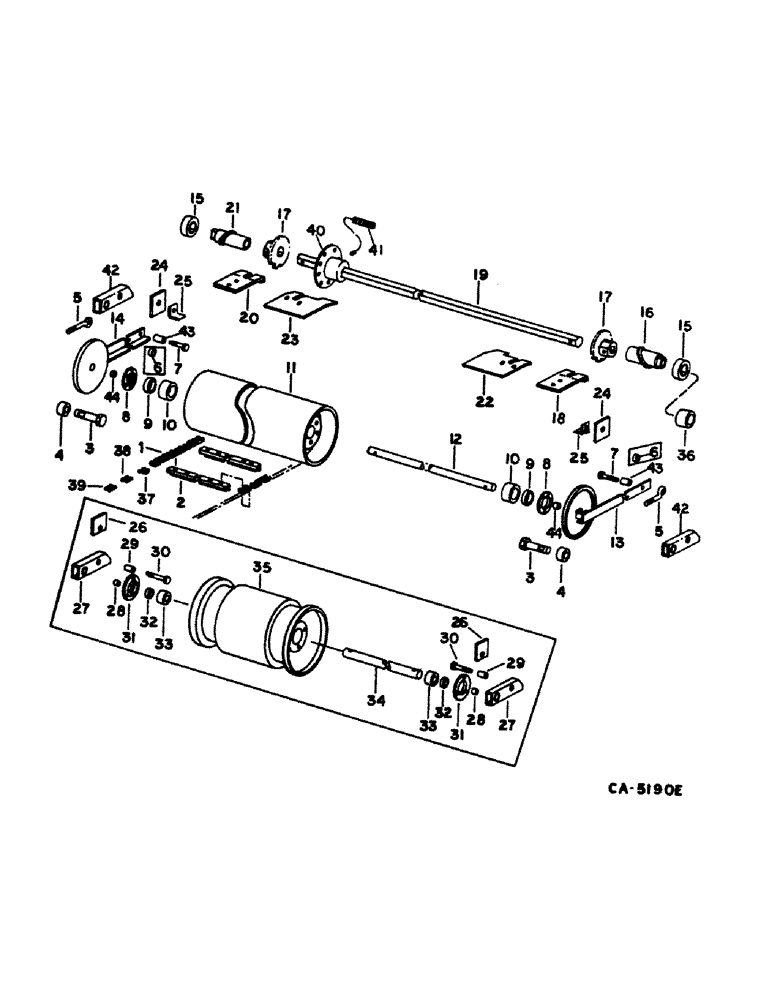

Запчасти Case IH 1480 (33-04) - FEEDER, FEEDER CONVEYOR (13) - FEEDER

1

1319204C91

CONVEYOR

ASSY, feed, for grain and corn, replaces 1313189C91 and 182097C91, for 54.5 in. feeder

1шт.

1

1305988C92

CHAIN (AG)

CONVEYOR ASSY, feed, for rice, for 60 in. feeder

1шт.

2

1313420C1

SLAT

PACKAGE, feed conveyor, includes rivets, 17 for 54.5 in. grain and corn feeder

1шт.

2

1300288C1

CONNECTING STRIP

SLAT PACKAGE, feed conveyor, includes rivets, 10 for 60 in rice feeder

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

chain tightening clamp

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

4

197211C1

SPACER

feeder drum stop

2шт.

5

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

6

558506R1

SPACER

support arm bolt, w/o stone retarder drum, Serial Range: -54600

2шт.

7

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

drum support arm, w/o stone retarder drum, Serial Range: -54600

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

7

187218C1

BOLT

drum support arm, w/o stone retarder drum, Start Serial: 54601

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

8

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, drum bearing, w/o stone retarder drum, Serial Range: -54600

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

drum bearing, w/o stone retarder drum, Start Serial: 54601

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

9

455102R21

COLLAR

w/set screw, feed conv. drum brg, w/o stone retarder drum, Serial Range: -54600

2шт.

9

557995R11

COLLAR

w/set screw, feed conv. drum brg, w/o stone retarder drum, Start Serial: 54601

2шт.

10

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum, w/o stone retarder drum, Serial Range: -54600

2шт.

10

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

feeder conveyor drum, w/o stone retarder drum, Start Serial: 54601

2шт.

11

175976C1

DRUM HUB

DRUM ASSY, feed conveyor, w/o stone retarder drum, Serial Range: -54600

1шт.

11

1319862C2

DRUM BRAKE ASSY

DRUM ASSY, feed conveyor, w/o stone retarder drum, Start Serial: 54601

1шт.

12

175983C2

SHAFT

feed conveyor drum, w/o stone retarder drum, Serial Range: -54600

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

12

187208C2

ROD

SHAFT, feed conveyor drum, without stone retarder drum, Start Serial: 54601

1шт.

13

1305156C1

ARM ASSY.

ARM ASSY, drum support LH, w/o stone retarder drum, Serial Range: -54600

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

13

1319875C1

BRACKET

ARM ASSY, drum support, LH, w/o stone retarder drum, rice only, Start Serial: 54601

1шт.

14

1305157C1

ARM

ASSY, drum support RH, w/o stone retarder drum, Serial Range: -54000

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

14

1319876C1

BRACKET

ARM ASSY, drum support, RH, w/o stone retarder drum, rice only, Start Serial: 54601

1шт.

15

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, feed conveyor shaft

2шт.

16

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

17

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor chain, 9T

2шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex-soc-cup point

1шт.

18

185708C1

STRIPPER ASSY.

STRIPPER ASSY, LH, Serial Range: -14000

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1-4 type 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD P/T lock type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

washer .015

1шт.

19

197278C1

SHAFT

feed conveyor, use w/o feeder reverser or rock trap

1шт.

19

1320099C2

SHAFT

feed conveyor, use w/feeder reverser with or without rock trap

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

1шт.

20

185709C1

STRIPPER ASSY.

STRIPPER ASSY, RH, Serial Range: -14000

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD P/T lock type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

washer .015

1шт.

21

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

22

185818C1

STRIPPER ASSY.

STRIPPER, LH, Start Serial: 14001

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23

185819C1

STRIPPER ASSY.

STRIPPER, RH, Start Serial: 14001

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

187347C1

PLATE

BAR, upper stop, w/o stone retarder drum

2шт.

25

187364C2

ANGLE

ASSY, drum arm upper stop

2шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8 x 2-1/4 crg type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

.656 x 1.250 x .054 sq/h

1шт.

26

187225C1

BAR

upper stop adjusting, w/stone retarder drum

2шт.

27

1305103C1

ARM ASSY.

ARM ASSY, drum stop, replaces 187367C1, w/stone retarder drum

2шт.

28

11449P

SPACER,1 1/4" Pipe x 1/2"

conveyor drum bearing, w/stone retarder drum

2шт.

29

187217C1

SPACER,7/8" Tube x 1 13/16"

drum arm pivot, w/stone retarder drum

2шт.

30

187218C1

BOLT

drum support arm, w/stone retarder drum

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

31

202909C1

BEARING HOUSING

FLANGE, drum bearing, w/stone retarder drum, replaces 2565631R1

4шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

32

557995R11

COLLAR

w/set screw, feed conveyor drum bearing, w/stone retarder drum

2шт.

33

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

feed conveyor drum, w/stone retarder drum

2шт.

34

187208C2

ROD

feed drum, w/stone retarder drum

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

35

1957440C1

DRUM

ASSY, feed conveyor, w/stone retarder drum, replaces 187196C3 by also ordering 4, flanges 202909C1 (Replaces 1957349C1)

1шт.

36

162172C1

SPACER

feeder pivot shaft LH

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

37

182090C1

LINK,Chain, 41.4mm Pitch

LINK, conveyor attaching

1шт.

38

182094C1

LINK,Chain, Link, 41.4mm

conveyor connecting

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

39

182127C1

LINK,41.4mm Pitch

conveyor offset

1шт.

40

1305665C1

DISC

FLANGE ASSY, convertor pickup

1шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex-soc-cup

1шт.

41

1301241C1

SENSOR

CONVERTOR, feeder pickup

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 C-Z stamped

1шт.

42

1305103C1

ARM ASSY.

ARM ASSY, drum support, grain and corn, w/o stone retarder drum, Start Serial: 54601

2шт.

43

187217C1

SPACER,7/8" Tube x 1 13/16"

drum arm pivot, w/o stone retarder drum, Start Serial: 54601

2шт.

44

11449P

SPACER,1 1/4" Pipe x 1/2"

conveyor drum bearing, w/o stone retarder drum, Start Serial: 54601

2шт.

SB 039-87 Feeder Drum Arm Washer

1шт.

SB 050-87 Feeder Drum Bearing Flange Change

1шт.

See SB 15-88 for new Conveyors...

1шт.

See SB 21-88 Bolt-On Feeder Chain Slatz

1шт.
