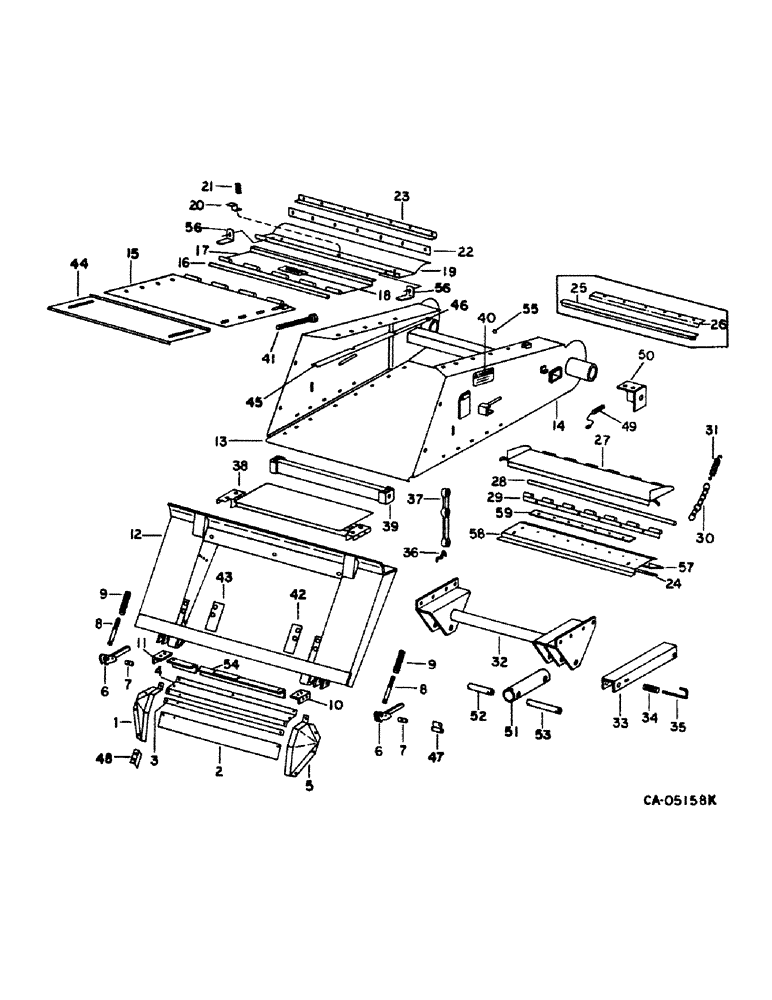

Запчасти Case IH 1480 (33-01) - FEEDER (13) - FEEDER

1

175909C1

DEFLECTOR

ASSY, feeder front RH, not draper

1шт.

1

197860C1

DEFLECTOR

ASSY, feeder front RH, for draper

1шт.

1

184854C1

DEFLECTOR

ASSY, feeder front RH, for 20 thru 30 ft w/23.6 in. OD, 600mm OD auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

2

175956C1

COVER

front lower, not draper

1шт.

2

197870C1

LID

COVER, front lower, for draper

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD prevailing torque lock

1шт.

3

175953C1

STRAP

STRIP, front cover backing, not draper

1шт.

3

197866C1

BAR

STRIP, front cover backing, for draper

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 prev. torque lock

1шт.

4

175918C1

COVER

feeder adapter, not draper

1шт.

4

197868C1

LID

COVER, feeder adapter, for draper

1шт.

4

181669C1

SHIELD

COVER, feeder adapter, for 20 thru 30 ft w/23.6 in. OD, 600mm OD auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

175908C1

DEFLECTOR

ASSY, feeder front LH, not draper

1шт.

5

197859C1

DEFLECTOR

ASSY, feeder front LH, for draper

1шт.

5

184853C1

DEFLECTOR

ASSY, feeder front LH, for 20 thru 30 ft w/23.6 in. OD 600mm OD auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

179024C1

HINGE

ASSY, feeder locking latch

2шт.

7

177141C1

PIN,15.88mm OD x 41mm L

locking latch pivot

2шт.

617057R1

PIN,1/4" x 1", Coiled

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

8

177138C1

ROD

locking latch

2шт.

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

9

367833R1

SPRING

locking latch rod

2шт.

10

175913C1

ANGLE

feeder adapter LH, w/o rock trap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

11

175914C1

ANGLE

feeder adapter RH, w/o rock trap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

12

175864C4

ADAPTER

ASSY, feeder

1шт.

12

1303262C4

TUBE NUT

ADAPTER ASSY, feeder, for French 825 headers

1шт.

13

1324572C1

PANEL

SHEET, feeder bottom, replaces 187488C2, for 54.5 in. feeder

1шт.

13

1324574C1

PANEL

SHEET, feeder bottom replaces 187489C2, for 60 in. feeder

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC flange

1шт.

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

3/8 PHC flange

1шт.

14

1305368C91

HOUSING

ASSY, feeder, replaces 182521C92, for 54.5 in. feeder, includes ref. no. 40

1шт.

14

1305369C91

HOUSING

ASSY, feeder, replaces 182522C92, for 60 in. feeder, includes ref. no. 40

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 prevailing torque hex.

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

15

185839C2

SUPPORT

ASSY, feeder top, for 54.5 in. feeder

1шт.

15

185840C3

HUB

SUPPORT ASSY, feeder top, for 60 in. feeder

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC flange

1шт.

16

175907C1

ROD

top door hinge

1шт.

17

180556C91

DOOR

ASSY, feeder top, includes ref. no. 18

1шт.

18

179749C2

PRODUCT GRAPHIC

danger instr.

1шт.

19

197523C3

COVER

feeder top

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC flange

1шт.

20

184645C1

CLIP

top door latch

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

21

7422T

SPRING

top door latch

1шт.

22

634248R1

SEAL

SEAL, feeder top

1шт.

23

197527C1

SUPPORT

feeder top seal

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

24

197526C1

SEALING STRIP

lower door seal

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

1шт.

196922C1

LOCK NUT

no. 10 P/T lock

1шт.

25

197525C2

DOOR SEAL

SEAL, feeder lower door, Serial Range: -64000

1шт.

26

197524C1

STRAP

STRIP, lower door seal spacer, Serial Range: -64000

1шт.

27

193612C2

DOOR

ASSY, feeder bottom

1шт.

28

175931C1

ROD

feeder bottom door hinge

1шт.

29

193611C2

HINGE

feed plate

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

30

167570C1

CHAIN,203.2mm L

lower door latch

2шт.

31

635503R1

SPRING,148.8mm Free Length

lower door latch

2шт.

32

187103C2

BRACKET

SUPPORT ASSY, feeder lift, for 54.5 in. feeder

1шт.

32

187352C2

BRACKET

SUPPORT ASSY, feeder lift, for 60 in. feeder

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1319710C1

AUGER

NUT, 1/2 flange lock

1шт.

33

197554C3

CHANNEL

lift cylinder lock

1шт.

586591R1

COTTER PIN

PIN, 1/8 QA

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

34

M296

SPRING

lift locking rod

1шт.

35

197849C1

ROD

cylinder lift lock

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

36

179207C1

HOOK

reel lift hose tie down

1шт.

37

179206C1

STRAP

reel lift hose tie down

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

455367

SCREW, no. 10 x 1-1/2 znp h/hd mach Hex Hd, #10-24 x 1 1/2"

1шт.

22237R1

WASHER

.203 x .750 x .054

1шт.

38

187209C2

SUPPORT

ASSY, feeder bottom, w/rock trap

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

39

187213C1

SUPPORT

ASSY, feeder bottom rear, w/rock trap

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 tyep 5

1шт.

40

189922C3

DECAL

PRODUCT GRAPHIC, danger

2шт.

41

185836C1

BOLT,Hex, 5/8" - 11 x 9"

header leveling adjusting, S/N and below

1шт.

Ref #41, Header Leveling Adjusting Bolt change was made during 1983. No serial number break is available. the 1307750C1 Bolt is the longer of the two. SB 44-81

1шт.

p/n# 185836c1 - 5/8-11 x 9.0" long hex head bolt

1шт.

41

1307750C1

BOLT,Hex, 5/8" - 11 x 11mm

header leveling adjusting, S/N and above

1шт.

p/n# 1307750c1 - 5/8-11 x 11.0" long hex head bolt

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

42

181646C1

SUPPORT

FILLER, feeder face wear LH, for rice not draper

1шт.

42

197881C2

FILLER

feeder face wear LH, for rice draper

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

Both Ref. 42 AND 43 ARE P/N 181646C1and P/N181647C1 was eliminated.

1шт.

43

181646C1

SUPPORT

FILLER, feeder face wear RH, for rice not draper

1шт.

Both Ref. 42 AND 43 ARE P/N 181646C1and P/N181647C1 was eliminated.

1шт.

43

197882C2

FILLER

feeder face wear RH, for rice draper

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

44

182318C1

COVER

feeder top front

1шт.

45

182030C2

SUPPORT

BAR, feeder upper, for 54.5 in. feeder

2шт.

45

182031C2

BRACKET

BAR, feeder upper, for 60.0 in. feeder

2шт.

46

182035C1

SUPPORT

feeder lower

2шт.

47

1338021C1

PIN,7.94mm OD

latch locking, replaces 407171R1

2шт.

48

(Not used this application)

1шт.

49

CONVERTOR, feeder pickup, refer to this group under feed conveyor

1шт.

50

1307486C1

SUPPORT ASSY.

SUPPORT ASSY, transducer mounting

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 hex-hd flange

1шт.

51

EXTENSION, lift cylinder, refer to group 10 under header lift cylinder

1шт.

52

PIN, lift cylinder, refer to group 10 under header lift cylinder

1шт.

53

PIN, lift cylinder, refer to group 10 under header lift cylinder

1шт.

54

1319745C1

SUPPORT ASSY.

SUPPORT, bottom stiffener, w/o rock trap

1шт.

55

188456

HOLE PLUG BUTTON,13/16"

PLUG, 13/16 hole dia. pln button, to plug hole in rear cross tie tube when not equipped with automatic feeder cut off

1шт.

56

1322144C1

ANGLE

top door stop

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

184649C1

PRODUCT GRAPHIC

adjusting instructions

1шт.

57

1319962C1

SEAL

feeder rear, Start Serial: 64001

1шт.

58

1319960C1

SUPPORT

feeder bottom rear, Start Serial: 64001

1шт.

59

1319964C1

STRIP

BAR, feeder bottom rear spacing, Start Serial: 64001

1шт.

180121C91

PACKAGE

DEFLECTOR PACKAGE, front LH, for rice, not used w/810 draper header

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

180122C91

PACKAGE

DEFLECTOR PACKAGE, front RH, for rice, used w/810 draper header

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

SB 50-92 Service Parts Feeder Reverser Motor.

1шт.

Rivets for Ref # 25 & 26 are 187166C1.

1шт.
