Запчасти Case IH 1480 (10-73) - HYDRAULICS, HYDRAULIC RESERVOIR, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS

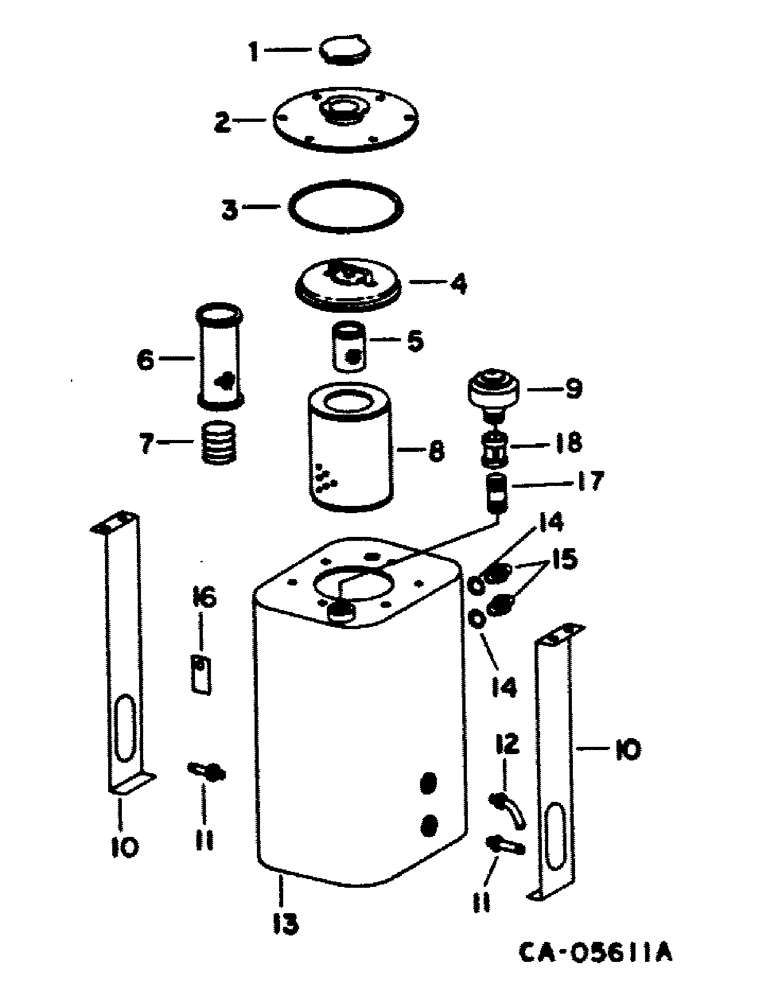

Схема запчастей Case IH 1480 - (10-73) - HYDRAULICS, HYDRAULIC RESERVOIR, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS
14
10
11
3
5
13
4
16
7
9
17
10
12
11
15
14
8
1
2
18
6

Артикул

Название

Примечание

Количество

196824C91

TANK

ASSY, hydraulic cyl reservoir, includes ref nos. 1 thru 8 and 13 thru 15

1шт.

1

D25826

CAP

ASSY, cover

1шт.

2

179491C1

COVER

ASSY, used w/196824C91

1шт.

2

1301115C1

COVER ASSY

used w/183991C91

1шт.

3

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

cover, used w/196824C91

1шт.

3

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

cover, use w/183991C91

1шт.

4

173131C1

COVER ASSY

LID ASSY, filter

1шт.

5

179489C1

FILTER, ENGINE OIL

FILTER, cover

1шт.

6

173929C1

STRAINER ELEMENT

STRAINER

1шт.

7

173930C1

SPRING

port

1шт.

8

528493R3

HYDRAULIC OIL FILTER

ELEMENT ASSY

1шт.

9

923745C91

BREATHER ASSY.

BREATHER, filter assy

1шт.

10

193291C1

SUPPORT

hydraulic reservoir

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

FITTING, refer to this group under hydrostatic motor, pump and header lift diagram

2шт.

12

ELBOW, charge pump suction, refer to this group under hydrostatic motor, pump and header lift diagram

1шт.

13

TANK ASSY, hydraulic oil, not serviced separately order, tank assy, 196824C91

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

oil lever sight glass

2шт.

15

244600R92

SIGHTGLASS

GLASS, oil level sight

2шт.

16

159752C1

SUPPORT

hydraulic reservoir clamp

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

27804R1

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

CLAMP, hyd reservoir, not illustrated

2шт.

17

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pln long pipe, breather extension

1шт.

18

111661

COUPLING,3/4" NPT

3/4 pln pipe, breather extension

1шт.

Выбрано товаров: 26
