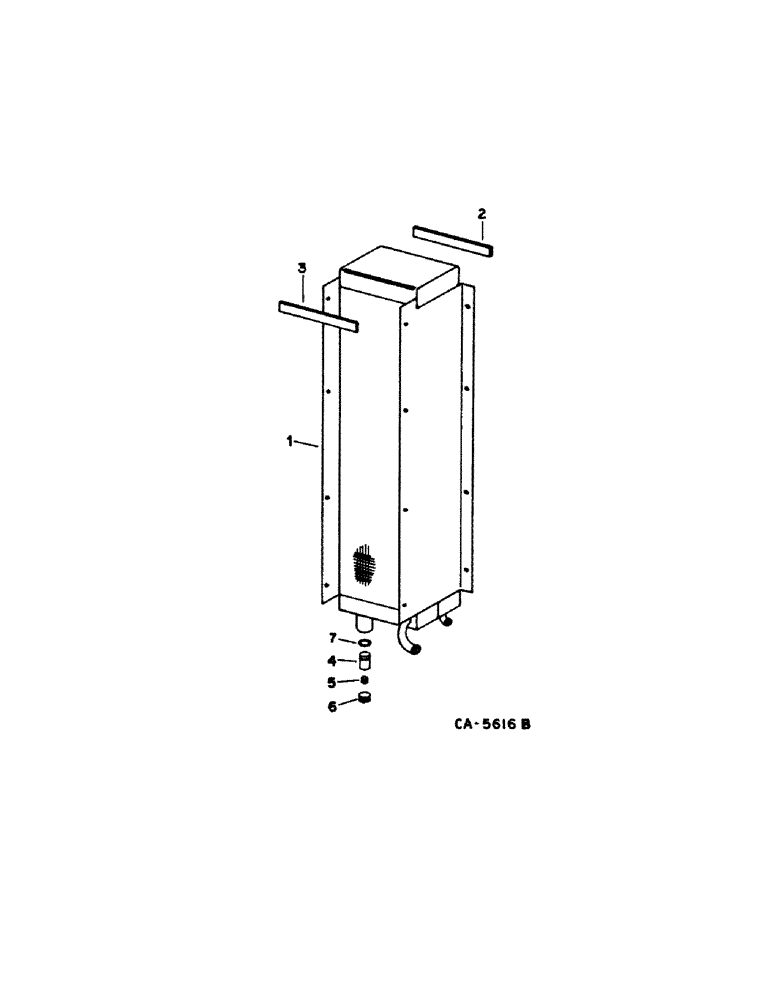

Запчасти Case IH 1480 (10-71[A]) - HYDRAULICS, OIL COOLER (07) - HYDRAULICS

1

64751C91

COOLER

COOLER ASSY, oil, Serial Range: -1500

1шт.

1

131041C92

COOLER ASSY.

COOLER ASSY, oil, includes ref nos. 4 thru 7, Start Serial: 1501

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

WASHER, .344 x .688 x .051 pln

1шт.

2

STRIP, sealing, use 6 in. from 4 ft. strip marked 73222C1

2шт.

3

188062C1

STRIP

STRIP, oil cooler

2шт.

4

61221C1

VALVE

VALVE, check, used with cooler, 64751C91

1шт.

4

146547C1

VALVE

VALVE, check, used with cooler, 131041C92

1шт.

5

61222C1

SPRING

SPRING, check valve

1шт.

6

444679

PLUG

PLUG, pipe

1шт.

7

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

O-RING

1шт.
