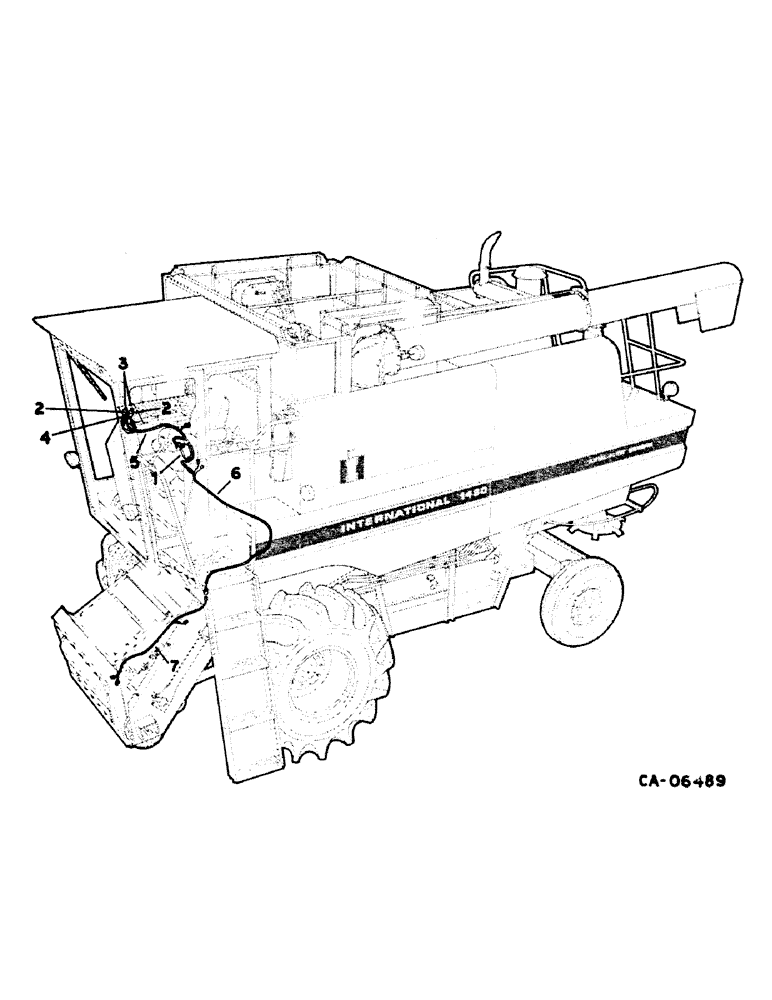

Запчасти Case IH 1480 (10-70) - HYDRAULICS, AUTOMATIC HEADER CONTROL, SERIAL NO. 24001 AND ABOVE (07) - HYDRAULICS

1

91479C91

CASE

PACKAGE, header height control, consists of module (NSS), instructions (NSS), mounting hardware

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

2

1301443C1

POTENTIOMETER

Harness Assembly, Control

2шт.

3

1301036C1

BUTTON

KNOB, potentiometer control

2шт.

4

1301004C1

SWITCH

ASSY, auto header control on-off

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

5

1301550C2

HARNESS

ASSY, header height control

1шт.

6

1301499C1

HARNESS

ASSY, operators platform

1шт.

7

1301500C1

HARNESS

ASSY, feeder

1шт.
