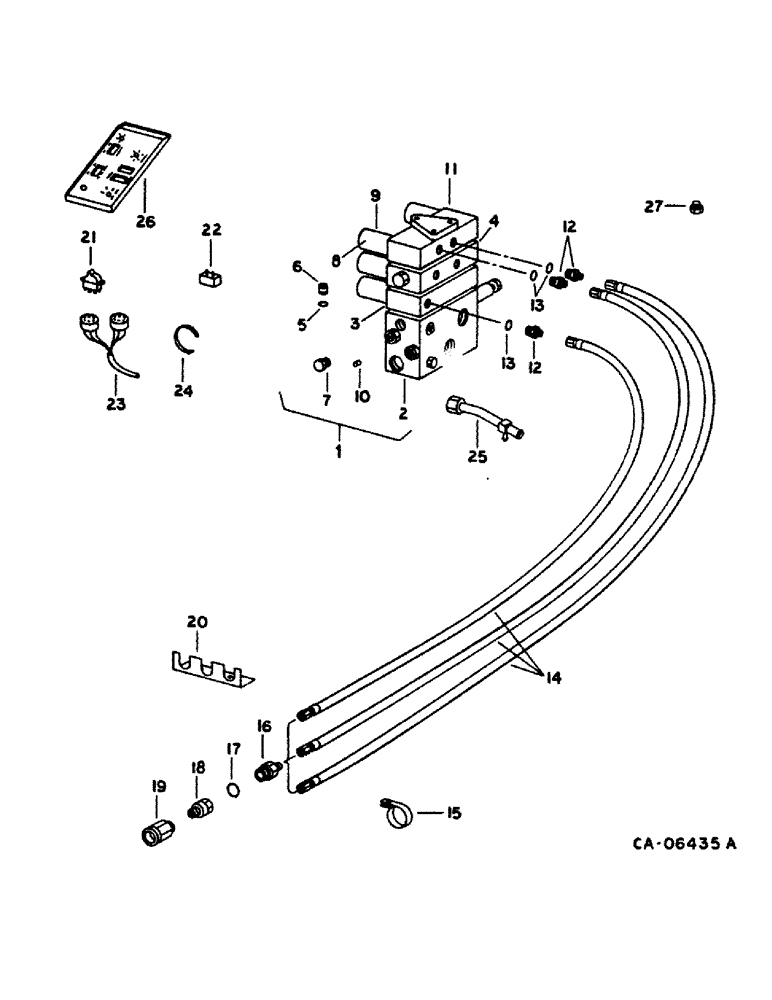

Запчасти Case IH 1480 (10-64) - HYDRAULICS, REEL SPEED CONTROL, FOR FRENCH 825 HEADERS, FOR COMBINE S/N 24001 AND ABOVE (07) - HYDRAULICS

1

VALVE ASSY, control, furnish individual valve assemblies as necessary, replaces 1301937C91

1шт.

2

1267036C92

VALVE

ASSY, header, replaces 1301681C91, refer to this group under header valve

1шт.

3

1301652C91

VALVE

ASSY, unload/single bi-directional, refer to this group under unload/single bi-directional valve

1шт.

4

1267035C92

VALVE

ASSY, double piloted, replaces 1301650C91, refer to this group under double piloted valve

1шт.

5

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 class 6

14шт.

6

1301630C1

TUBE

PISTON, thru

6шт.

7

1301634C1

VALVE

CAP, plug

2шт.

8

1301633C1

COIL

SWITCH

6шт.

9

1301632C1

CAP

coil

8шт.

107825

NUT,Stamped, 1/2"-20

1/2 NF C-Z stamped

1шт.

18668R1

BOLT,Hex, 1/4" - 20 x 6", Gr 2

1/4 x 6 type 1

1шт.

NLS

NO LONGER SERVICED

1/4 ext tooth lock

1шт.

10

1301637C1

ORIFICE

PLUG, orifice

2шт.

112432

NUT,#10-32, Brass

Machine screw #10-32, Brass

1шт.

11

VALVE ASSY, dual, refer to this group under dual valve assy

1шт.

12

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 hyd swivel

2шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

14

1301350C2

HYDRAULIC HOSE

HOSE ASSY, reel

3шт.

15

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1.875 dia. znd coated

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

51/6 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, hyd 5/8 to 3/8 sht

3шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

3шт.

18

3161090R1

COUPLING, BREAK AWAY

COUPLING, 7/8-14 hyd

3шт.

19

3177270R1

COUPLING, BREAK AWAY

COUPLING, hyd quick attach

3шт.

20

1301916C1

ANGLE

coupling support

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

1301920C1

SWITCH

ASSY, reel

2шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

1шт.

22

262965C91

BREAKER

circuit, replaces 928405C1

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

1301941C1

HARNESS

ASSY, reel control

1шт.

24

702093C1

CABLE TIE

STRAP, harness tie

3шт.

25

1310756C1

HYD TUBE,0.75, 0.5" OD, 198, 33 mm Length

TUBE ASSY, header lift and steering return

1шт.

26

1301940C3

COVER

extension

1шт.

27

9410361

PLUG

3/4 C-Z str thd o-ring boss

1шт.
