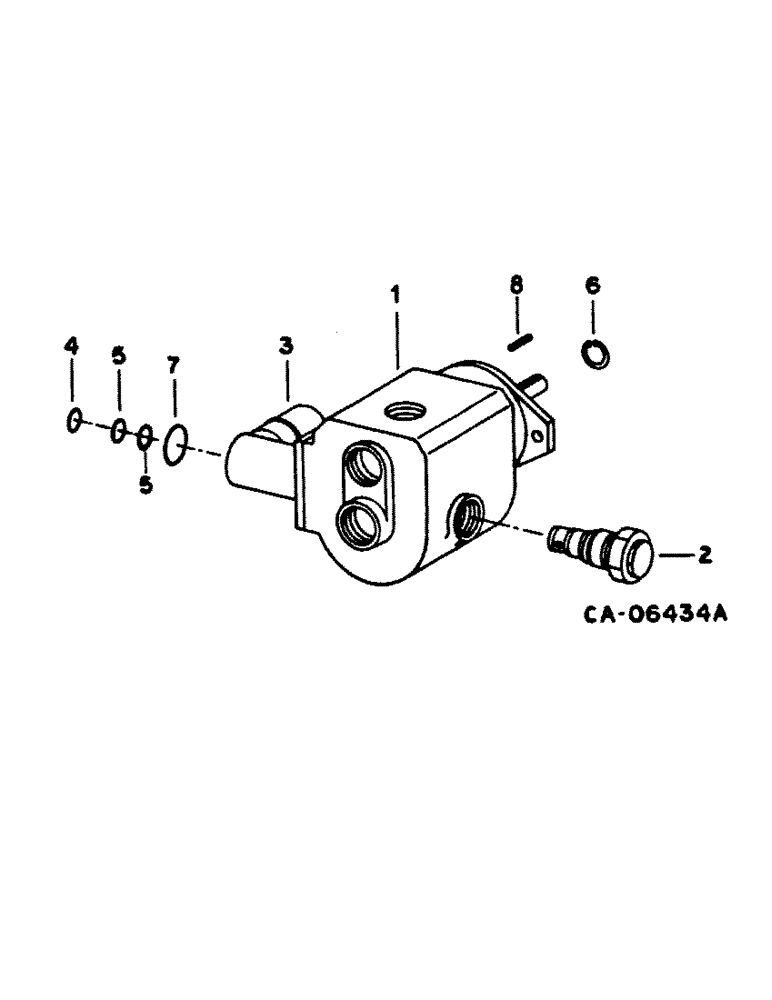

Запчасти Case IH 1480 (10-59) - HYDRAULICS, REEL DRIVE PUMP, ROSS, SERIAL NO. 24001 THRU 54000 (07) - HYDRAULICS

1

PUMP ASSY, reel drive, furnish kit, 1315475C91

1шт.

Ref #1 - Key for the shaft of the Reel Drive Pump is H233445.10/19/95

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

2

1301996C1

VALVE

ASSY, pump

1шт.

3

1301336C1

MOTOR, ELECTRIC

MOTOR ASSY, pump, includes ref nos. 4 and 5

1шт.

4

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

5

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 class 6

2шт.

6

273026R1

SNAP RING,1.375", Int, #137

RING, 1.526 int ret

1шт.

7

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 class 5

1шт.

8

474098R1

KEY,3/16" Sq x 1 1/4", Par

sq. parallel 3/16 x 1-1/4

1шт.

1301986C1

KIT

SEAL KIT, pump

1шт.

1315475C91

PACKAGE

KIT, reel pump service, consists of

1шт.

198409C2

SUPPORT

1шт.

1272633C91

HYDRAULIC PUMP,46.7 CC

PUMP

1шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 hex-hd flange

2шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 flange lock

2шт.

1282383C1

FITTING,1-5/8" - 12 ORB x

CONNECTOR, 1-5/8-12 x 1 in. flared

1шт.

Ref#8, Description for the P/N 1282383C1 Connector should be Beaded, not Flared.

1шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-1/4 OD tube

1шт.

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

3/4 to 5/8 adj.

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

pump to flow divider

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

1315461C1

BRACKET

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 hex-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

1282369C91

VALVE

reel drive

1шт.

180735

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16 x 3-1/4

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D.

1шт.

P/N 193252C1, pulley is 7" o.d.

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8 x 3/4 set

2шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 jam, instructions (NSS)

2шт.
