Запчасти Case IH 1480 (10-59[1]) - REEL DRIVE PUMP CESSNA SERIAL NO. 54001 AND ABOVE (07) - HYDRAULICS

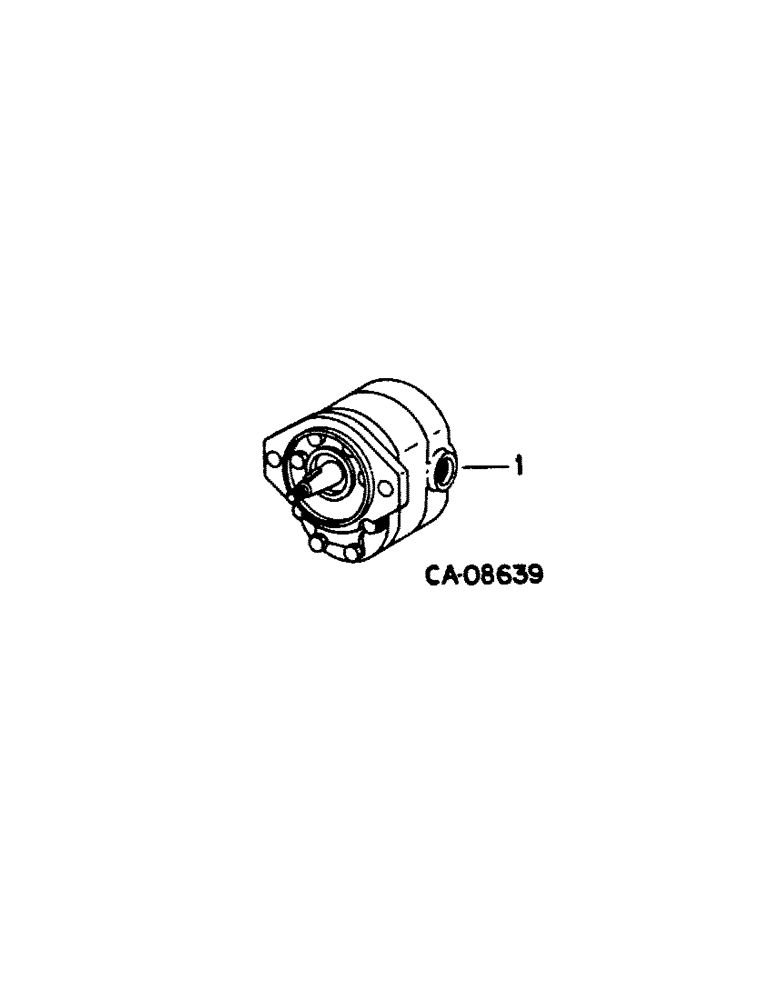

Схема запчастей Case IH 1480 - (10-59[1]) - REEL DRIVE PUMP CESSNA SERIAL NO. 54001 AND ABOVE (07) - HYDRAULICS
1

Артикул

Название

Примечание

Количество

1

1272633C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSY, reel drive, replaces 187872C91

1шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 hex-hd flange

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 flange lock

1шт.

92586C1

SEAL KIT

KIT, seal, consists of (2) o-rings (NSS), wear plate (NSS), bearing seal (NSS), molded o-ring (NSS), back-up gasket (NSS), shaft seal (NSS), washer (NSS), retaining ring (NSS)

1шт.

Выбрано товаров: 4
