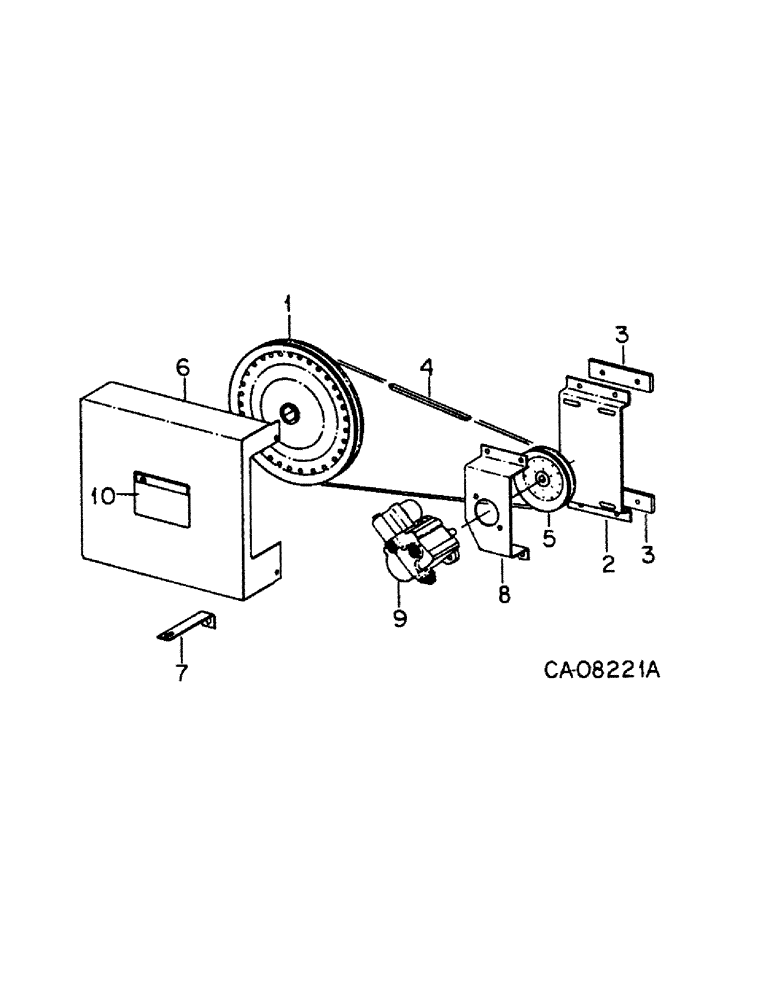

Запчасти Case IH 1480 (10-58) - HYDRAULICS, HYDRAULIC REEL DRIVE, W/ROCK TRAP AND/OR FEEDER REVERSER SEPARATOR PARTS (07) - HYDRAULICS

1

1320206C2

PULLEY

ASSY, drive

1шт.

2

1320135C1

SUPPORT

reel drive

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

1320195C2

BAR

reel drive

2шт.

4

1315315C1

V-BELT,22.33mm W x 1868.69mm L

Pump Drive, 22.33 mm W x 1868.69 mm L

1шт.

5

187697C1

PULLEY ASSY.

PULLEY ASSY, pump driven, 7.13 in. OD x 3/4 in bore, Serial Range: -54000

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 znp sq/hd C/PT set

1шт.

5

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D., Start Serial: 54001

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8 x 7/8 znp sq/hd C/PT set

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

6

1320607C91

SHIELD

ASSY, rock trap drive, machines w/o feeder reverser, includes ref. no. 10

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

7

189466C1

SUPPORT

BRACKET, shield support, machines w/o feeder reverser

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

187698C1

SUPPORT

drive pump, Serial Range: -54000

1шт.

8

198409C2

SUPPORT

drive pump, Start Serial: 54001

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

9

PUMP ASSY, reel drive, refer to this group under reel drive pump, Ross or Cessna

1шт.

10

1320694C1

DECAL

PRODUCT GRAPHIC, danger

2шт.
