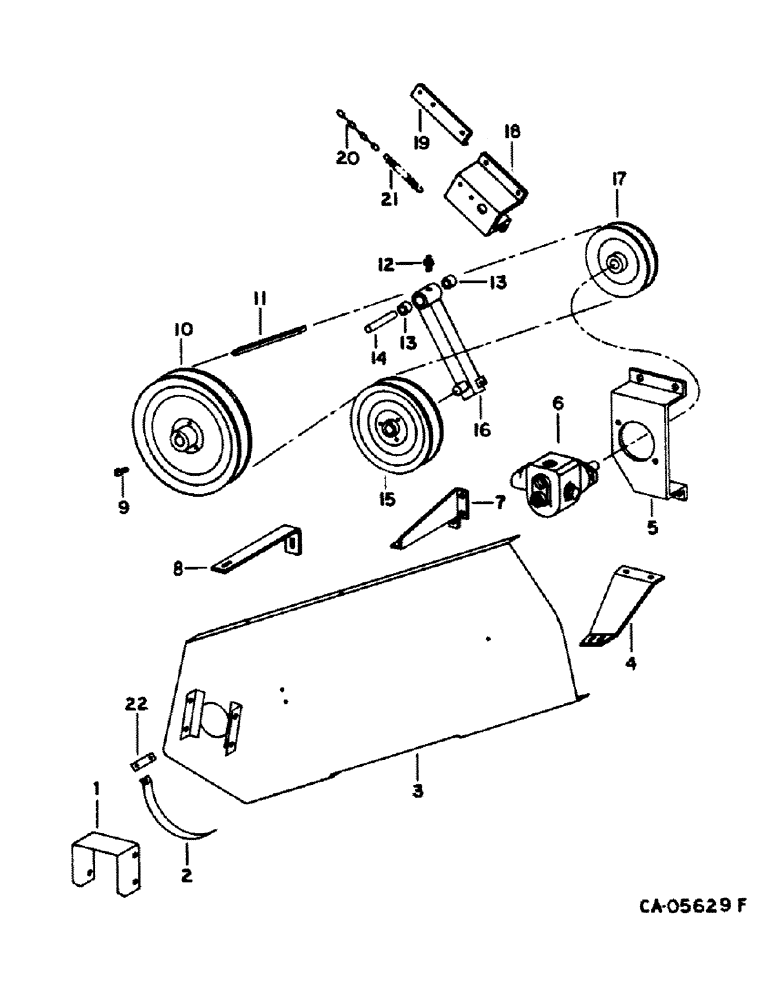

Запчасти Case IH 1480 (10-56) - HYDRAULICS, HYDRAULIC REEL DRIVE, W/O ROCK TRAP OR FEEDER REVERSER SEPARATOR PARTS (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
189730C1
SHIELD
CHANNEL, feeder jackshaft LH
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4-20 x 1/2 slt-truss-hd
1шт.
2
189470C1
SUPPORT
shield upper LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
3
189460C3
SHIELD
ASSY, pump drive, for 54.5 in. feeder
1шт.
3
189521C3
GUARD
SHIELD ASSY, pump drive, for 60 in. feeder
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
4
189469C1
SUPPORT
shield lower rear, for 54.5 in. feeder
1шт.
4
189467C1
BRACKET
SUPPORT, shield lower rear, for 60 in. feeder
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
5
198409C2
SUPPORT
reel drive pump, Serial Range: -24000
1шт.
5
198409C2
SUPPORT
reel drive pump, Start Serial: 54001
1шт.
5
187698C1
SUPPORT
reel drive pump, Serial Range: 24001-54000
1шт.
154273C1
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
SCREW, 3/8-16 x 1 lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
6
198381C92
PUMP
ASSY, reel drive, Cessna, Serial Range: -24000
1шт.
67055C1
SEAL KIT
ASSY, seal repair
1шт.
6
198382C91
PUMP
ASSY, reel drive, Webster, Serial Range: -24000
1шт.
187918C1
KIT
ASSY, seal repair
1шт.
6
PUMP ASSY, reel drive, Ross, refer to this group under reel drive pump, Ross, Serial Range: 24001-54000
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
6
PUMP ASSY, reel drive, Cessna, refer to this group under reel drive pump, Cessna, Start Serial: 54001
1шт.
540858R1
BOLT,Hex Serr, 1/2" - 13 x 1 1/2"
1/2 x 1-1/2 hex-hd flange
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 PHC flange lock type 8
1шт.
7
189466C1
SUPPORT
shield upper rear
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
8
189464C2
SUPPORT
shield upper front
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
25710R1
WASHER
.531 x 1.062 x .134 HDN
1шт.
9
Q1497
KEY,Gib, 3/8" Sq x 2"
3/8 x 2 square-gib hd tapered
1шт.
10
176562C2
PULLEY
feeder jackshaft pump drive, 13.5 in. O.D., 342.9mm OD
1шт.
11
197414C2
BELT,22.33 mm W x 3706.69 mm L
V-BELT , Hydraulic reel drive, OC, for 54.5 in. feeder 22.33 mm W x 3706.69 mm L
1шт.
11
197480C2
BELT,22.33 mm W x 3990.69 mm L
V-BELT , Hydraulic reel drive, for 60 in. feeder, OC 22.33 mm W x 3990.69 mm L
1шт.
12
87414
LUBE NIPPLE,1/4" - 28
FITTING, 1/4-28 str self-tapping
1шт.
13
583346R1
BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L
tightener arm
2шт.
14
198410C1
SPACER
tightener arm
1шт.
195313C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 PHC flange lock type 8
1шт.
271731
SHAFT,Hex, 5/8" - 11 x 4", Gr 5
5/8 x 4 type 5
1шт.
21782R1
WASHER
.656 x 1.500 x .054
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
1шт.
20704R1
WASHER
1.031 x 1.500 x .105
1шт.
15
674966R91
PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W
ASSY, belt idler, 8.75 in. O.D., 222.3mm OD
1шт.
18830R1
BOLT,Hex, 5/8"-11 x 5", G2
5/8 x 5 type 1
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8 type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
21471R1
WASHER
.656 x 1.000 x .105
1шт.
16
195528C92
ARM
LEVER ASSY, tightener, includes ref no. 13
1шт.
25932R1
JAM NUT,Jam, 3/8"-16, G5
3/8 PHC jam type 8
1шт.
126156
SET SCREW,Sq Hd, 3/8"-16 x 7/8"
SCREW, 3/8 x 3/4 sq/hd C/PT set
1шт.
17
187697C1
PULLEY ASSY.
PULLEY ASSY, pump driven, 7.13 in. OD x 3/4 in bore, Serial Range: 24001-54000
1шт.
107327
SET SCREW,Sq Hd, 5/16"-18 x 1"
SCREW, 5/16 x 1 sq/hd C/PT set
1шт.
124824
NUT,Hex, 5/16" - 18
5/16 jam type 5
1шт.
126156
SET SCREW,Sq Hd, 3/8"-16 x 7/8"
SCREW, 3/8 x 3/4 sq/hd C/PT set
1шт.
25932R1
JAM NUT,Jam, 3/8"-16, G5
3/8 PHC jam type 8
1шт.
18
195527C1
SUPPORT
pivot anchor
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1 crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
25710R1
WASHER
.531 x 1.062 x .134 HDN
1шт.
19
195531C1
SUPPORT
spring anchor
1шт.
541313R1
BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"
SCREW, 3/8 x 3/4 hex-hd flange
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
20
167570C1
CHAIN,203.2mm L
reel drive idler pulley arm
1шт.
18655R1
BOLT,Hex, 1/4"-20 x 1", G2
1/4 x 1 type 1
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
25707R1
WASHER,.281" x 5/8" x .075", HDN
.281 x .625 x .072 HDN
1шт.
21
NLS
NO LONGER SERVICED
reel drive idler pulley arm tightener
1шт.
22
203672C1
SUPPORT
BAR, shield support
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
67055C1
SEAL KIT
seal repair, for pump 198381C92, consists of gasket, back-up (NSS), plate, thrust (NSS), gasket, protector (NSS), diaphragm, seal (NSS), (2) o-ring 3/32 x 5 in. ID (NSS), ring, retaining (NSS), (2) ball, steel (NSS), (2) spring (NSS), seal, shaft (NSS), w
1шт.
187918C1
KIT
seal repair, for pump 198382C91, consists of seal, oil (NSS), (2) plate, wear (NSS), (2) seal, pre-load (NSS), (2) seal, load (NSS), (2) seal, ring (NSS)
1шт.
Выбрано товаров: 85
