Запчасти Case IH 1480 (10-51) - HYD, HEADER VALVE, FEEDER CLUTCH, HEADER LIFT, SEPERATOR CLUTCH & STEERING, S/N 24001 AND ABOVE (07) - HYDRAULICS

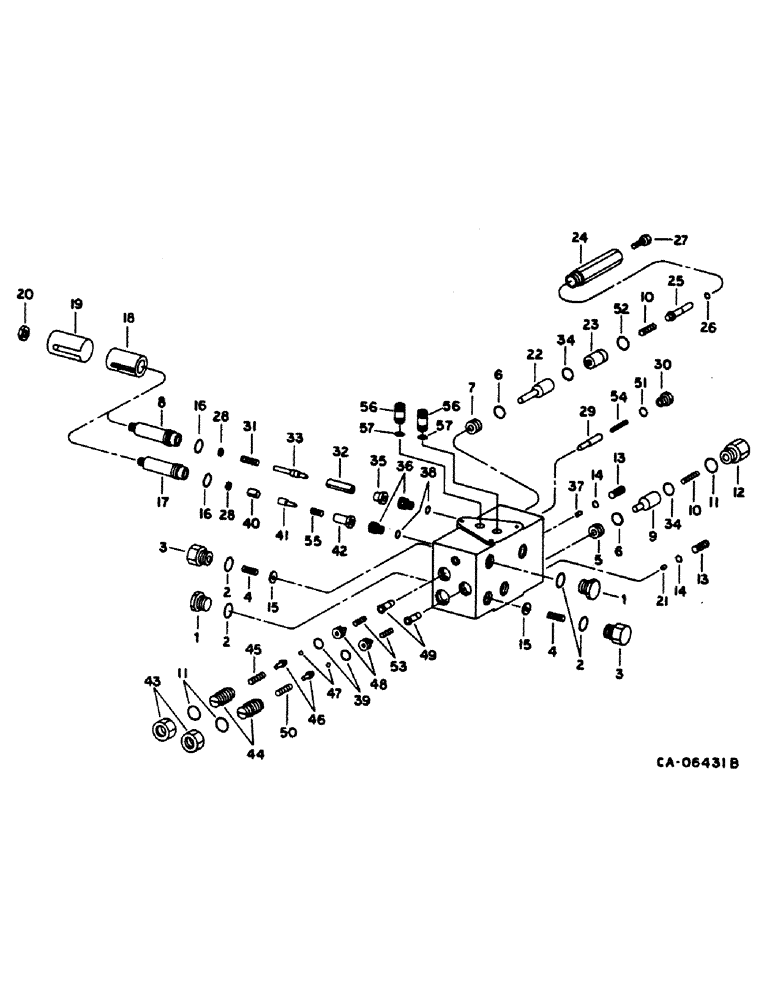

Схема запчастей Case IH 1480 - (10-51) - HYD, HEADER VALVE, FEEDER CLUTCH, HEADER LIFT, SEPERATOR CLUTCH & STEERING, S/N 24001 AND ABOVE (07) - HYDRAULICS
6
37
13
23
21
31
34
38
51
11
4
54
44
56
30
36
33
13
32
15
3
6
25
40
27
3
29
5
10
48
28
2
45
18
55
46
16
19
47
52
34
57
43
2
9
35
53
39
14
11
49
24
41
50
1
4
1
56
12
26
7
57
42
14
2
8
16
15
20
22
28
17
10

Артикул

Название

Примечание

Количество

1267036C92

VALVE

ASSY, header, replaces 1301681C91, includes ref nos. 1 thru 17 and 21 thru 55

1шт.

1

1301653C1

PLUG,3/4" - 16 x 9.50mm

PLUG, end

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 in. OD tube class 6

4шт.

3

1301253C1

ELBOW

PLUG, end, used with valve 1301681C91

2шт.

3

1272253C1

PLUG

end, used with valve 1267036C91

2шт.

4

1301656C1

SPRING

used with valve 1301681C91

2шт.

4

1272254C1

SPRING

used with valve 1267036C91

2шт.

5

1301657C1

PISTON

flow

1шт.

6

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 class 6

2шт.

7

1301658C1

PISTON

flow

1шт.

8

1301627C1

STUD

ASSY, N.C.

1шт.

9

1301659C1

PIN

1шт.

10

1301660C1

SPRING

2шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

4шт.

12

1301661C1

PLUG

hex-hd end

1шт.

13

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

STUD, seal

2шт.

14

529909R1

O-RING,1.78mm Thk x 2.54mm ID

2шт.

15

1301662C1

WASHER

damping

2шт.

16

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 class 6

2шт.

17

1301641C1

STUD

ASSY, N.O.

1шт.

18

1301730C1

VALVE

SWITCH

2шт.

19

1301632C1

CAP

coil

2шт.

20

107825

NUT,Stamped, 1/2"-20

1/2-NV CAD stamped

1шт.

21

1301649C1

PLUG

PLUG, orifice

1шт.

22

1301664C1

VALVE

PIN, lower

1шт.

23

1301665C1

PISTON

1шт.

24

1301666C1

PLUG

adjusting

1шт.

25

1301667C1

PIN

adjusting

1шт.

26

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1/8 x 1/4 class 6 (Replaces 21584R1)

1шт.

27

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

28

1301642C1

WASHER

2шт.

29

1301668C2

SPOOL

PIN, check valve

1шт.

Ref #29, See SB 23-87 Check Valve Poppetidentification.

1шт.

30

1301669C1

PLUG

7/16-20

1шт.

31

1301640C1

SPRING

1шт.

32

1301648C1

ARMATURE

BUSHING, N.C.

1шт.

33

1301647C1

POPPET

PIN, bi-direct

1шт.

34

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 class 5

2шт.

35

1301624C1

BUSHING

N.C. pole

1шт.

36

1301625C1

ORIFICE

PISTON, 2 used with valve 1301681C91, 1 used with valve 1267036C91

1шт.

36

1301639C1

PISTON

orifice, 1 used with valve 1267036C91

1шт.

37

1301671C1

PLUG

orifice

1шт.

38

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

2шт.

39

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 class 6

2шт.

40

1301672C1

PIN

N.O. armature, used with valve 1301681C91

1шт.

40

1301643C1

VALVE

PIN, N.O. armature, used with valve 1267036C91

1шт.

41

1301644C1

PIN

N.O., Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

42

1301646C1

BUSHING

N.O. pole

1шт.

43

1301674C1

NUT

1 in. hex

2шт.

44

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

STUD

2шт.

45

1301676C1

SPRING

used with valve 1301681C91

1шт.

45

1272403C1

SPRING

used with valve 1267036C91

1шт.

46

1301677C1

PIN

spring guide

2шт.

47

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

2шт.

48

1301654C1

NUT

2шт.

49

1301678C1

VALVE

PISTON, relief valve

2шт.

50

1301636C1

SPRING

1шт.

51

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

52

370920R1

O-RING,1/2" ID

1/2 x 5/8 class 5

1шт.

53

1301679C1

SPRING

2шт.

54

1301729C1

SPRING

1шт.

55

1301821C1

SPRING

1шт.

56

1301630C1

TUBE

thru

2шт.

57

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 class 6

2шт.

1282279C1

SEAL KIT

KIT, o-ring repair, consists of (4) o-ring (NSS), (2) o-ring (NSS), (4) o-ring (NSS), (2) o-ring (NSS), (2) o-ring (NSS), o-ring (NSS), (2) o-ring (NSS), (2) o-ring (NSS), (2) o-ring (NSS), o-ring (NSS), o-ring (NSS)

1шт.

530575R91

SHIM KIT

PACKAGE, relief valve shim, consists of (4) shim .005 (NSS), (4) shim .007 (NSS), (2) shim .020 (NSS), shim .042 in. (NSS)

1шт.

Выбрано товаров: 67
