Запчасти Case IH 1480 (10-50[1]) - FOOT-N-INCH VALVE (07) - HYDRAULICS

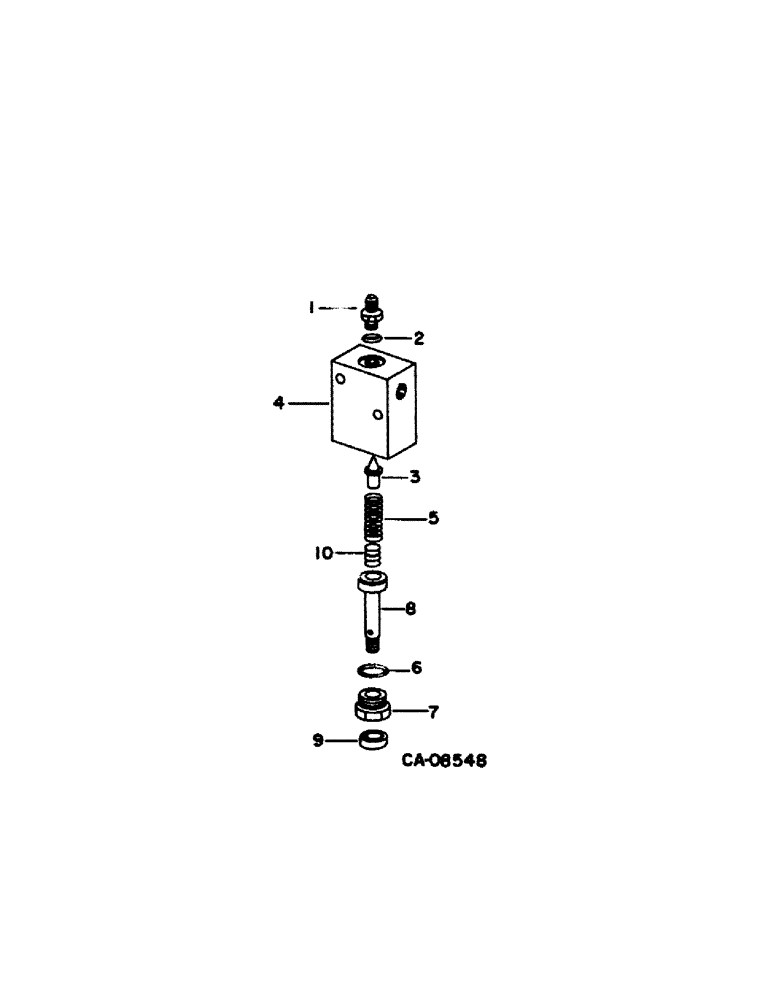

Схема запчастей Case IH 1480 - (10-50[1]) - FOOT-N-INCH VALVE (07) - HYDRAULICS
9
7
10
8
3
2
6
4
5
1

Артикул

Название

Примечание

Количество

1

398709R1

SEAT

poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6, Valve seat

1шт.

3

398710R1

VALVE POPPET

VALVE, poppet

1шт.

4

BODY, valve, not serviced separately, order valve assy, 398705R91

1шт.

5

398731R1

SPRING

valve

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

398707R1

GUIDE

valve spring stop

1шт.

8

398708R1

STOP

valve

1шт.

9

398701R1

SEAL

oil

1шт.

10

530575R91

SHIM KIT

PACKAGE, relief valve shim, consists of (4) shim .005 (NSS), (4) shim .007 (NSS), (2) shim .020 (NSS), shim .042 (NSS)

1шт.

Выбрано товаров: 10
