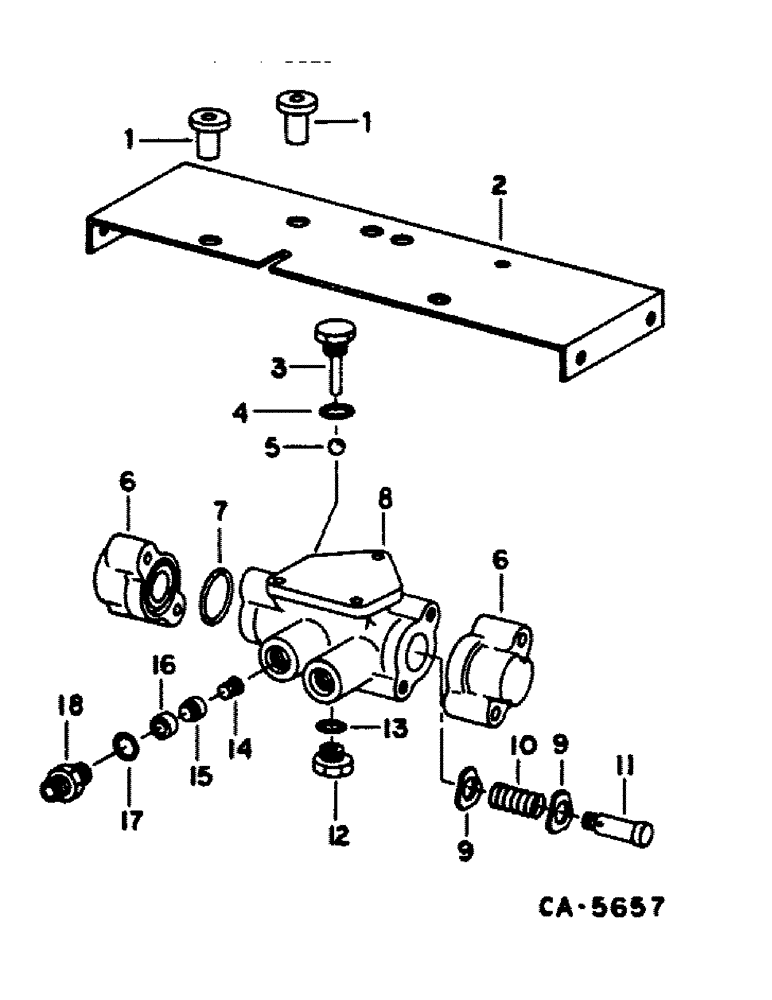

Запчасти Case IH 1480 (10-48) - HYDRAULICS, STEERING VALVE, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS

180590C91

VALVE

ASSY, steering, includes ref. nos. 3 thru 18

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

1

198374C1

NUT

well 3/8

2шт.

2

193259C1

SUPPORT

multi control valve

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

379901R91

PLUG

ASSY

1шт.

4

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

5

17008R1

BALL,1/4" Dia

1шт.

6

379894R1

CAP

end

2шт.

7

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap

2шт.

8

BODY ASSY, not serviced separately order valve assy, 180590C91

1шт.

9

379897R1

WASHER

centering screw

2шт.

10

395754R1

SPRING

valve centering

1шт.

11

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

12

9410357

PLUG

o-ring boss

1шт.

13

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Boss plug

1шт.

14

382125R1

SPRING

1шт.

15

527494R1

VALVE

check

1шт.

16

527495R1

DISC

SEAT, check valve

1шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, union

1шт.

18

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 3/8 in.

1шт.

379793R91

O-RING

KIT ASSY, repair

1шт.
